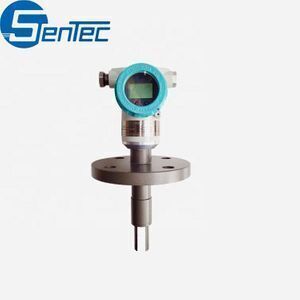

SPX504 Insertion Slurry Liquid Water Tuning Fork Density Meter
-
Supplier: Chengdu Sentec Technology Co., Ltd. -
Region: Sichuan, China -
Contact: Ms Fancy Lee -
Price: $1300.00 / >=2 pieces -
Min. Order: 2 pieces
| Brand Name: | SENTEC; | Product Name: | Tuning Fork Position Switch; |
| Model Number: | SPX504; | Built-in temperature sensor: | Digital sensors; |
| Place of Origin: | China; | Temperature coefficient: | Less than 0.1 kg/m3/C (after correction); |
| Single package size: | 20X10X10 cm; | Type: | Tuning Fork Density Meter; |
| Single gross weight: | 5 KG; | Operating temperature range: | -50℃ ~ +200℃; |
| Application: | density meter; | Measure range: | 0.5~2.5g /cc(500~2500kg/m3); |
| Output signal: | 4 -20 mA,0-1000Hz,RS485 Modbus RTU; | Power supply: | 24VDC,≥50 mA; |
| Selling Units: | Single item; | Package Type: | Carton box SPX504 Tuning fork resonant density meter; |
| Keywords: | tuning fork density meter; | Maximum working pressure: | 207 bar (3000 psi); |

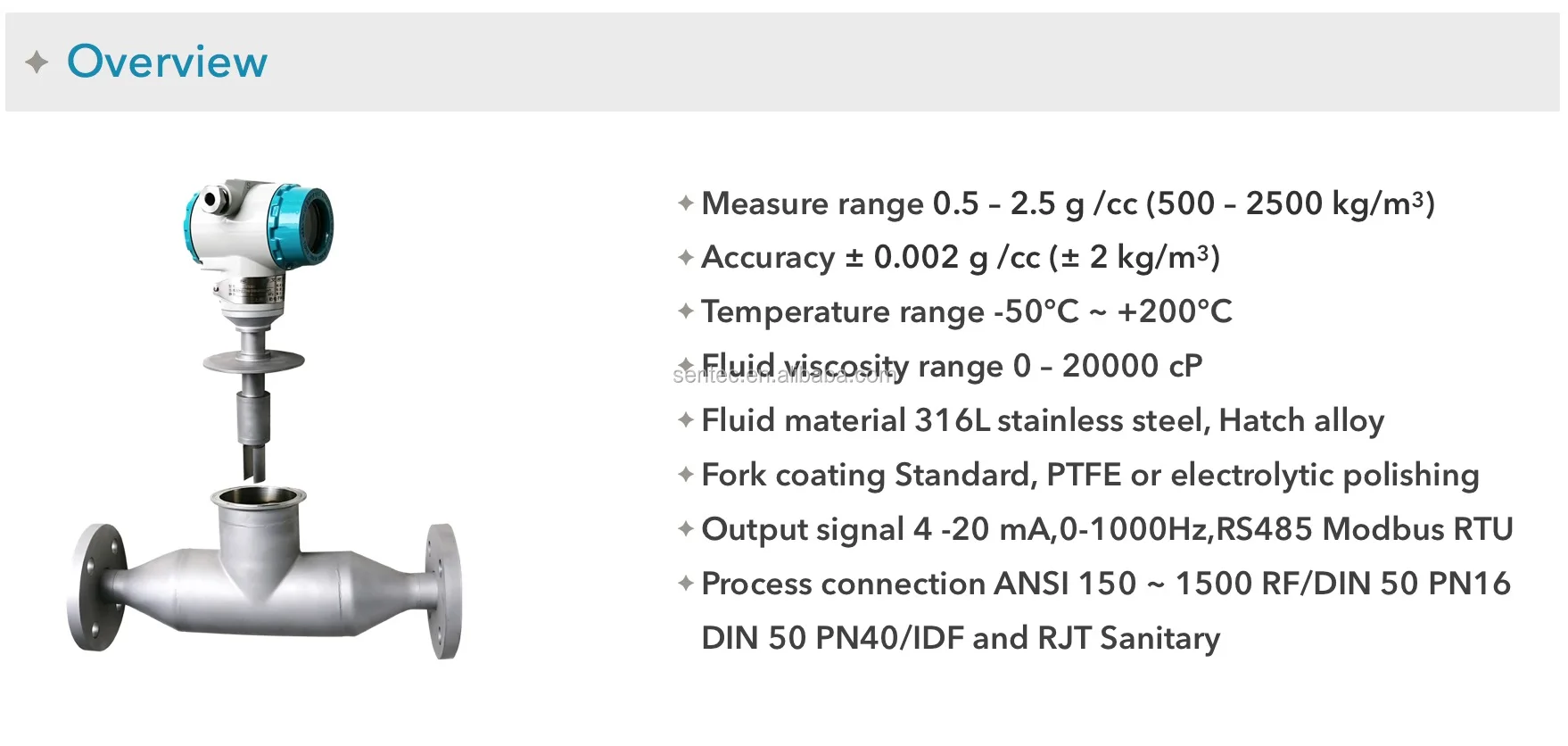

Measuring range | 0.5 – 2.5 g /cc (500 – 2500 kg/m3) |
Calibration range | 0.5 – 2.5 g /cc (500 – 2500 kg/m3) |
measurement accuracy | ± 0.002 g /cc (± 2 kg/m3) |
Repeatability | ± 0.0002 g /cc (± 0.2 kg/m3) |
Operating temperature range | -50℃ ~ +200℃ |
Maximum working pressure | 207 bar (3000 psi) |
Fluid viscosity range | 0 – 20000 cP |
Temperature Coefficient | Less than 0.1 kg/m3/°C (after correction) |
Pressure effect | Negligible |
Built-in temperature sensor | Digital sensor |
Wetted material | 316L stainless steel Hastelloy |
Fork body coating | Standard type, PTFE or electrolytic polishing |
Power supply | 24VDC, ≥50 mA |
Analog signal output | 4 -20 mA,0-1000Hz,RS485 Modbus RTU |
Output accuracy (20 ° C) | ± 0.1% of reading or ± 0.05% FS |
Output repeatability (-40 ~ +85 ° C) | ± 0.05% FS |
Process connection | ANSI 150 ~ 1500 RF DIN 50 PN16 DIN 50 PN40 IDF and RJT Hygienic |
Protection level | IP65 |
shell | Aluminum alloy |
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory.
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance
Q: How to contact you?
A: Email: sales01 at cdsentec.com, +86018848456685(Tel/Wechat/Whatsapp)
-
