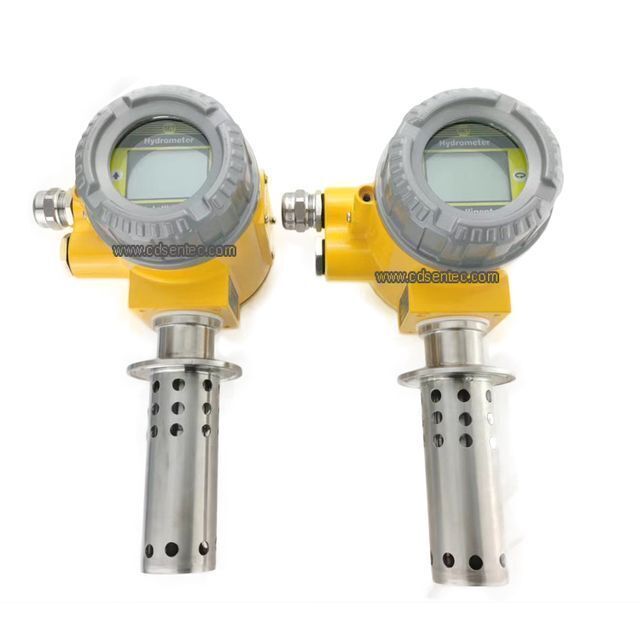

SPX504 Low Price Digital Hydrometer Acid Slurry Liquid Densitometer

Supplier: Chengdu Sentec Technology Co., Ltd.
Region: Sichuan, China
Contact: Ms Fancy Lee
Price: $1695.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Type:	Tuning Fork Density Meter;	Maximum working pressure:	207 bar (3000 psi);
Application:	density meter;	Product Name:	Tuning Fork Position Switch;
Certification:	CE;	Brand Name:	SENTEC;
Power supply:	24VDC,≥50 mA;	Selling Units:	Single item;
Keywords:	tuning fork density meter;	Operating temperature range:	-50℃ ~ +200℃;
Measure range:	0.5~2.5g /cc(500~2500kg/m3);	Model Number:	SPX504;
Single package size:	20X10X10 cm;	Customized support:	OEM,ODM;
Place of Origin:	Sichuan China;	Output signal:	4 -20 mA,0-1000Hz,RS485 Modbus RTU;
Single gross weight:	5.0 KG;	Temperature coefficient:	Less than 0.1 kg/m3/C (after correction);
Warranty:	12 month;	Built-in temperature sensor:	Digital sensors;
Packaging Detail:	Carton box SPX504 Tuning fork resonant density meter;

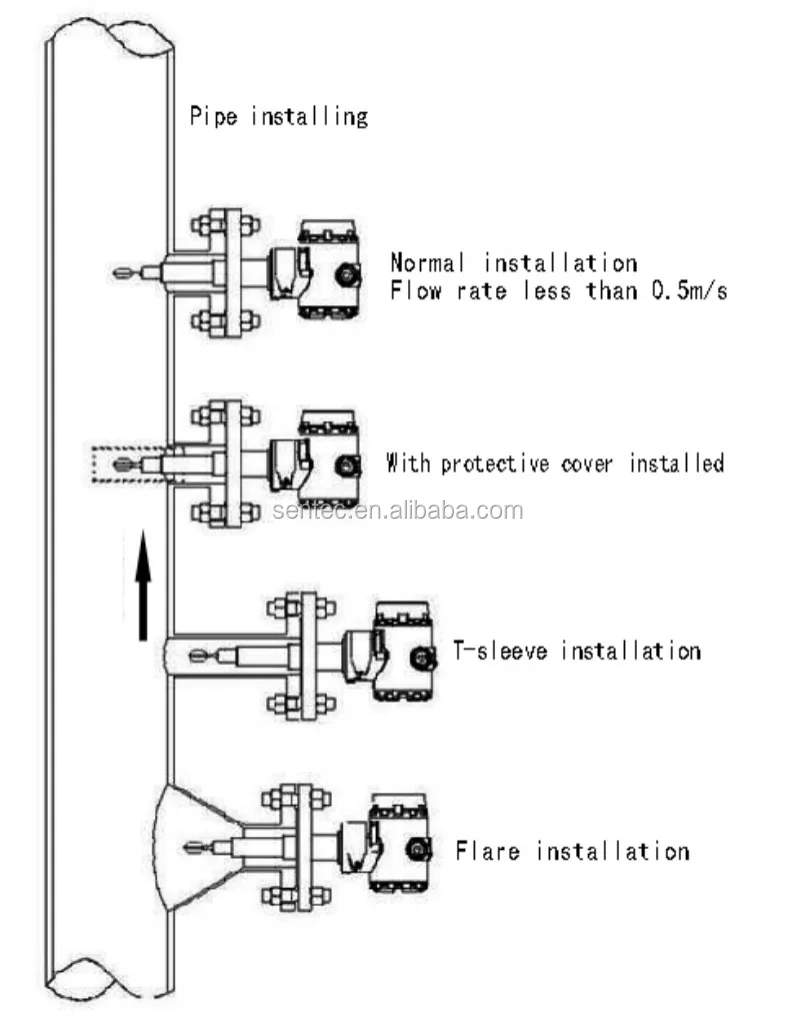

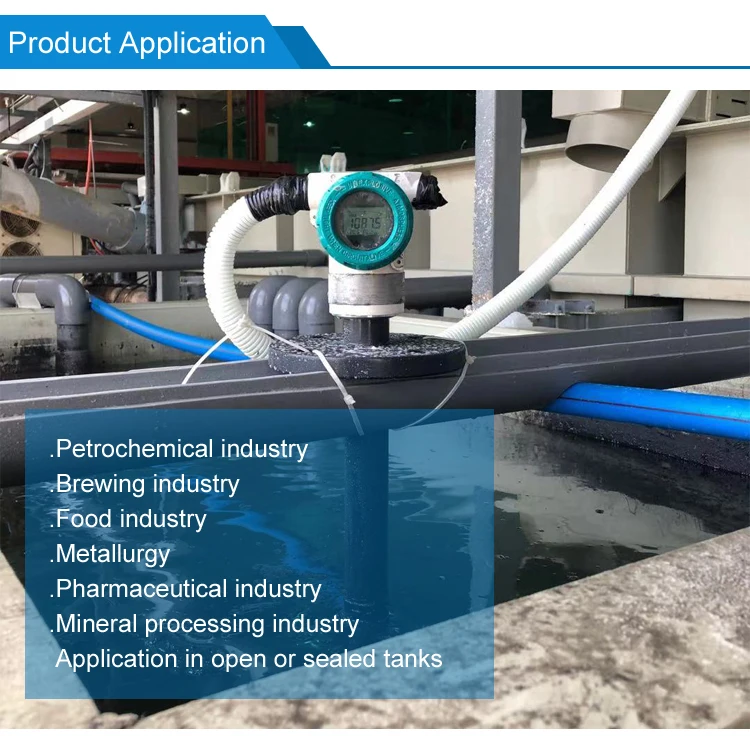

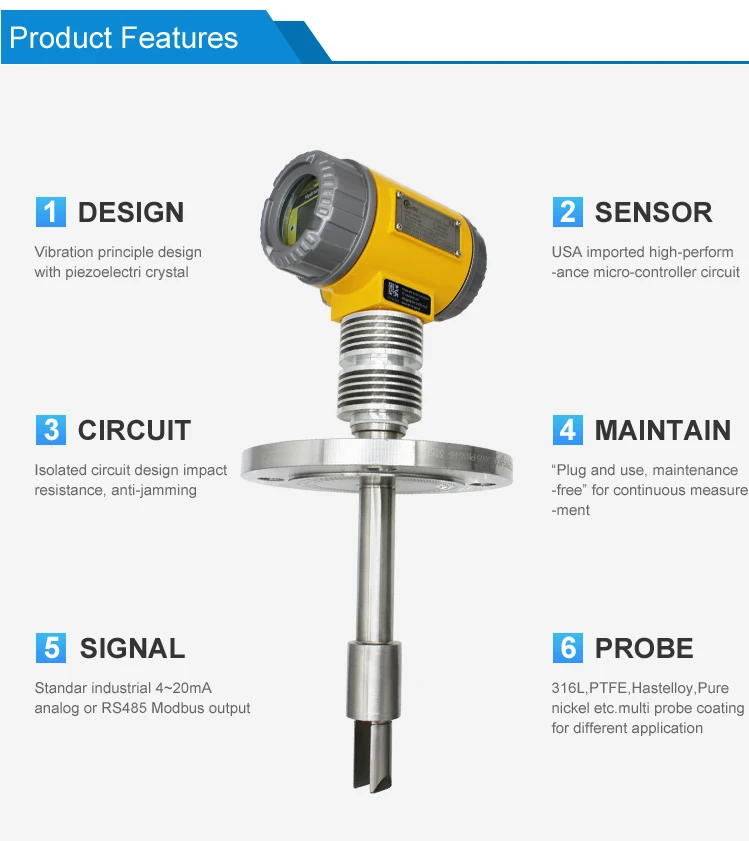

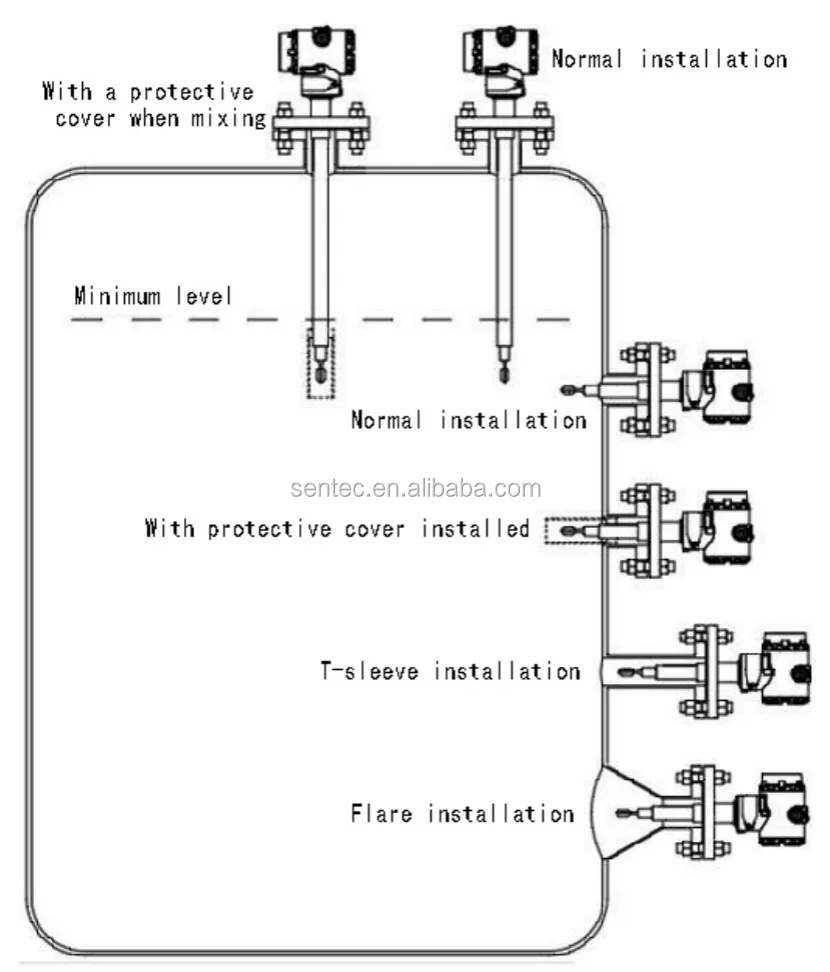

SPX504 tuning fork densitometer is installed by plug-in type, which is widely applicable to the detection of medium density in pipeline, open tank container and closed tank container. The ﬂuid density directly depends on the vibration frequency received by the tuning fork when the sensor is inserted into the medium. The built-in temperature sensor provides temperature compensation for the sensor. Application: petrochemical industry, brewing industry, food industry, pharmaceutical industry and mineral processing (such as clay, carbonate, silicate, etc.), speciﬁcally applied to the interface detection of multi product pipeline in the above industries, density detection of mixing mixture, end point monitoring of reactor, interface detection of separator.

Measuring range	0.5 – 2.5 g /cc (500 – 2500 kg/m3)
Calibration range	0.5 – 2.5 g /cc (500 – 2500 kg/m3)
measurement accuracy	± 0.002 g /cc (± 2 kg/m3)
Repeatability	± 0.0002 g /cc (± 0.2 kg/m3)
Operating temperature range	-50℃ ~ +200℃
Maximum working pressure	207 bar (3000 psi)
Fluid viscosity range	0 – 20000 cP
Temperature Coefficient	Less than 0.1 kg/m3/°C (after correction)
Pressure effect	Negligible
Built-in temperature sensor	Digital sensor

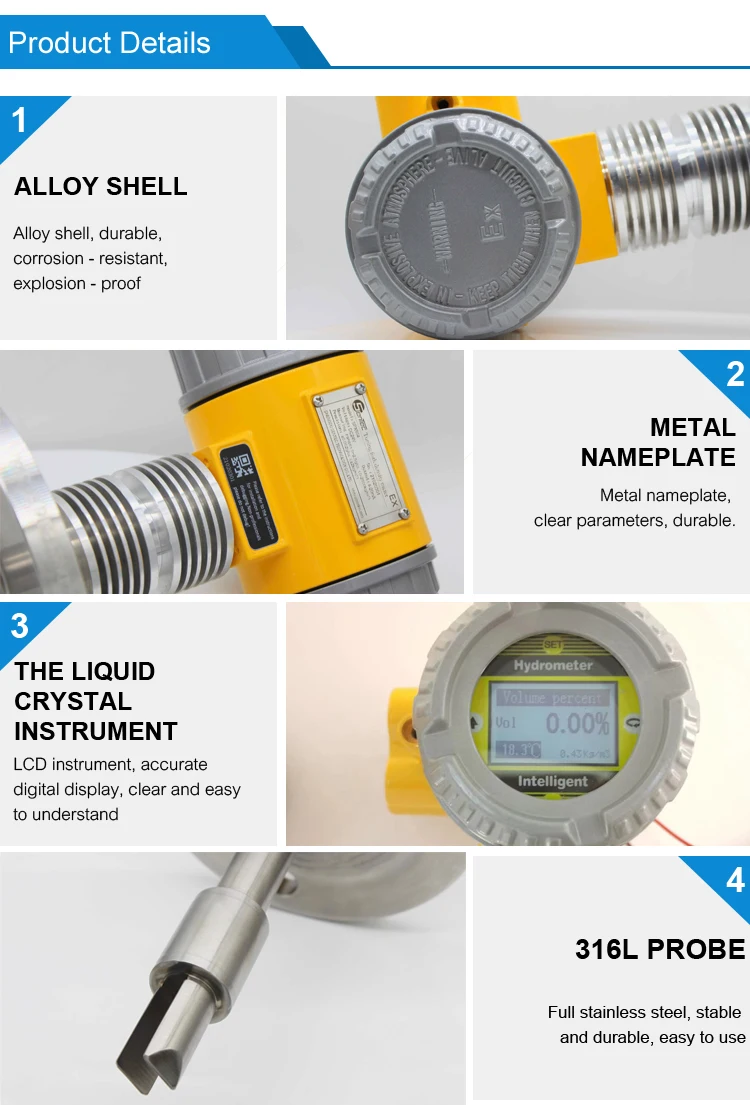

Wetted material	316L stainless steel Hastelloy
Fork body coating	Standard type, PTFE or electrolytic polishing
Power supply	24VDC, ≥50 mA
Analog signal output	4 -20 mA,0-1000Hz,RS485 Modbus RTU
Output accuracy (20 ° C)	± 0.1% of reading or ± 0.05% FS
Output repeatability (-40 ~ +85 ° C)	± 0.05% FS

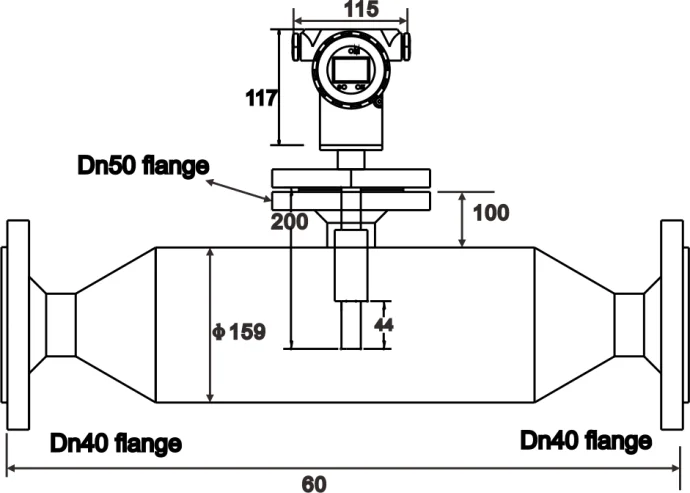

Process connection	ANSI 150 ~ 1500 RF DIN 50 PN16 DIN 50 PN40 IDF and RJT Hygienic
Protection level	IP65
shell	Aluminum alloy
