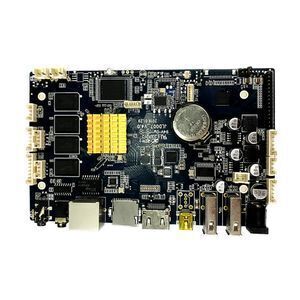

Amlogic s812 2GHz 1080P and 4K controller board for LCD Screen / Advertising Player / Entrance Guard

Product details
Copper Thickness:1OZ;Infrared remote control:Support;
Board Thickness:1.2mm;PCB size:138mm x 86.5mm;
Model Number:JLD007;Place of Origin:China;
Supply Ability:10000 Piece/Pieces per Month;Min. Hole Size:8mil;
Decoding:Support VP6/8 HTML5 and FLASH5 decoding;Video output:The highest resolution 3840x2160;
Payment Terms:L/C,D/A,D/P,T/T,Paypal;Number of Layers:4-Layer;
Surface Finishing:ENIG;GPU:mali450mp6;
Min. Line Width:4mil;Min. Line Spacing:4mil;
Port:Shenzhen/Hong Kong;Brand Name:JEWELLED;
Audio output:Left and right channel output, support 8 * 3W L/R speakers;OS:ANDROID 4.4;
Packaging Detail:1. inner, vacuum package; 2. outer, standard export carton 3.customized packing;CPU:Amlogic-S812, Quad core, Cortex-A9, Frequency 2GHz;
Base Material:FR4;Adaptive temperature:-20℃ to 80℃;
Memory:DDR3 2GB, maximum 4GB;
Product Description
CPUAmlogic-S812, Quad core, Cortex-A9, Frequency 2GHz
GPUmali450mp6
OSANDROID 4.4
MemoryDDR3 2GB, maximum 4GB
Built-in memoryEMMC FLASH 8G/16/32G option(Standard 8GB)
External memorySupport TF CARD --- highest 32G disk, support usb drive as storage
Display interfaceLVDS(pin);HDMI
Dual screen displayUnsupport
Backlight Voltage5V/12V option
Display voltage3.3V, 5V, 12V option
NetworkSupport 100MHZ LAN, wireless WIFI 2.4G & 5.8G, and BT3.0/BT4.0
BTBT4.0
3G/4GSupport the plug-in USB interface 3G/4G module
Touch screenSupport multi-touch capacitive touch screen
USB interfaceUSB2.0 * 4(Including OTG*1)
Camera interfaceSupport(TB656) or USB
Hardware watchdogSupport watchdog
Serial port2 pcs
485 interfaceNO
MIC inputSupport
power inputDC 12V-28V/3A

RTC

Support

Timing switch

Support
System UpgradeSupport TF card/USB/OTG
DecodingSupport VP6/8  HTML5 and FLASH5 decoding
Audio outputLeft and right channel output, support 8 * 3W L/R speakers
Video outputHDMI( 3840*2160) LVDS(1920*1080)
The effect adjust for video outputSupport display vertical level adjustment & brightness  adjustment
Infrared remote controlSupport the infrared remote control
Adaptive temperature-20℃ to 80℃
ESD8KV
Surge+/-2.5KV
Other portsHeadphone output, AV output
PCB size138mm x 86.5mm



Application



Advertising Player

Digital Signage

POS Terminal





TV Box

Bus Media Player



















Vending Machine

Intelligent Security Monitor

Entrance Guard

























Vehicle Exit Barrier Gate

Medical Instrument and Equipment

Face Recognition

Our motherboard has a wide range of application scenarios. The application scenario of the motherboard depends on the function requirements of our customers.



Our company

        Shenzhen JLD Technology Co., Ltd is founded in 2009, specialized in defferentiation intelligent terminal design development and located in applying Android operation system that design and develop PCBA based on rochchip and amlogic solving project; sell and operate Internet and smart city finished products based on Qualcomm 4G LTE chipset. Company provides project development, PCBA and the production and sales of finished products to all of global clients.
        Since the foundation, our company has established long-time cooperation relationship with clients in Europe, North America, Korea, South-east Asia and so on and clients in many provinces in nationalwide. The content of project design service includes the design development and product sales of generic smart like smart city, mobile web of things, digital signage, POS machine, vending terminal, education terminal, video phone, smart broadcast, smart sports equipment, smart home, smart transportation, medical equipment and so on. Our brand clients includes Benz coach, Mengshi coach, Panasonic, Haier, Media, Jiumu, Hongkong Qishi, Korean Ministry of National Defense, Kangguan and so on. Our products are applied broadly in finance, education, hospital, media, car, industrial control, military, real estate and so on.


Trade terms:

Reliable OEM/ODM
Exw factory Shenzhen, FOB HK.
50% deposite, 50% balance before deliver.
Leadtime: 3-4 weeks.
Courier: DHL, Fedex, UPS, TNT. we also have our own cooperated forwarder agent.

Warranty

1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.



After-sales service


Good quality control, 1-3 years warranty.
Immediate technical support.
We are your best digital signage solution provider !

FAQ

1.What is your terms of packing?
A:Generally, we pack our goods in bubble pack and outer cartons. If you have other spare parts such as LCD panel or Touch screen, wooden frame are needed.


2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

3. What is your terms of delivery?
A: EXW, FOB, CIF.

4. How about your delivery time?
A: Generally, it will take 20 to 50 days after receiving your advance payment for mass order. The specific delivery time depends on the items and the quantity of your order.

5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Packaging & Shipping

Packaging





Shipping



1. Sample and mini order will be delivered within 2/3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4 weeks after the receipt of payment.
Please contact our sales to make sure the current inventory.
