12Mm 16Mm 19Mm 22Mm 25Mm 30Mm Round Waterproof Ip67 Metal Push Button Momentary Latching Switch

Supplier: Yueqing Aibeiken Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Nina Tao
Price: $0.50 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Front head:	Flat round/High round/Domed;	Material:	Brass nickelage/stainless steel/Blacken/Chrome;
Lamp voltage:	2V/3V/6V/12V/24V/36V/110V/220V/250V;	Brand Name:	ABILKEEN;
Lamp color:	Red,green,yellow,orange,blue,white,purple;	Supply Ability:	99000000000 Piece/Pieces per Week ip67 push button;
Mounting hole diameter:	10-40mm;	Place of Origin:	Zhejiang China;
Operation type:	Momentary or Latching;	Max. Current:	5A;
Terminal:	Pin terminal;	Port:	Ningbo, Shanghai, Wenzhou;
Product type:	IP67 push button;	Protection Level:	IP67;
Max. Voltage:	250VAC;	Contact configuration:	1NO1NC/2NO2NC;
Payment Terms:	L/C,T/T,Western Union,Paypal, Credit card;	Packaging Detail:	12Mm 16Mm 19Mm 22Mm 25Mm 30Mm Round Waterproof Ip67 Metal Push Button Momentary Latching Switch 1: Neutral packing : plastic bag for goods+ inner box bubble+ inner box +carton 2: Upon customers' request, but the price is different with neutral packing 3: Carton size: 302530 4: 40 pcs/box,10boxes/carton;

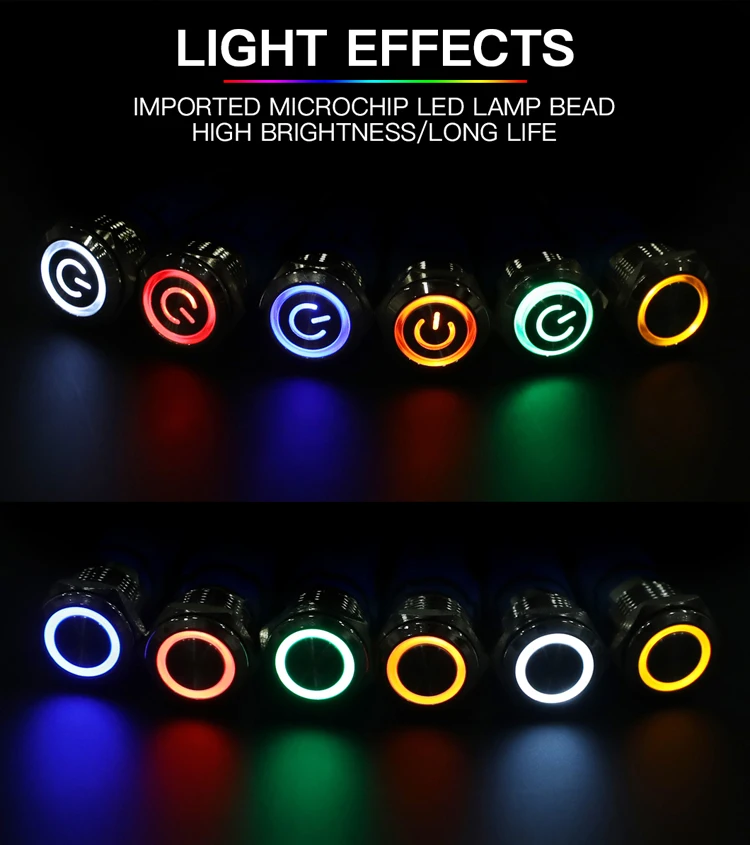

Emitting Type:	Ring LED/Dot LED/Symbol LED;	Model Number:	latching button switch;

Product Details

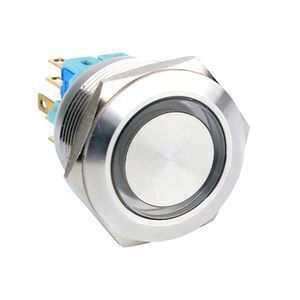

12Mm 16Mm 19Mm 22Mm 25Mm 30Mm Round Waterproof Ip67 Metal Push Button Momentary Latching Switch

Product Name	Push Button Switch & Harness
Model	12mm-30mm
Mounting Hole	12mm 16mm 19mm 22mm 25mm 30mm
Operation Type	Momentary/Latching
Switch Combination	1NO1NC
Head Type	Flat Head

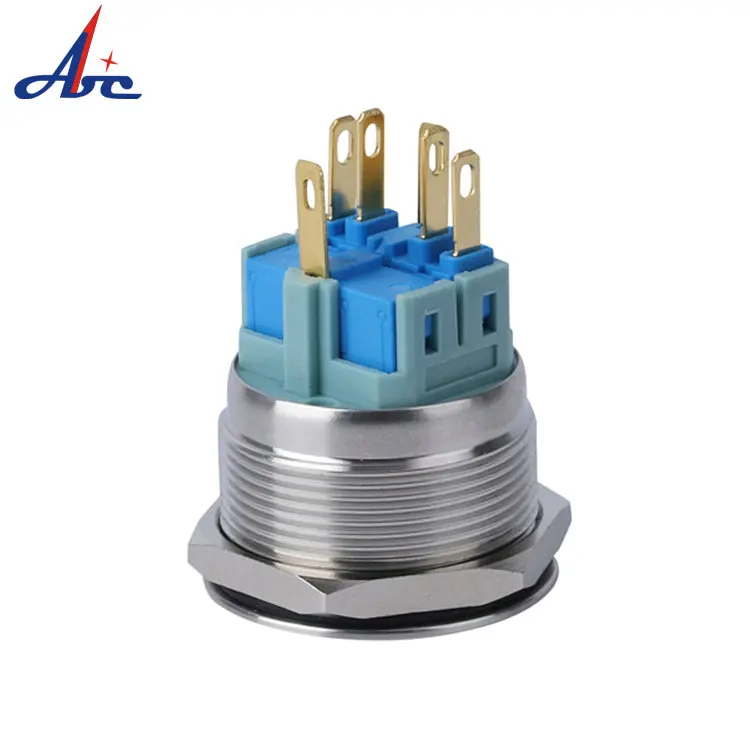

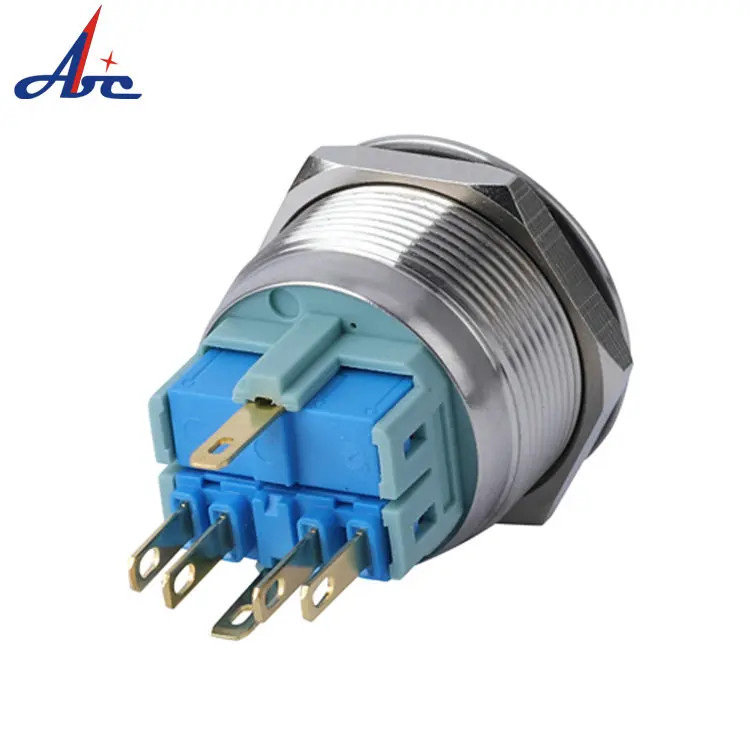

Terminal type	5 Pin Terminals
Illuminated or not	Yes
Led Voltage	12V (or 0V/2V/3V/6V/24V/110V/220V/others)
Led Color	Blue (Red, Green, Yellow,White,Orange available)
Illuminated Type	Ring
Enclosure Material	Brass nickled
Delivery Days	1-7 days
Contact Resistance	50 mΩ max
Insulation Resistance	1000MΩ Min
Dielectric Intensity	2000VAC
Operating Temperature	-20°C ~+55°C

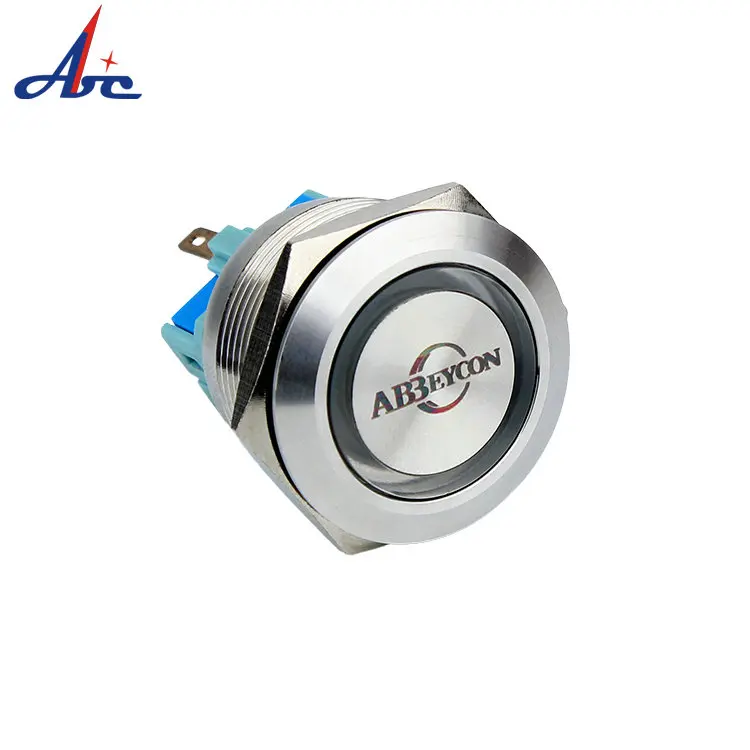

Customized symbol,colored housing or Connector	Acceptable and with fast shipping
Accessories	Nut, Rubber O-ring,Resistor inside
What You Get	1X push button switch (12V Blue led, momentary 1NO1NC), 1x Harness if you need latching function, pls inform us by mail,tks!
Wiring Harness Included	Yes,Click HARNESS and check item No.: IB19E Harness

Product description
· Model: 12-30MM
· Mounting hole size:Φ12-30mm,
· Contact structure: 1NO/1NC/1NO+1NC
· Operate function: Latching/ Self locking or Momentary/Reset
· Waterproof level: IP67
· Panel Thickness: 1~8mm
· Mechanical Life: 1000,000 cycles; Electrical Life: 50,000 cycles
· Terminal Type:Screw Terminal
· Material: Nickel Plated Brass / Stainless Steel

Q1. What is your terms of packing? IP67 waterproof push button switch
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q9: What is Momentary function?
A: When you push switch and then move your finger, the actuator will back to the original position.
Q10: What is Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.

If you have any other questions, please send us an enquiry,we will reply you ASAP.
