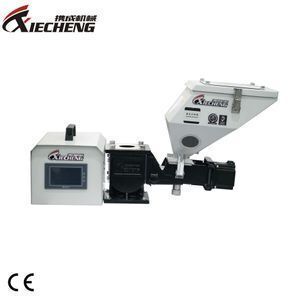

Small Screw Volumetric Doser for Powder
-
Supplier: Jiangmen Xiecheng Machinery Co.,Ltd. -
Region: Guangdong, China -
Contact: Ms Amy Chau -
Price: $1600.00 /set -
Min. Order: 1 set
| Condition: | New; | Floor stands: | Optional; |
| Application: | extruder ,injection machine etc.; | Supply Ability: | 500 Set/Sets per Month; |
| After Warranty Service: | Video technical support,Online support; | Main Material Hopper: | Optional; |
| Packaging Detail: | wooden case package; | Screw Dia.: | 12 mm; |
| storage capacity: | 15L; | Local Service Location: | Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Malaysia,Uzbekistan; |
| Production Capacity: | 0.05-20KG/HR; | Mixer: | Optional; |
| Automatic Grade: | Automatic; | Weight: | 25kg; |
| Weight (KG): | 25 KG; | Port: | Jiangmen/Shenzhen/Guangzhou; |
| Voltage: | 220V50Hz1 Phase; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
| Warranty: | 1 year; | Place of Origin: | Guangdong China; |
| Dimension(L*W*H): | 450*560*310mm; | Applicable Industries: | Manufacturing Plant; |
| Showroom Location: | Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Uzbekistan,Malaysia; | Power(W): | 0.12kw; |
| Rotary speed: | 1.8-300 r.p.m; | Certification: | CE; |
| Brand Name: | XIECHENG; | control methord: | PLC; |
| After-sales Service Provided: | Online support,Video technical support; |
Small Screw Volumetric Doser for Powder
| Model | Single Color Unit | Double Color Unit | Three Color Unit | ||
| XCM-12 | XCM-14 | XCM-16 | XCM-D2 | XCM-D3 | |
| Motor Power (KW) | 0.3 | 0.3 | 0.3 | 0.3*2 | 0.3*2 |
| Rotary Speed (r.p.m) | 1.8~300 | 1.8~300 | 1.8~300 | 1.8~300 | 1.8~300 |
| Mixer Power (KW) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
Screw Dia. (mm) | 12 | 14 | 16 | ** | ** |
| Output Capacity (kg/hr) | 0.05~20 | 0.1~40 | 0.5~64 | * | * |
| Storage Capacity (L) | 13 | 13 | 13 | 13 | 13 |
| Main Material Hopper (L) | Optional | Optional | Optional | Optional | Optional |
| Mixer | Optional | Optional | Optional | Optional | Optional |
| Floor Stands | Optional | Optional | Optional | Optional | Optional |
| Dimensions | |||||
| H | 450 | 450 | 450 | 450 | 520 |
| W | 560 | 560 | 560 | 980 | 1050 |
| D | 310 | 310 | 310 | 310 | 1050 |
| Approx. Net Weight (KG) | 25 | 25 | 25 | 45 | 75 |
for more information,pleases click to contact
| CONTACT US |
Volumetric Doser
v
XCM series volumetric doser are adaptable to auto-proportion mixing
of new materials, regrinds, masterbatch or additives, adaptable to injection,
extrusion or blow molding field. A stepper motor is used in this series,
according to the set mixing proportion,
the microprocessor accurately controls rotation of the high
precise dosing screw to squeeze out materials with
an deviation of ± 1%. This doser can connect with various
molding machine signals in synchronicity, to ensure the stability of the products

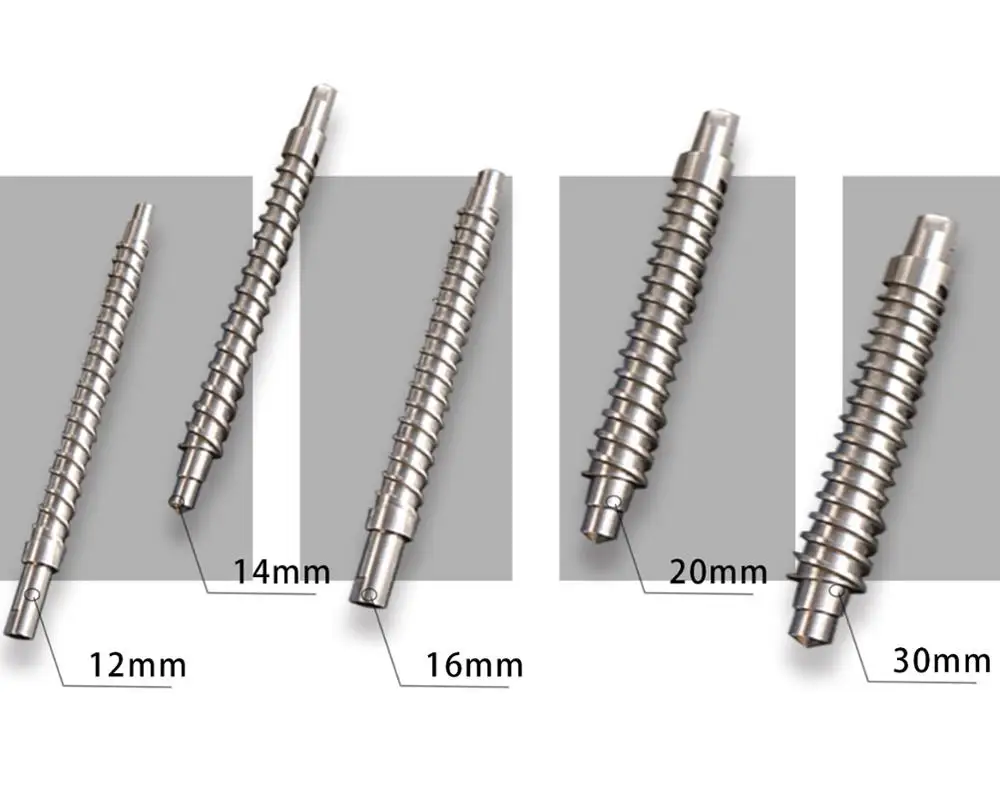

| 304 Stainless Steel Screw The screw is made of 304 stainless steel and chrome plated. The specification is 12mm / 14mm / 16mm / 20mm / 30mm |

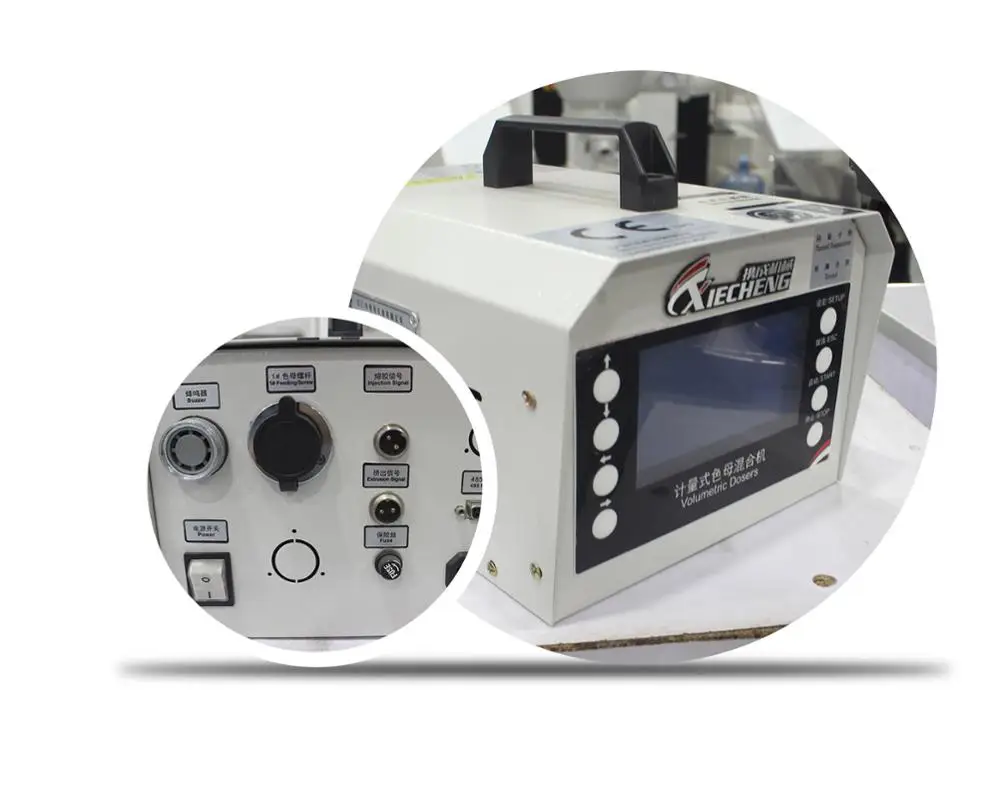

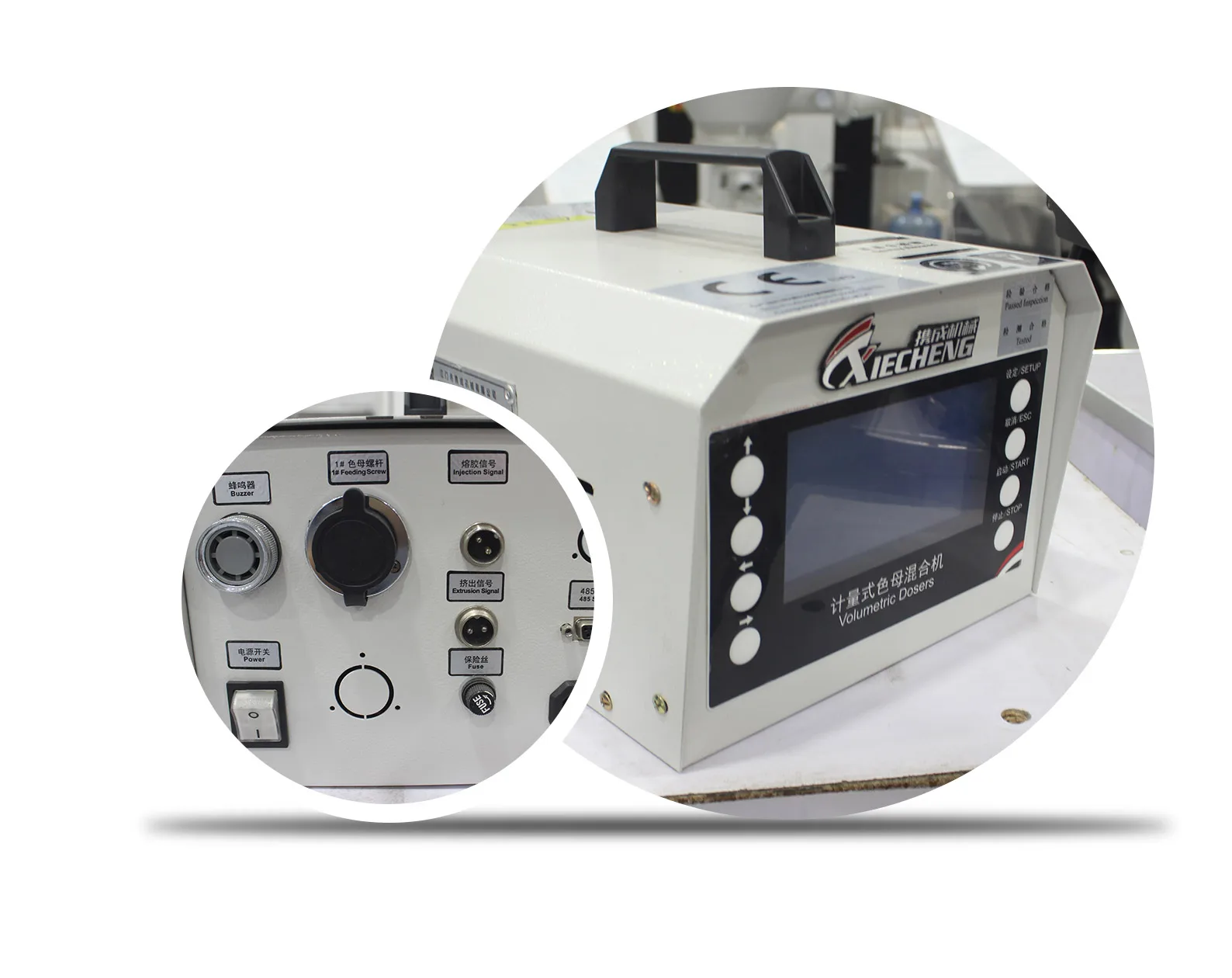

PLC Controller 1. Can quickly start the machine and accurately measure the color masterbatch and adding proportion, meanwhile, it can store 50 sets of formula and turning Change formula, accurate measurement of additives column 2. Full range of metering color machine, all adopt high precision hybrid stepping motor, accurate metering and wide output range |   |

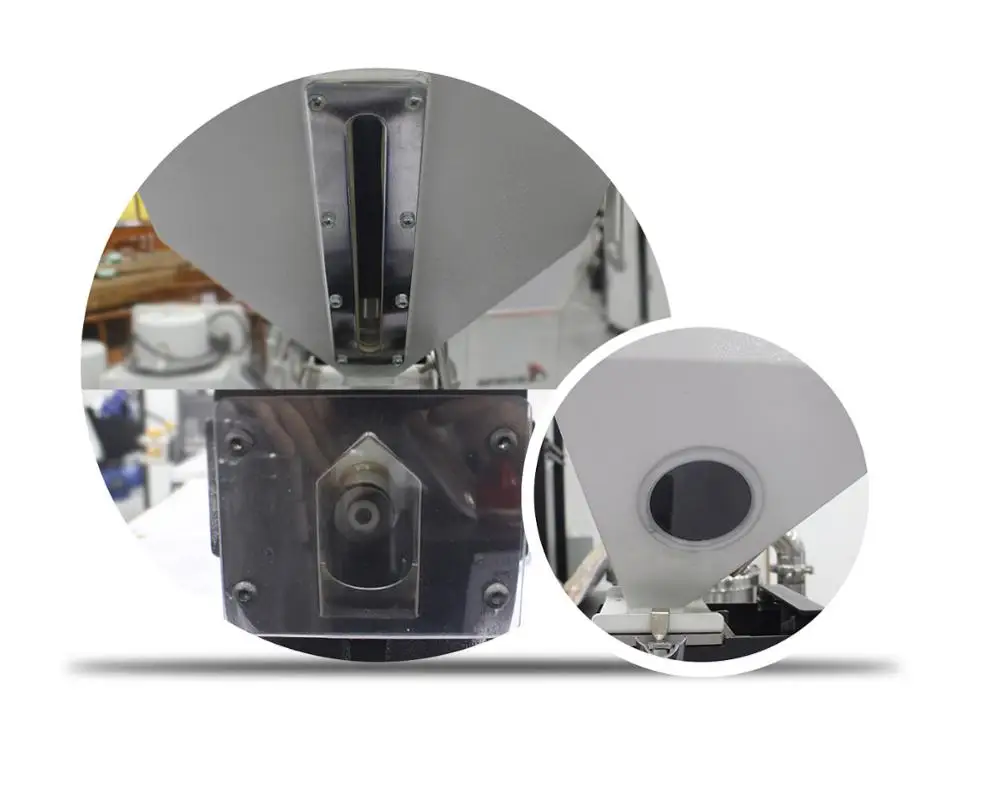

 | Transparent Visual Window 1.There is a window on the side of the hopper base to observe the loading of raw materials 2.Mixing base with transparent window, built-in stainless steel mixing knife, easy to observe the mixing of raw materials and color master |
Detachable Structure The color master metering part is modular and detachable structure design, which can be quickly removed and replaced with internal screw and sleeve. The metering part can be removed from the base as a whole without leakage |  |
for more information,pleases click to contact
| CONTACT US |

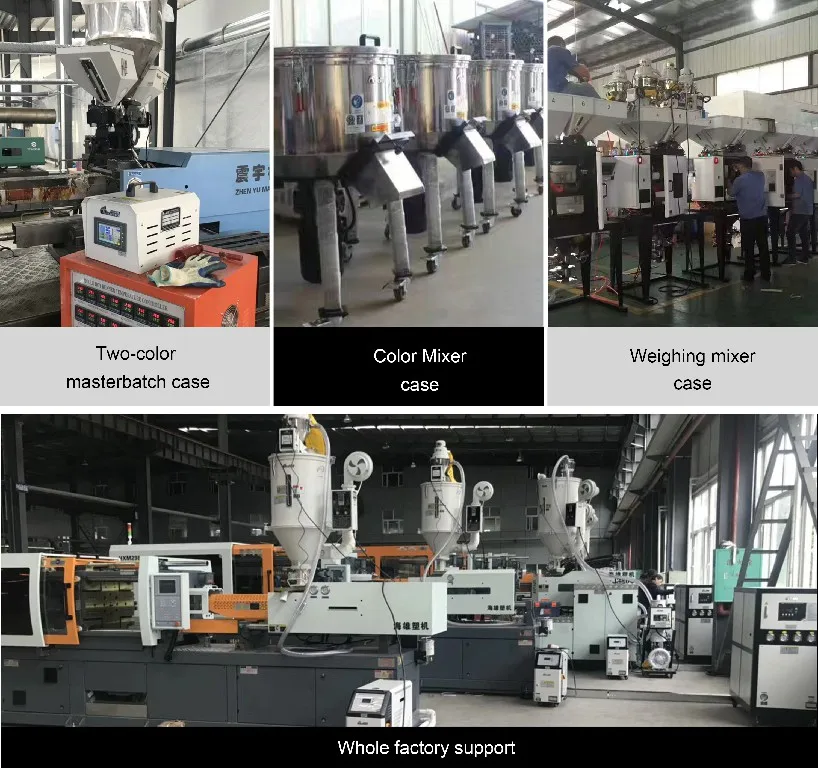

Customer Case
User-centered service and detailed control
can provide customers
with cost-effective and reasonable solutions
About Us
Tailored to your specific needs
User-centric service and detailed control
Provide cost-effective and reasonable solutions
Good maintenance service
Certification
Quality Management System certified
By SGS/Quality Management
System certified by BV
Exhibition
Established an international sales team
for overseas market explorations
FAQ
Frequently asked questions when buying products
Q: How many years have your factory been established?
A:Our factory established from 2009,
but most of our engineers are working in this industry over 15 year.
Q: How long is your delivery time ?
A:we have a few stock .but if produce,
1 set for normal machine need about 3-7 working days ,
if 1 or more containers, need about 15-20 working days.
Q:how long is the warranty?
A:Within 1 year from date of the factory, if parts failure or damage
(because of the quality problem ,except wearing parts),
our company provide these parts for free.
Q:What is your payment term ?
A:TT 100% before shipment ,LC at sign,
Western Union or Trade Assurance order recommended.
