Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Certification: | CE; |
Reservoir volume: | 7.5L; | Lifetime: | more than 5 years; |
Loading distance: | 3.5 m; | Capacity (kg/h): | 300 kg/h; |
Dimension(L*W*H): | 340*340*590mm; | Static wind pressure: | 1300mm/H20; |
Local Service Location: | Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Malaysia,Uzbekistan; | Power(W): | 1KW/1.3Hp; |
Control: | microcomputer; | Showroom Location: | Viet Nam,Brazil,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Uzbekistan,Malaysia; |
Condition: | New; | Packaging Detail: | Standard plywood case or customized; |
Applicable Industries: | Manufacturing Plant; | Supply Ability: | 500 Set/Sets per Month; |
Port: | Jiangmen/Guangzhou/Shenzhen; | Voltage: | 220V/50Hz/3Phase as usual; |
Brand Name: | XIECHENG; | Warranty: | 1 year; |
Weight: | 12kg; | Weight (KG): | 12 KG; |
After Warranty Service: | Video technical support,Online support; | Place of Origin: | Guangdong China; |
After-sales Service Provided: | Online support,Video technical support; | Motor Type: | carbon brush; |
Loading: | automatic; | Conveying capacity: | 300kg/h; |
Application: | plastic industry; |

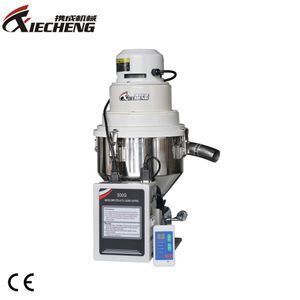

Plastic Hopper Auto Loader for Injection Molding Machine
Model | XC-X300G | XC-X400G | |
Motor | Type | Carbon Brush | Induction |
Specification | 1.1KW/1.3HP 1Φ | 0.75KW/1HP 3Φ | |
Conveying Capacity(Kg/h) | 300 | 330 | |
Loading Distance(m) | 3.5 | 4 | |
Static Wind Pressure(mm/H2o) | 1300 | 1400 | |
Reservoir Volume(L) | 7.5 | 7.5 | |
Conveying Tube Inner Diameter(mm) | Φ38 | Φ38 | |
Specification of The Attached Hoses(mm) | Φ38mm*3.5m 1Pcs | Φ38mm*4m 1Pcs | |
Dimension L*W*H(cm) | 34*34*59 | 45*37*66 | |
Approx. Net Weight(kg) | 12 | 27 |
for more information,pleases click to contact
CONTACT US |
Standard Self-Contained Hopper Loader
Widely used for plastic molding industry,
such as: injection molding, extrusion, blow molding industry, etc.
Can be divided into: independent type suction machine, European suction machine,
Suction machine, Split type high-power suction machine
and A machine bucket suction machine
Microcomputer Control Panel Full series microcomputer operation control program, equipped with overload, lack of material alarm function | |
Carbon Brush Motor 300G adopts high speed rectifying motor, small volume, low noise, strong suction, suitable for conveying new materials | |
Siemens Electrical Appliances Electrical parts are international brand Siemens electrical appliances, to ensure stable operation of the machine | |
Stainless Steel Hopper 1.The upper part of the hopper is divided into 201 stainless steel and the lower part into 304 stainless steel 2.Hopper and base can be adjusted in any direction, easy to install |
for more information,pleases click to contact
CONTACT US |
Customer Case
User-centered service and detailed control
can provide customers
with cost-effective and reasonable solutions
About Us
Tailored to your specific needs
User-centric service and detailed control
Provide cost-effective and reasonable solutions
Good maintenance service
Certification
Quality Management System certified
By SGS/Quality Management
System certified by BV
Exhibition
Established an international sales team
for overseas market explorations
FAQ
Frequently asked questions when buying products
Q: How many years have your factory been established?
A:Our factory established from 2009,
but most of our engineers are working in this industry over 15 year.
Q: How long is your delivery time ?
A:we have a few stock .but if produce,
1 set for normal machine need about 3-7 working days ,
if 1 or more containers, need about 15-20 working days.
Q:how long is the warranty?
A:Within 1 year from date of the factory, if parts failure or damage
(because of the quality problem ,except wearing parts),
our company provide these parts for free.
Q:What is your payment term ?
A:TT 100% before shipment ,LC at sign,
Western Union or Trade Assurance order recommended.
