agriculture hay polypropylene baler twine spool winding machine packing rope cone coiling winder

Product details
Moment motor:4 N.M;Condition:New;
Outside Diameter Range:100-250mm;Spool Capacity:2-3kgs;
Arrange Width:200mm;Single gross weight:68 KG;
Warranty:1 year;Power(W):8N;
Voltage:220v/380v;Weight:80kgs;
Local Service Location:None;Operate:1 Worker;
Certification:BV;Single package size:1X0.6X0.8 cm;
After-sales Service Provided:Engineers available to service machinery overseas;Twisting Degree:16-62;
Material:Jute/cotton/paper twine;Automatic:Semi-auto;
Twist direction:S-z;Application:package;
After-sales Service Provided:Field installation, commissioning and training,Online support;Dimension(L*W*H):0.8*1*1.1m;
Rope Diameter:1-3mm;Brand Name:Lutong;
Working type:Independent;Selling Units:Single item;
Place of Origin:Shandong China;After Warranty Service:Online support,Spare parts;
Showroom Location:None;Package Type:wooden case/ in nude;
Wind speed:800r/min;Inside Diameter Range:20-50mm;
Applicable Industries:Manufacturing Plant,Home Use;Key Selling Points:Easy to Operate;

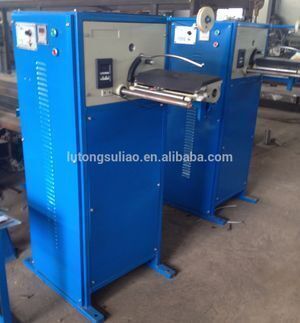

baler twine spool winding machine



Usage

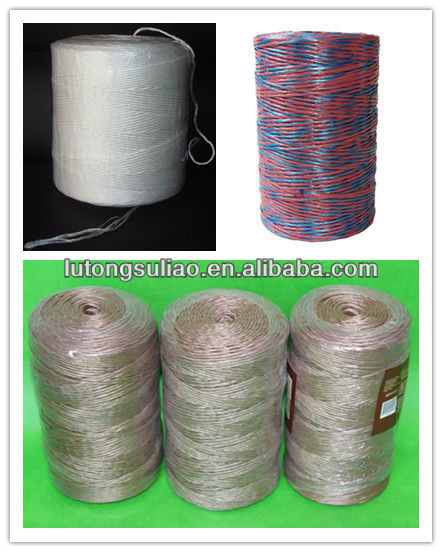

This machine is used for winding wrapping spool with pp yarn,pe thread,cotton string,jute twine,split film yarn,raffia twine. Etc… The finished products are widely used in commodity package,agricultural plant,baling stuffs. Different models are available, and 6”and 8”travelling distance are optional.



Advantages:

  1. Matched with meter counter, machine can stop automatically when yarn winding reach to settled meter.
  2. Tightness and pattern can be changing according to yarn diameter.
  3. One machine can be changed to different size axles according to requirement.
  4. Adopting conveying belt transfer,machine works stably and with low noise



Technical specifications:



Model

DZJ-6

DZJ-8

Max. dia. of yarn

4mm

4mm

Max. weight of coil

2kgs

3kgs

Max. dia of coil

200mm

200mm

Max. tension

30-50kgs

30-50kgs

Travel distance

6 inch

8 inch

Max. speed

1400r/min

1400r/min

Moment motor

6N

8N

Spindle quantity(optional)

1 piece

1 piece

Output/ spindle

20-25kgs/h

25-30kgs/h

Dimension

0.8*1*1.1m

0.8*1.1*1.1m

Weight

70kgs

75kgs
