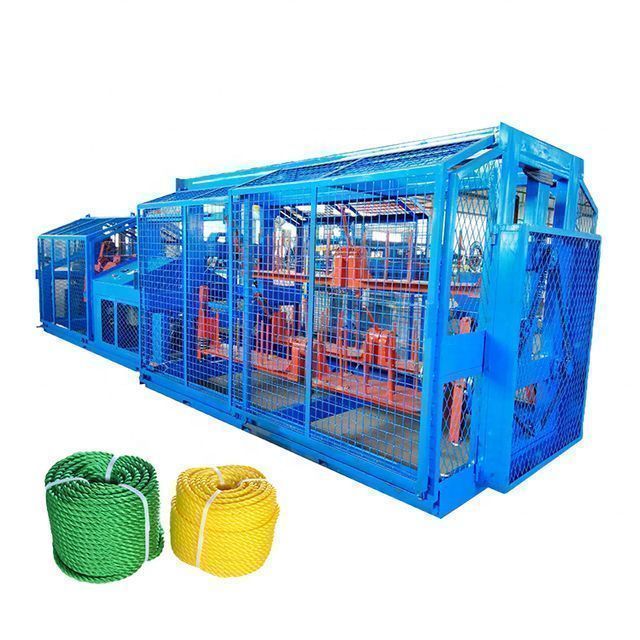

High Speed ​​3/4 Strand Twisting PP PE Nylon Plastic Rope Twister Machine For Sale

Product details
Main selling points:easy to operateVideo shipment inspection:if
weight:2500kgs, 3000KGSstrength:4 kW
Certification:British Virgin Islands, British Virgin IslandsPackaging Details:bare package
After-sales service provided:Engineers are available to repair machinery overseas, video technical support, free spare parts, online supportWarranty:1 year, 1 year
port:QingdaoShowroom location:not any
Applicable industries:Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agenciesCore component warranty:1 year
color:blue green yellowCore components:Bearings, gearboxes, motors, gears
Product Category:plastic ropeVoltage:220V/380V, 220V/380V
Plastic Type:plastic ropeLocal service location:not any
Origin:ChinaProcessing type:other, other
Supply capacity:20 sets per monthbrand:road pass
Dimensions (L*W*H):9*2.2*2.3After warranty service:Video technical support, online support, spare parts, on-site maintenance and repair services
Marketing Type:New Products 2020Material:PP PE Cotton
Mechanical test report:not availableHealth status:new
Power (kW):4
Product Description

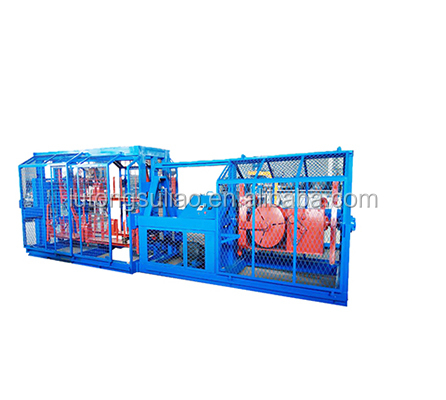

This machine is suitable for nylon, PE, PP and other ropes. It is composed of a rope making device and a strand making device. It can produce ropes with a diameter of 3-30mm in one continuous operation, eliminating the need for additional processes from strand making to rope making, thereby greatly improving production efficiency. No waste yarn or scrap comes out during production, so the rope is more beautiful and durable.

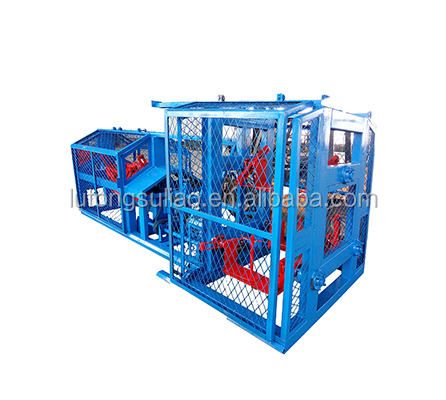

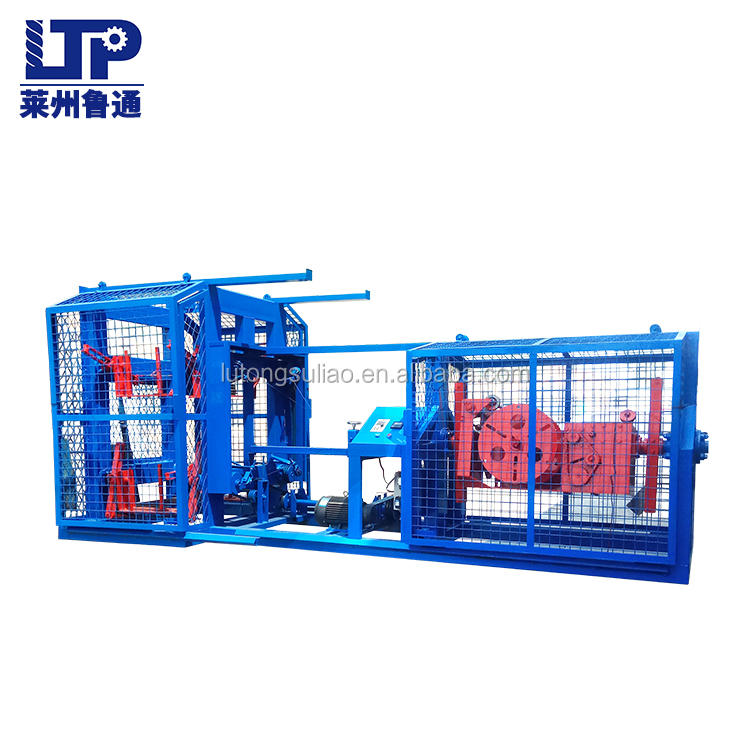

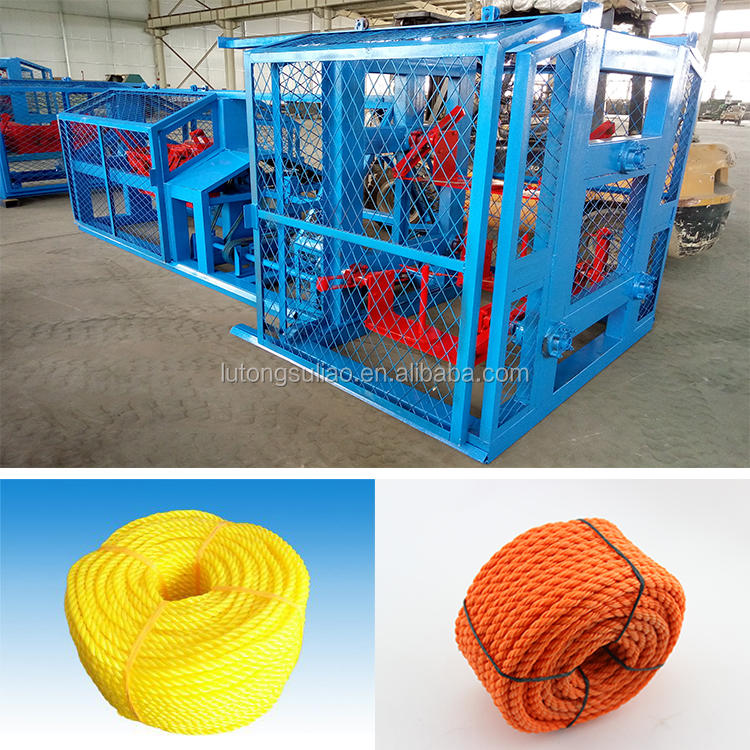

detailed image
Technical data
Spindle revolution
(rev/min)
diameter
Rope(mm)
automatic
liner
machine
twist

(Tm value)
Motor Power
aspect
(rice)
output
(t/day)
M77
320
20--26
GP40
16-62 years old
18KW-4
12*2.3*2.1
1.5-2
M66
350
16--22
GP40
16-62 years old
15KW-4
9*2.1*2.1
0.9-1.5
M55
420
10--16
GP30
16-62 years old
7.5KW-4
6.86*2*2.1
0.8-1.1
M44
620
5--8
16-62 years old
5.5KW-4
5*1.9*1.8
0.3-0.6
M33
900
3--6
26-82
3KW-4
4*1.9*1.8
0.2-0.4

machine use

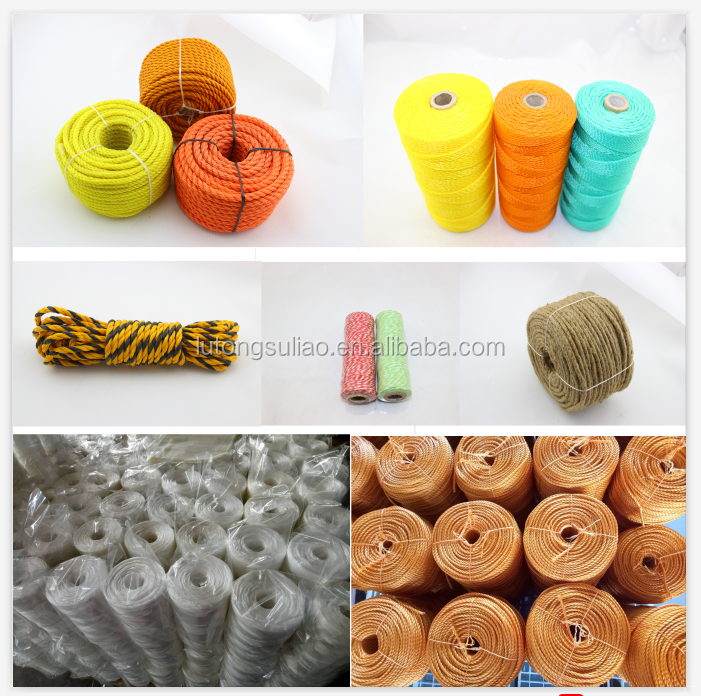

Raw materials: PP (polypropylene), HDPE (polyethylene), PE, PET, nylon. Cotton, 100% new or recycled-blend
Rope size: 3mm-30mm. 3 shares, 4 shares.
For the production of finished coiled ropes from natural and synthetic fiber yarns
Three-chain and four-chain models
in one continuous operation from start to finish




performance advantage
·High productivity
·labor saving·Sprocket drive
·With digital display length counter
Automatically stop when yarn breaks, controlling waste
·Door sensor, wire mesh protective door
· Low-noise, low-maintenance, easy-to-operate system
about Us

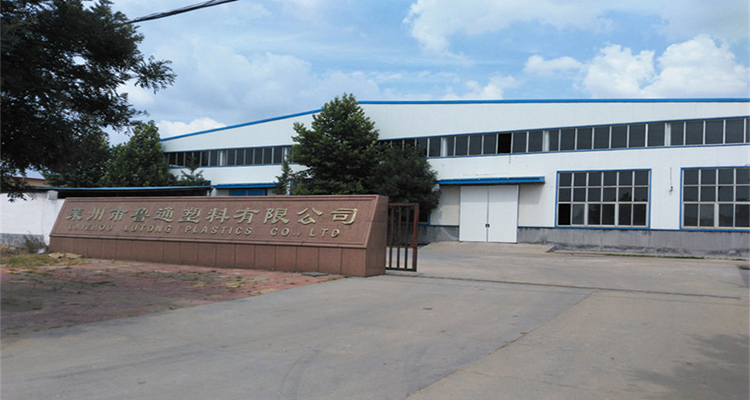

Laizhou Lutong Plastic Co., Ltd. is a comprehensive manufacturing enterprise integrating plastic machinery manufacturing, rope and steel wire. The main products are plastic wire drawing machine, film blowing machine, film tearing machine, ball machine, cylinder forming machine, rope making machine, plastic recycling equipment.

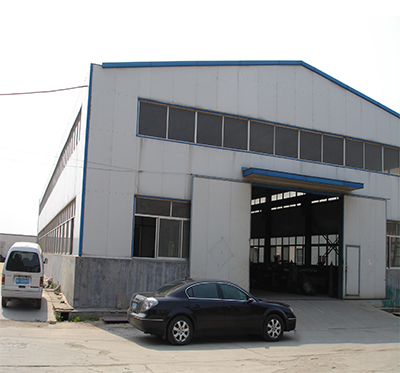

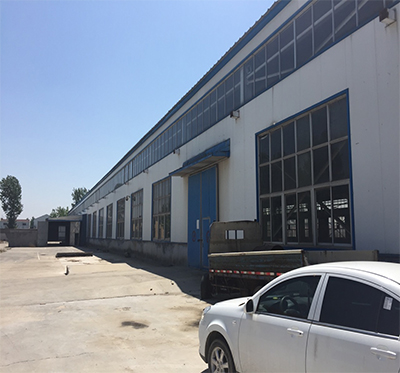

The company is located in Laizhou Development Zone, covering an area of ​​20,000 square meters. It consists of a plastic processing factory, a rope factory, a tear film ball factory and an international business unit. There are more than 100 sets of special equipment for twisting, rope making and thread making.
