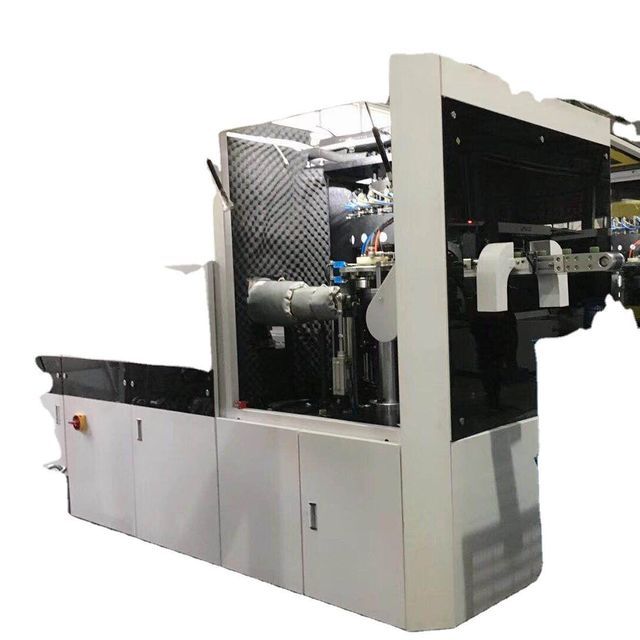

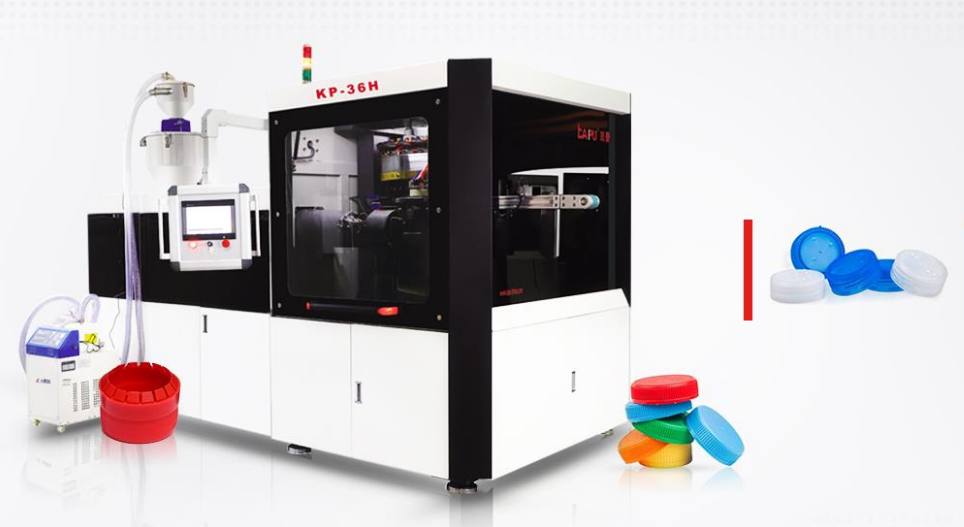

Bottle cap molding machine

Product details
Product Category:plastic bottle capPackaging Details:film or wooden box
Warranty:2 yearsShowroom location:Brazil, Thailand
Video shipment inspection:ifScope of application:water
Plastic bottle machine:bottle cap making machine priceBottle cap diameter: 18-60mm:Production process: compression molding
Processing type:otherAdvantage:high production
After-sales service provided:Overseas Service MachineryHealth status:new
Dimensions (L*W*H):3.6*1.8*2.2Package preview:
Supply capacity:10 sets per monthMechanical test report:if
color:customer requestCapacity: 10000-55000 pieces/hour:Certification: CE certificate
Applicable industries:Manufacturing plants, food and beverage factories, food and beverage stores, mineral water factories, juice factories, oil companies, pharmaceutical companiesbrand:cape
Voltage:220V/380Vweight:6
Origin:Zhejiang, Chinaproduct name:Bottle cap molding machine
Material:polypropylene. polyethyleneport:Ningbo
Core components:PLC, engine, gearbox, motor, gear, pump, screw, spindlepayment terms:L/C, T/T
Warranty 2 years:high speedCore component warranty:2 years
Main selling points:competitive pricePower (kW):96
Product overview
Brief introduction of bottle cap molding machine

Plastic bottle cap compression molding machine adopts continuous compression molding technology, which is suitable for higher capacity, lower unit cost and higher quality plastic bottle caps. The heating temperature of the bottle cap compression molding machine is lower than 180°C, which is much lower than that of the traditional injection molding machine and the temperature of the molding machine is above 200°C
List of functions
Compared with injection molding machines and other plastic bottle cap compression molding machine manufacturers, Kaipu plastic bottle cap compression molding machine has the following characteristicsadvantage:A. Energy savingLess energy consumption, with an overall energy saving of up to 45% per cap. Because plastic bottle cap compression molding machines require lower heating temperatures, this means lower energy consumption for both heating and cooling.B. High specific gravity, small shrinkageThe same molding pressure, lower molding temperature can get higher density. In addition, the smaller temperature difference between heating and cooling results in less shrinkage of the cap.C. Quick color changeThere is no hot runner, only the extruder and the separate cold die contacting the material.D. Shorter cycle times (2 seconds) and therefore higher productivityDue to the lower extrusion temperature, the cap cools faster in the cold-feed die, resulting in shorter cycle times and thus higher throughput.E. Convenient and flexible maintenanceIndependent mold, more convenient mold change, only hand tools, no crane.F. Less material waste: The cost per cap is greatly reduced.

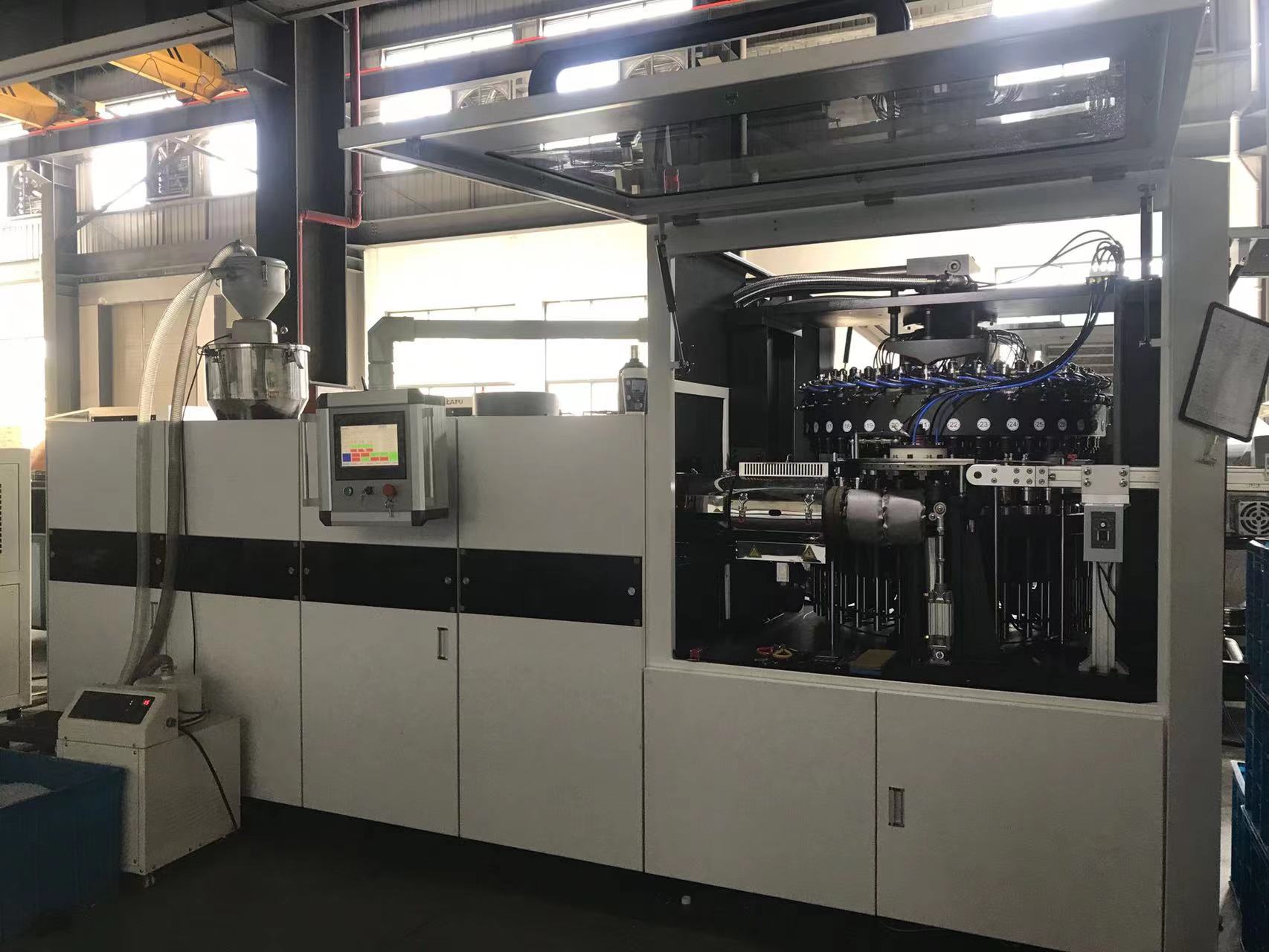

machine
30 caps

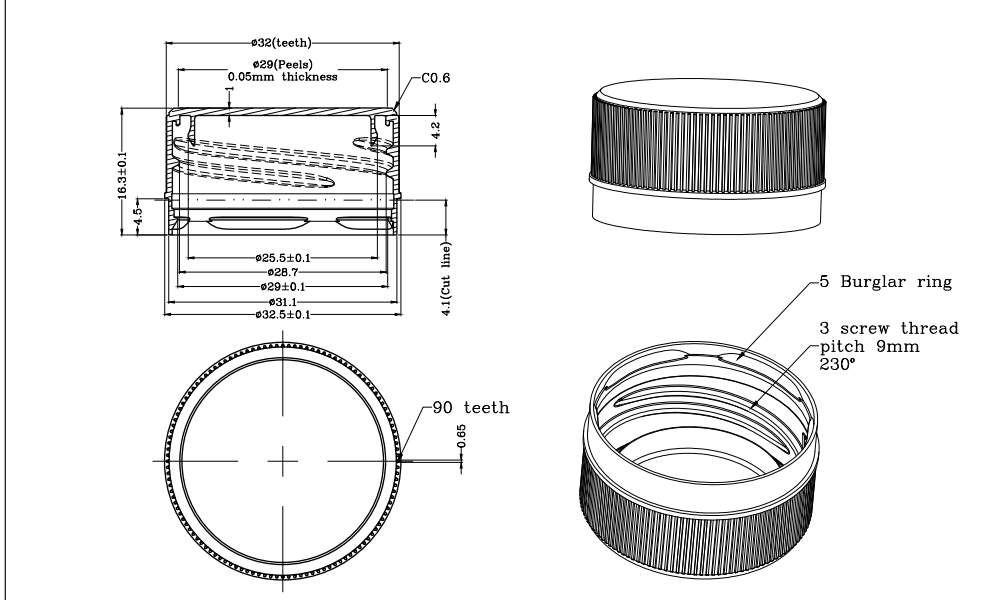

cap
product specification
No
thing
data
thing
brand
1
production capacity
52000PCS/H (2925mm) 46000PCS/H (3025mm) 25000PCS/H28mm folding
oil pump
American Denison
2
Cap Diameter
20-42mm
oil valve
Japan Oil Research Institute
3
ceiling height
15-25mm
Cylinder seal
Hellite, UK
4
cap material
Polypropylene/High Density Polyethylene
Rotary seal
Haitai Technology, Hong Kong
5

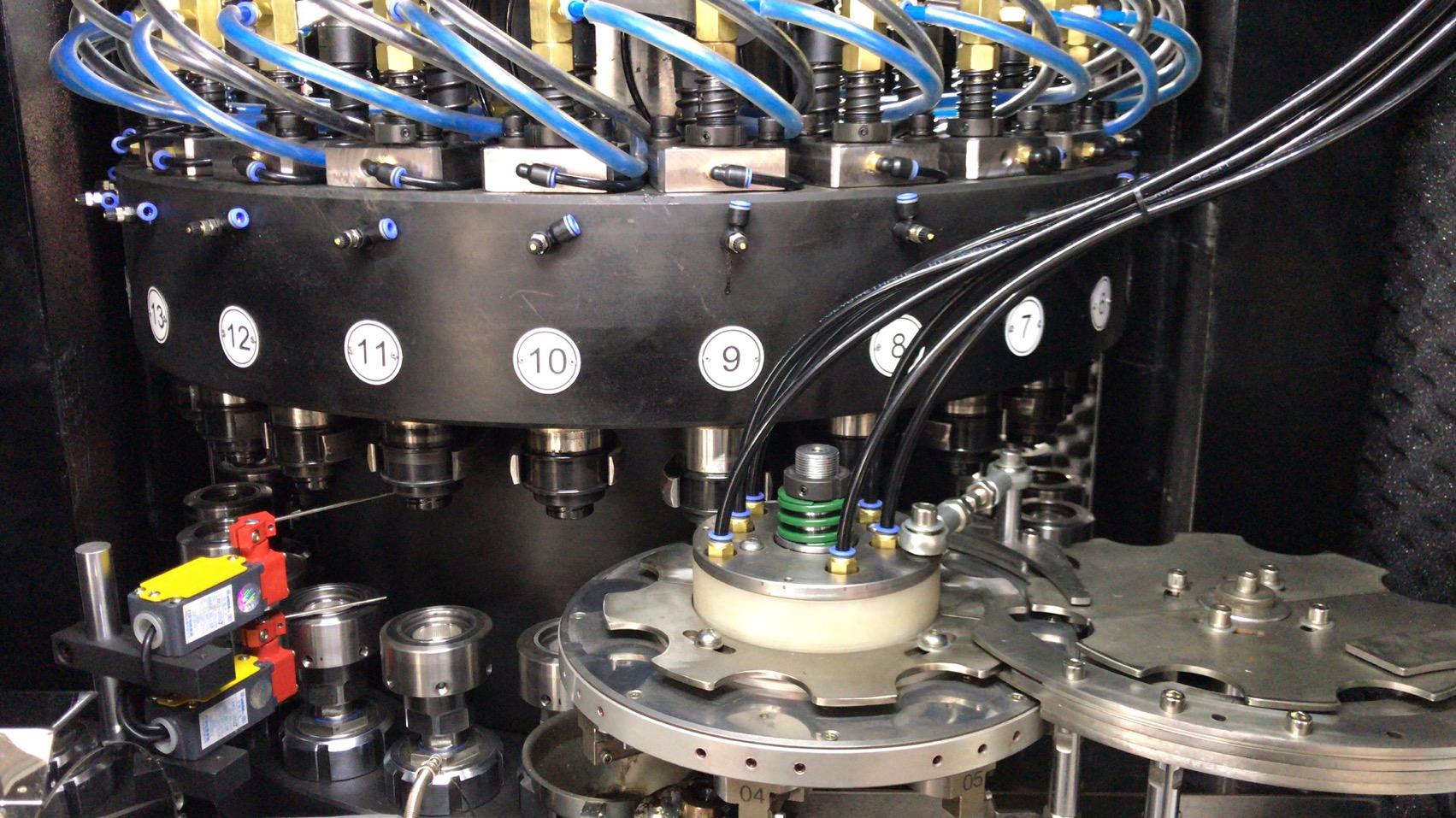

Cavity number
36
bearing
Japan NSK
6
Installed power
Installed power 96kw, actual power 57kw
pressure regulator filter
Japanese SMC
7
Air consumption
1.0 cubic meters per hour, 1.0Mpa
computer controller
Mitsubishi
8
Machine size
5500*2200*2100mm
computer touch screen
Mitsubishi

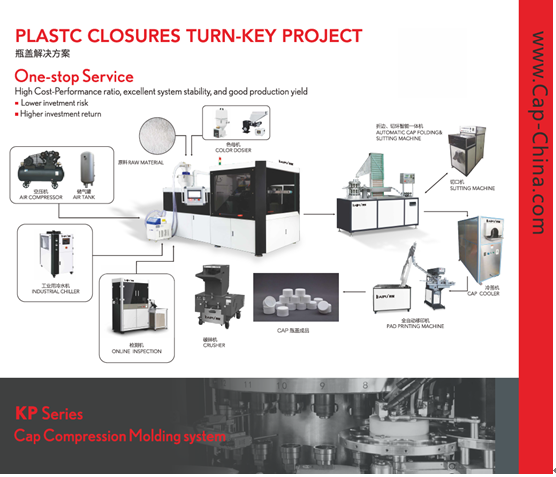

product configuration
water and juice

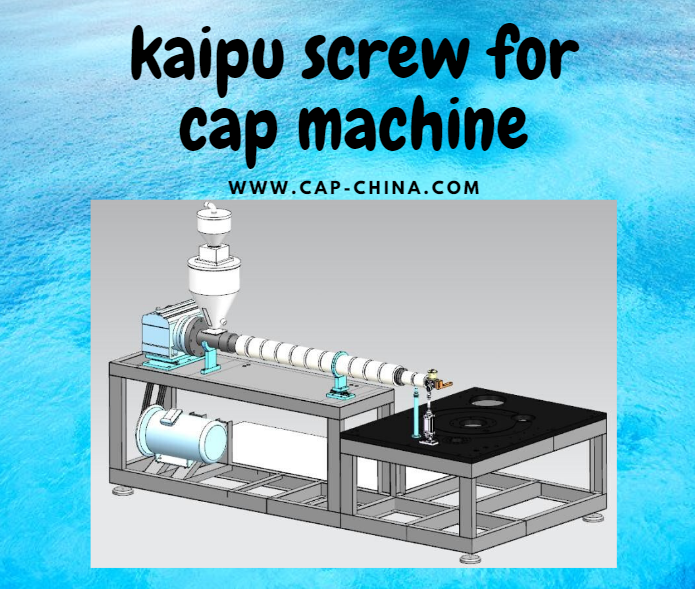

High precision screw
main
