After-sales Service Provided: | Online support,Video technical support; | Dimension(L*W*H): | 700*470*580 mm; |
Single package size: | 66X47X54 cm; | Power(W): | 400 W; |
Showroom Location: | United States,India; | Package Preview: | https://sc02.alicdn.com/kf/HTB1GokPbBKw3KVjSZFOq6yrDVXak.jpg_640x640.jpg; |
Price: | Negotiable and reasonable; | Warranty: | 1 year; |
Type: | Drying Oven; | Inner Dimension: | 200*200*200 mm; |
Package Type: | (Energy Saving Economical Small Mini 8L Lab Vacuum Drying Oven) 1.Carton+wooden cases. 2.Customized packaging can be available.; | Weight: | 35 Kg; |
Chamber Capacity: | 8 L; | Working Temp.: | +5~40°C; |
Brand Name: | FBL; | Application: | Medicine Processing,Chemicals Processing,Food Processing; |
Applicable Industries: | Manufacturing Plant; | Place of Origin: | China; |
Temp. Range: | RT+10~200(250)°C; | Voltage: | 220V 50HZ; |
Temperature accuracy: | ±1 °C; | Selling Units: | Single item; |
Shell Material: | Spray-paint Anti-corrosion; | Local Service Location: | United States,India; |
Condition: | New; | After Warranty Service: | Video technical support,Online support; |
Key Selling Points: | High Safety Level; | Certification: | CE ISO; |
Overall Dimension: | 600*420*460 mm; | Single gross weight: | 36 KG; |

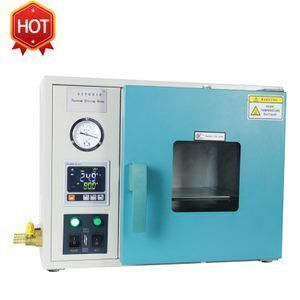

Product name: | Energy Saving Economical Small Mini 8L Lab Vacuum Drying Oven; |
Energy Saving Economical Small Mini 8L Lab Vacuum Drying Oven has a chamber volume of between 8 and 430 liters and a temperature range starting at between +10°C above room temperature up to +250°C. The drying oven interiors are made of corrosion-free stainless steel 304. Underpressure accelerates drying in the vacuum drying oven. A heat-sensitive material can, therefore, be dried in the vacuum drying oven at low temperatures, and at the same time, the vacuum drying oven drying time is considerably reduced. To avoid oxidation, an inert gas(e.g. nitrogen) can be fed into the chamber.
Model | DZF-6010 | DZF-6020 | DZF-6050 | DZF-6090 | DZF-6210 | DZF-6500 |
Power Supply | 220V/50HZ | |||||
Shell Material | Spray-paint Anti-corrosion | |||||
Liner Material | 304 Stainless Steel | |||||
Temp. Range | RT+10~200°C | |||||
Max. Vacuum Degree | 0.098 Mpa | |||||
Temp. Stability | ±1.0°C | |||||
Temp. Analysis | 0.1°C | |||||
Working Temp. | +5~40°C | |||||
Input Power (W) | 400 | 800 | 1400 | 2000 | 2400 | 2800 |
Chamber Capacity (L) | 8 | 25 | 55 | 90 | 215 | 215 |
Inner Dimension (W*D*H, mm) | 200*200*200 | 300*280*300 | 410*400*340 | 450*450*450 | 560*600*640 | 630*810*845 |
Overall Dimension (W*D*H, mm) | 600*400*430 | 620*500*480 | 720*570*540 | 770*620*710 | 730*730*1800 | 790*1030*1850 |
Shelves (Pcs) | 1 | 2 | 3 | 4 | ||
Time Range | 1~9999 min | |||||
Optional Configuration | Explosion-proof |
Ancillary Equipment: Rotary Vane Vacuum Pump (Click Here for More Details)
******Click Here to Contact Us for More Details and Latest Price******
Packaging
-Export plywood case or carton.
-Both neutral and customized packaging are available.
Shipping
-Usually, we ship the goods by International Express such as DHL, TNT, EMS, FedEx and UPS for small volume goods, and ship the big volume goods by air or ocean.
1. What's the minimum order quantity?
One set at present.
2. When can the goods be delivered?
2-5 working days after payment for regular models and 5-10 working days for a customized model.
3. Can you accept OEM or ODM?
Yes, we can.
4. How to choose suitable equipment?
Tell us your requirements, our professional sales will introduce you to the most suitable model.
