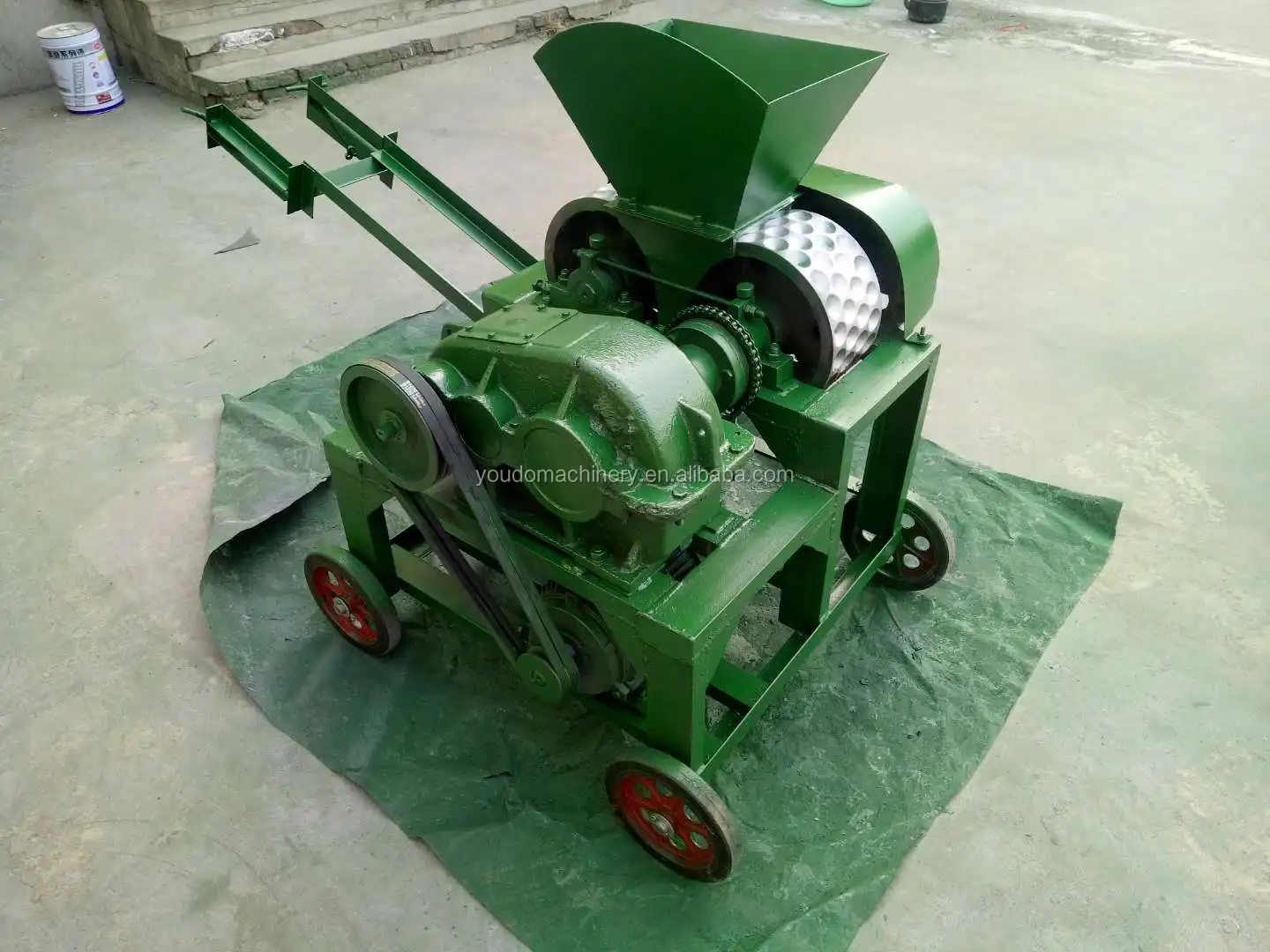

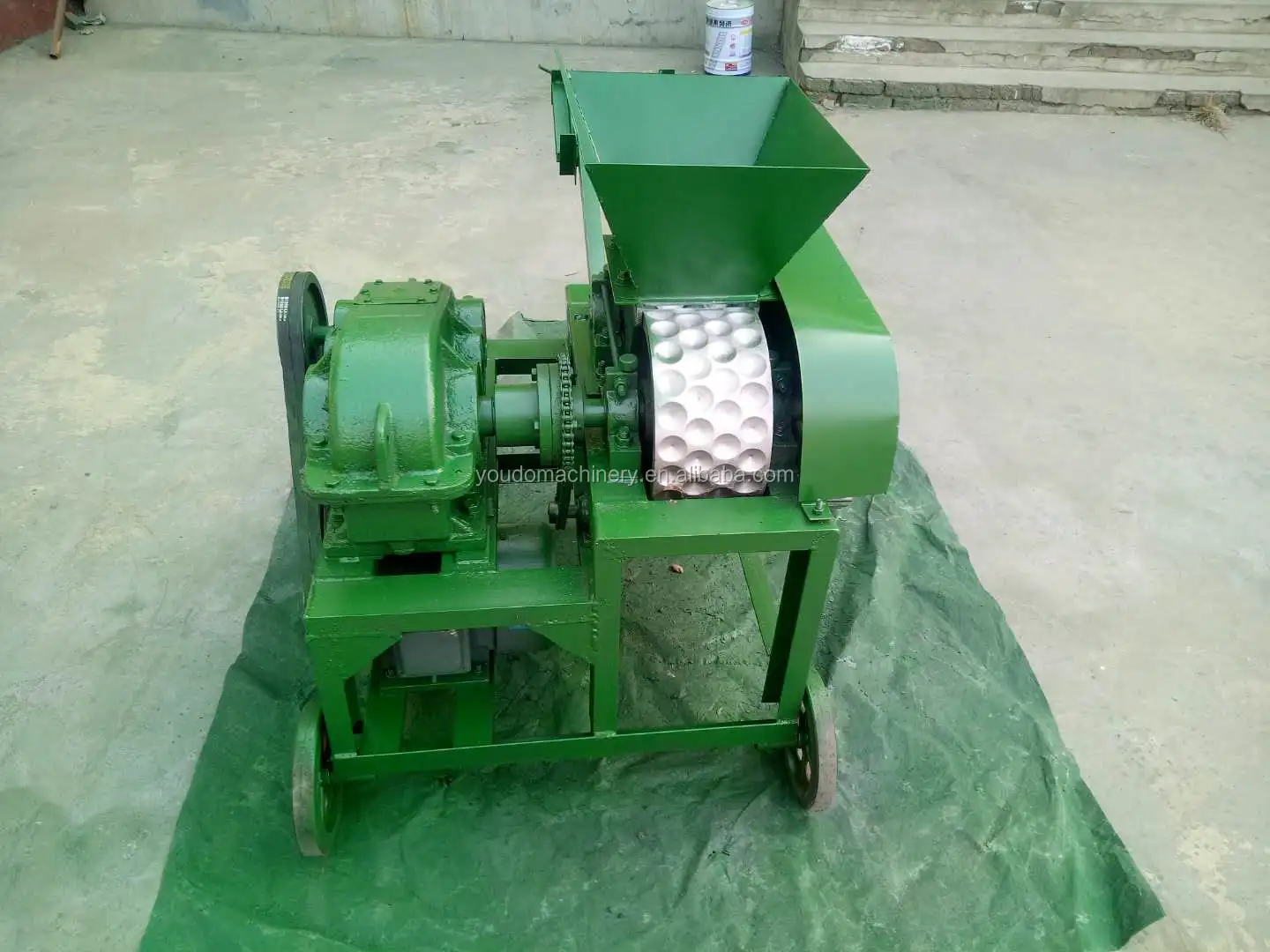

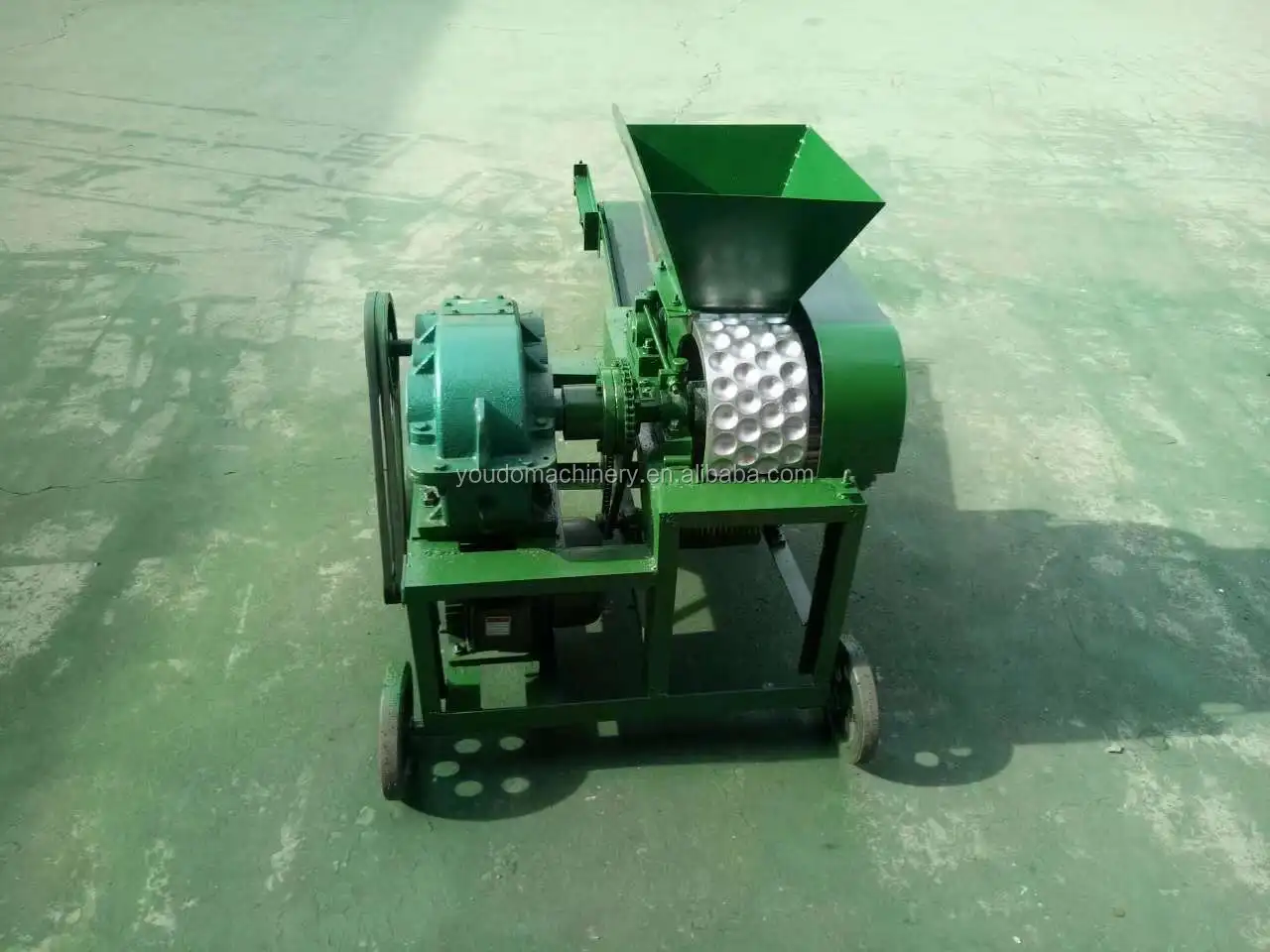

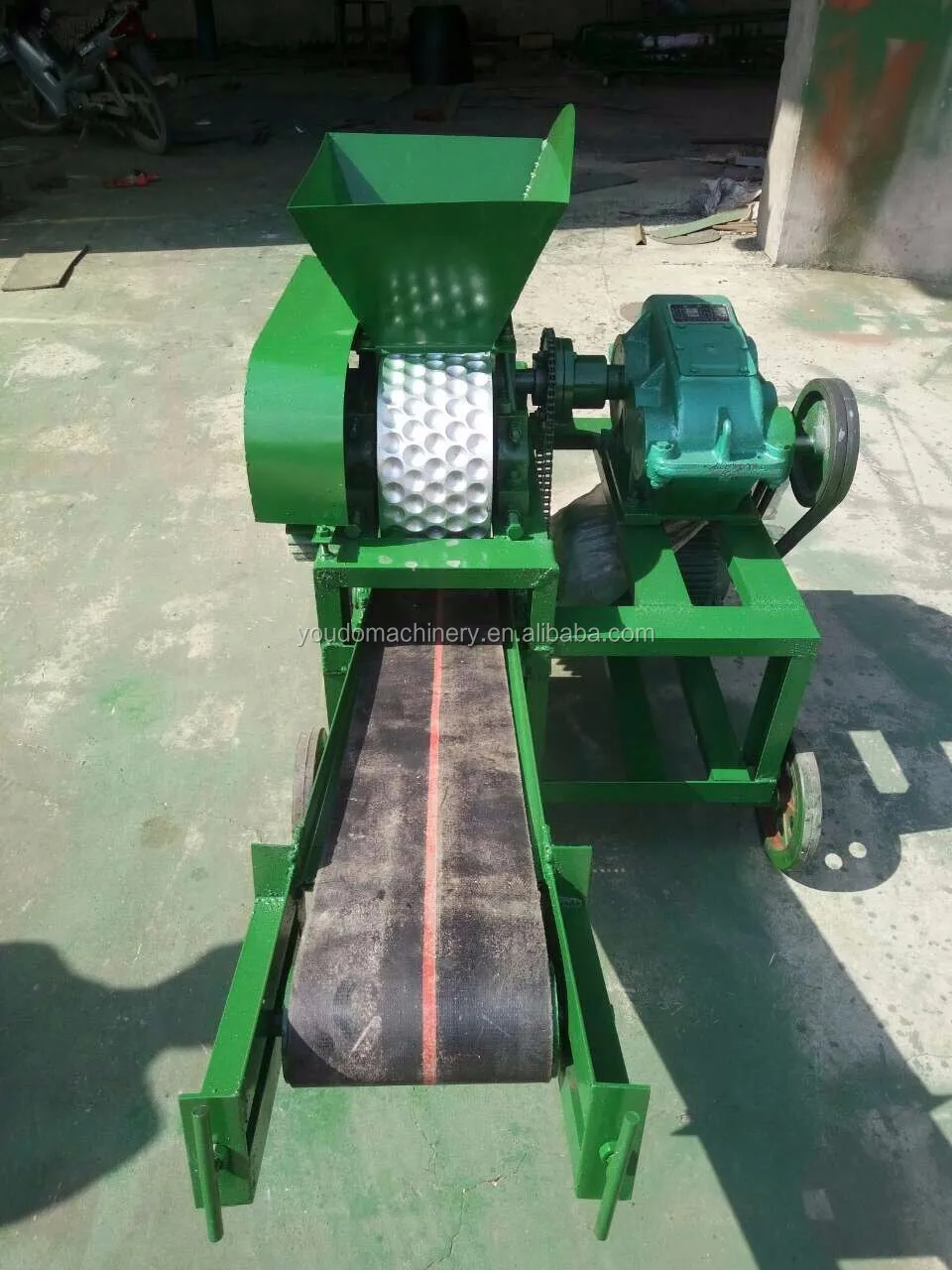

BBQ Charcoal briquette making machine/coal powder ball press machine

Supplier: Kaifeng Youdo Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Cherry Han
Price: $1650.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Video technical support;	Port:	Qingdao;
Dimension(LWH):	250012001400mm;	Warranty:	1 year;
Certification:	SASO;	Condition:	New;
Local Service Location:	None;	Brand Name:	UD;
Roller diameter:	300mm;	Supply Ability:	30 Set/Sets per Month;
Showroom Location:	None;	Production Capacity:	90%;
Pressure:	1500kg;	Packaging Detail:	wooden carton Packing size: 2.61.31.4m Gross weight: 350kg;
Payment Terms:	T/T,Western Union,MoneyGram,Paypal;	Motor Type:	AC Motor;
Raw material:	coal powder/ charcoal powder;	After-sales Service Provided:	Overseas third-party support available;
Capacity:	1-1.5t/h(charcoal) 3-4t/h(coal);	Product name:	Brequitte BBQ making machine;
Place of Origin:	Henan China;	Type:	Briquette Machines;
Applicable Industries:	Manufacturing Plant,Farms,Construction works ,Energy & Mining;

BBQ Charcoal briquette making machine/coal powder ball press machine

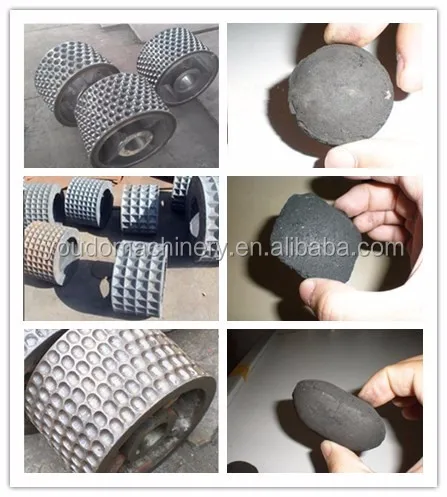

Roller and shapes

Technical parameters for ball press machine

Model	UDHB-300
Pressure	1500 kg
Capacity(t/h)	1-1.5(charcoal) 3-4(coal)
Roller diameter(mm)	300
Out size(mm)	*250012001400*
Power(kw)	5.5

Features

Into a ball high strength, suitable for all kinds of transportation, reduce packaging costs, improve product transport capacity. Compact structure, convenient maintenance, simple operation, short process, low energy consumption, low fault rate and main roller part adopts high quality alloy steel material, greatly improving the wear resistance and compression ability, make the machine has long service life.
