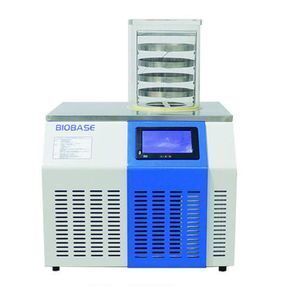

BK-FD12S China Low Price Laboratory Food Mini Vacuum Lyophilizer Freeze Dryer for Sale

Supplier: Biobase Meihua Trading Co., Ltd.
Region: Shandong, China
Contact: Mr Manson Zhang
Price: $800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	220v/380v;	Weight:	130kg;
Dimension(LWH):	7005701050mm;	Color:	Silver;
Power(W):	15kw;	Freeze Drying Time (H):	24;
Supply Ability:	200 Set/Sets per Month;	Certification:	ISO9001:2000;
Warranty:	1 Year;	Material Loading Capacity/shelf (ml):	300;
Port:	Qingdao;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Type:	Drying Oven;	Ice Condenser Capacity (Kg/24h):	4;
Model Number:	BK-FD12S;	Place of Origin:	Shandong China;
Material Loading Capacity (ml):	1200;	USB Interface:	yes;
Packaging Detail:	carton package;	Condition:	New;
Brand Name:	BIOBASE;	Product name:	laboratory freeze dryer;
Shelves:	4;	Freeze Drying Area (m2):	0.12;
After-sales Service Provided:	Overseas service center available;	Vacuum Degree (Pa):	<10;
Delivery Detail:	10-20days;

Home

If you want to know more our products, welcome to our homepage!

BK-FD12S China low price laboratory mini

vacuum lyophilizer freeze dryer

Product Description

Introduction:

The tabletop type and vertical type freeze dryer is suitable for freeze drying test of laboratory biomedical samples.

Widely used drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and

other biological tissue enzymes, freeze-drying technology is applied.

Advantages:

1. The 7 inch LCD display panel.
2. With historical data inquiry function.
3. The machine is equipped with USB interface on control panel.
4. Large capacity Ice condenser trap and without coil inside.
5. Cascade refrigeration technology.
6. The pre-freeze shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying cabinet is transparent which is visual and safe.
9. The shelves are stainless steel, which can be adjustable per the requirements.

Technical Parameters:

Model		BK-FD12S		BK-FD12T		BK-FD12P		BK-FD12PT
Type		Standard chamber		Stoppering chamber		Standard chamber with 8 port manifold		Standard stoppering chamber with 8 port manifold
Final Condenser Temp (℃)		≤-55 or ≤-80		≤-55 or ≤-80		≤-55 or ≤-80		≤-55 or ≤-80
Vacuum Degree (Pa)		<10		<10		<10		<10
Freeze Drying Area (m2)		0.12		0.09		0.12		0.09
Ice Condenser Capacity (Kg/24h)		4		4		4		4
Shelves		4		3		4		3
Material Loading Capacity/shelf (ml)		300		300		300		300
Material Loading Capacity (ml)		1200		900		1200		900
Freeze Drying Time (H)		24		24		24		24
Manifold		/		/		8 pieces		8 pieces
USB Interface		Yes		Yes		Yes		Yes
Drying Chamber (Standard)		Transparent acrylic

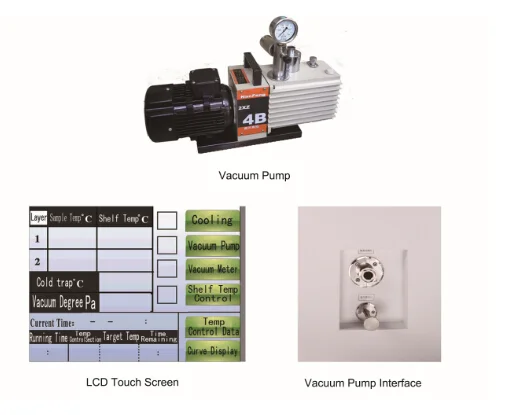

Vacuum Pump (Standard)		Model: 2XZ-2, Speed: 2L/s (China-Made)
Control System		Microprocessor, touch screen
Power Supply		AC220V±10%,50/60Hz
External Size (WDH)		480620920/1370mm
Package Size	Main Body	7005701050mm
	Drying Chamber	350350570mm
	Vacuum Pump	570370190mm
Gross Weight		130kg	135kg		135kg		135kg
Note		Shelf(plate) heating and cold trap(ice condenser) defrosting function are optional; The vacuum pump, standard drying chamber and all other accessories, like valve, flask etc. are standard accessories; The vacuum pump is independently packed in a separate package.
