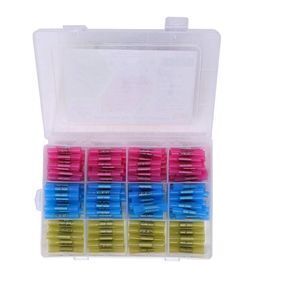

Hampool 200pcs Assorted Waterproof Electrical Heat Shrink Butt Wire Connector Terminals Kit
-
Supplier: Shanghai Hampool Enterprise Co., Limited -
Region: Shanghai, China -
Contact: Ms Sophia Pu -
Price: $6.23 / >=2 pieces -
Min. Order: 2 pieces
Product details
| Minimium shrink temperature: | 80℃; | color: | Red, Blue, Yellow; |
| Package Type: | 200pcs/box; | Selling Units: | Single item; |
| Brand Name: | HP; | Certificate: | RohS ISO; |
| Product name: | heat shrink butt connectors; | Type: | Crimp Terminal; |
| minimium fully insulated temperature: | 200℃; | Model Number: | HP-ABOX(DS)-200; |
| Operating Temperature: | -55℃~125℃; | Material: | HDPE; |
| Feature: | water proof, flexible, stable,electric conduction; | Single package size: | 20X15X5 cm; |
| Place of Origin: | Shanghai China; | Shrink Ratio: | 3:1; |
| Package Preview: | https://sc01.alicdn.com/kf/H603daf06bbcf479892aa32f135ec2bfad.jpg_640x640.jpg; | Single gross weight: | 0.5 KG; |

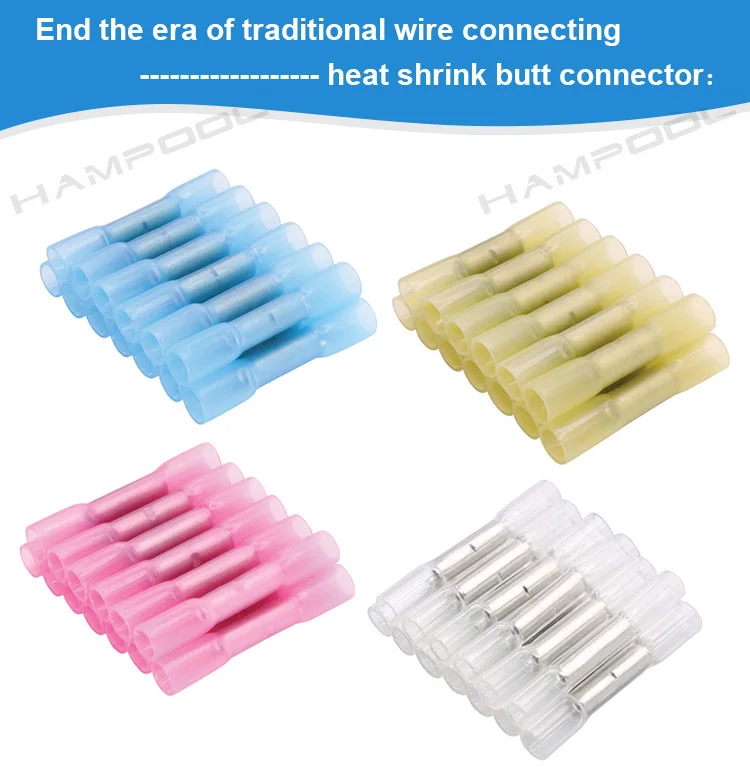

Product Exhibition
Click here to send inquiry!
Technical Data
| Property | Specification Requirement | Test Method | Typical Value |
| Tensile strength (Room temp.) | Min. 10.4Mpa | UL224 | 17.2Mpa |
| Elongation at break (Room temp.) | Min. 200% | UL224 | 280% |
| Tensile strength after aging (158℃ 168hrs) | Min. 7.3Mpa | UL224 | 11.5Mpa |
| Elongation after aging (158℃ 168hrs) | Min. 100% | UL224 | 200% |
| Voltage withstand (Un-aged) | Withstand 2.5kV for 1 minute and breakdown | UL224 | Pass |
| Voltage withstand (Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown | UL224 | Pass |
| Copper corrosion (158℃ 168hrs) | No corrosion of bare copper | UL224 | No sign of deg. |
| Copper stability (158℃ 168hrs) | No sign of degradation (min. elongation 100%) | UL224 | Pass |
| Cold bend (-30℃ 1hrs) | No crack | UL224 | Pass |
| Maximum secant modulus (2%) | 173Mpa | UL224 | Pass |
| Volume resistivity | Min. 1014Ω·m | UL224 | Pass |
| Heat shock (250℃ 4hrs) | No crack | ASTM D2671 | Pass |
| Dielectric strength | >15.8kV/mm | ASTM D2671 | >25kV/mm |
Click here for free sample!
Product Details
Click here to send inquiry!
Customer Feedback
Click here for free sample!

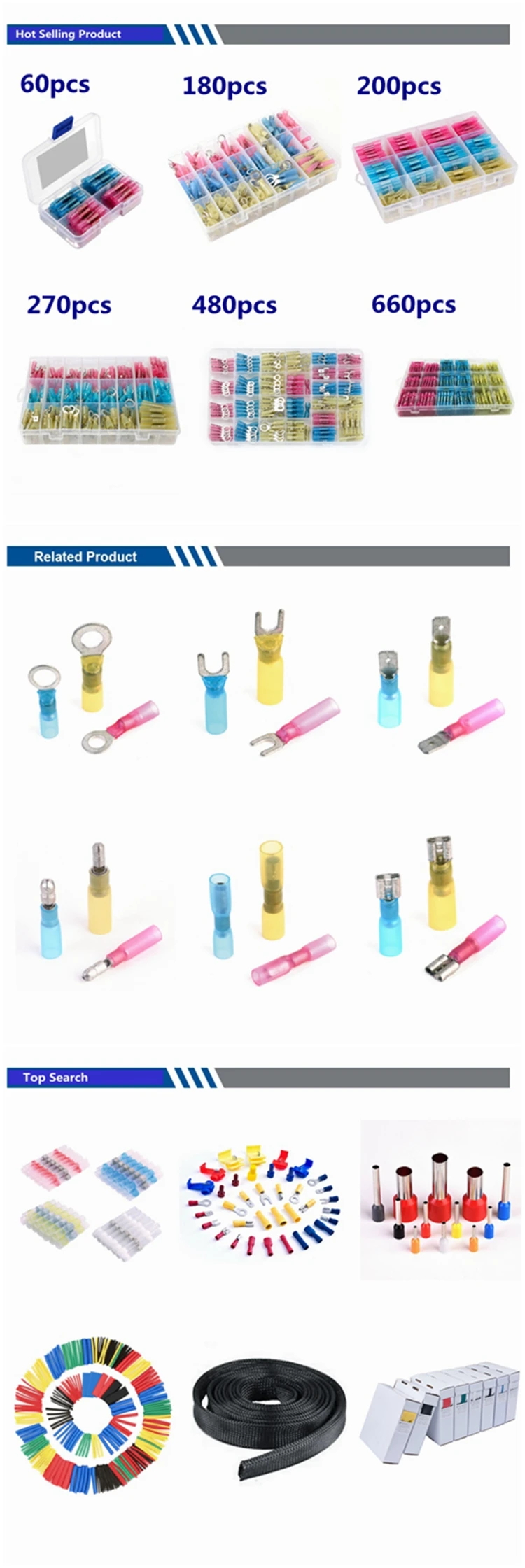

Related Product
Click here to send inquiry!
Packing and Shipping
Click here for free sample!
Company Information
Hampool Enterprise is a professional company to supply wire and cable systematic protect solutions. We cooperated with German company, America company on technology and products. We have more than 10 years experience in this industry. With strong technology strength, Hampool develop many series high quality products and get good reputation in European market and North American Market. After so many years development, Hampool has been a well known brand in many countries, and meanwhile Hampool become the pioneer brand to shift from “Made in China” to “Created in China".
Click here for free sample!
FAQ
Click here to send inquiry!
