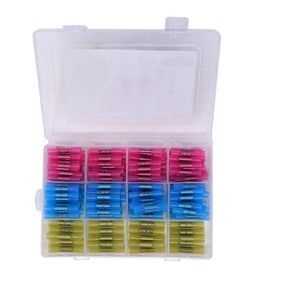

Hampool 200Pcs Automotive Crimp Waterproof Heat Shrink Cable Terminals Heat Shrinkable Butt Connectors

Product details
Packaging Detail:200pcs/box;Certificate:RohS UL SGS;
Feature:water proof, flexible, stable,electric conduction;minimium fully insulated temperature:200℃;
Single gross weight:0.25 KG;Model Number:HP-DS-06;
Material:HDPE(polyolefin);Package Preview:;
Single package size:25X18X4 cm;Type:Crimp Terminal;
Minimium Shrink Temperature:80℃;Selling Units:Single item;
Place of Origin:Shanghai China;color:red, blue, yellow, transparent;
Brand Name:HP;Shrink Ratio:3:1;
color class:milk trnasparent;
Product Exhibition

Click here to send inquiry!

Technical Data
Property Specification Requirement Test Method Typical Value
Tensile strength (Room temp.) Min. 10.4Mpa UL224 17.2Mpa
Elongation at break (Room temp.) Min. 200% UL224 280%
Tensile strength after aging (158℃ 168hrs) Min. 7.3Mpa UL224 11.5Mpa
Elongation after aging (158℃ 168hrs) Min. 100% UL224 200%
Voltage withstand (Un-aged) Withstand 2.5kV for 1 minute and breakdown UL224 Pass
Voltage withstand (Aged) Withstand at least half of un-aged breakdown
voltage for 1 minute and breakdown
UL224 Pass
Copper corrosion (158℃ 168hrs) No corrosion of bare copper UL224 No sign of deg.
Copper stability (158℃ 168hrs) No sign of degradation (min. elongation 100%) UL224 Pass
Cold bend (-30℃ 1hrs) No crack UL224 Pass
Maximum secant modulus (2%) 173Mpa UL224 Pass
Volume resistivity Min. 1014Ω·m UL224 Pass
Heat shock (250℃ 4hrs) No crack ASTM D2671 Pass
Dielectric strength >15.8kV/mm ASTM D2671 >25kV/mm
