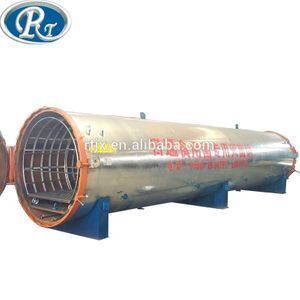

Mushroom Farm Use Double Door Horizontal Industrial Autoclave Price For Sale

Supplier: Zhucheng Ritong Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Angel Fan
Price: $7400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Heating way:	steam boiler/coal, wood;	Weight:	according to the size;
Advantage:	Energy Saving;	Port:	qingdao;
Control system:	automatic/semi-automatic;	Voltage:	220V 380V;
Function:	high temperature high pressure;	Material:	SS304/Q345R;
Place of Origin:	Shandong China (Mainland);	Usage:	Fruit & Vegetable;
Delivery Detail:	25-30 days after receiving the deposit;	Product name:	Industrial Autoclave Price;
After-sales Service Provided:	Engineers available to service machinery overseas;	Usage:	mushroom substrate sterilizing;
Power(W):	customized;	Warranty:	1 year;
Type:	Autoclave;	Supply Ability:	5 Set/Sets per Month Industrial Autoclave Price;
Dimension(LWH):	customized;	Model Number:	RT700--RT1500;
Payment Terms:	L/C,T/T,MoneyGram,trade assurance;	Certification:	CE ISO;
Packaging Detail:	Sea Worthy(The machine is possible to pack in wooden case for LCL or nude pack after wrapping by plastic film for FCL.);	Brand Name:	Ritong;
Design Temperature:	147 Degree Centigrade;	Condition:	New;
Category:	autoclave;	Sterilizing way:	steam;

Mushroom Farm Use Double Door Horizontal Industrial Autoclave Price For Sale

Product Description

Industrial autoclave price

TECHNOLOGY DETAILS

1. Design of door: manual quick open/close system

2. Electric heats water to generate steam, without environmental pollution.

3. Electric heater adopts new type conduction, high efficiency and long working life.

4. Multiple safety interlocks ensure safety during process.

5. Insulation layer: rock wool ensures heat saving.

6. Full-automatic control, adopt PLC control system.

Technical parameter

Model	RT-900			RT-1000			RT-1200			RT-1300
	1	2	3	1	2	3	1	2	3	1	2	3
Diameter(mm)	900			1000			1200			1300
Cytinders length(mm)	1800	2500	3000	2200	2500	3000	3000	3600	4000	3000	3600	4000
Material	SUS304/Q235B
Design temperature	147°C
Experiment pressure	0.44Mpa
Design pressure	0.35 Mpa

Advantages

The Coal and Wood Food Sterilizer is our patented product,which is professional for edible fungus sterilization.
It has the following features:
Don't need boiler, cost saving
High efficiency and energy saving can save 50% than conventional sterilization
High temperature and high pressure sterilization is more thoroughly and no dead angle
Don't need install, buy & play
With normal pressure vessel, safety and reliable

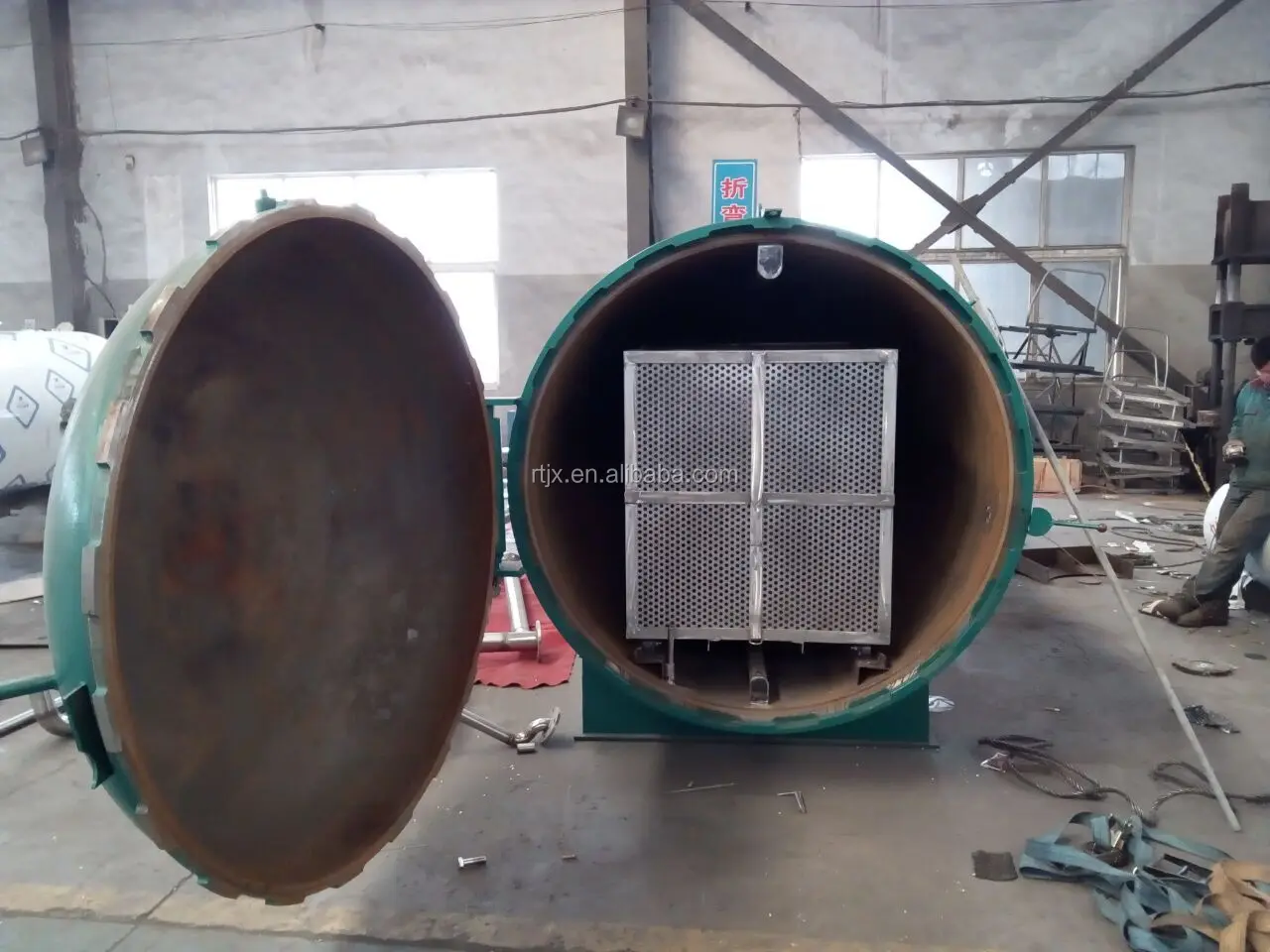

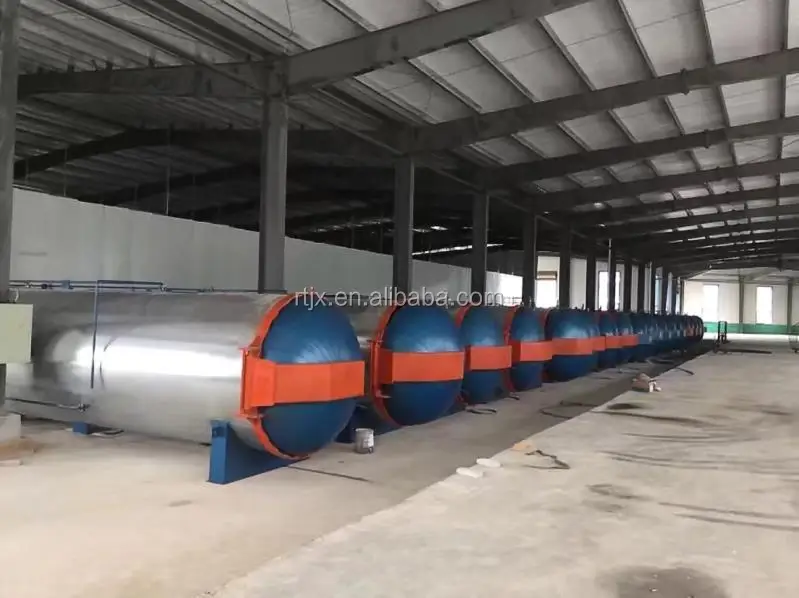

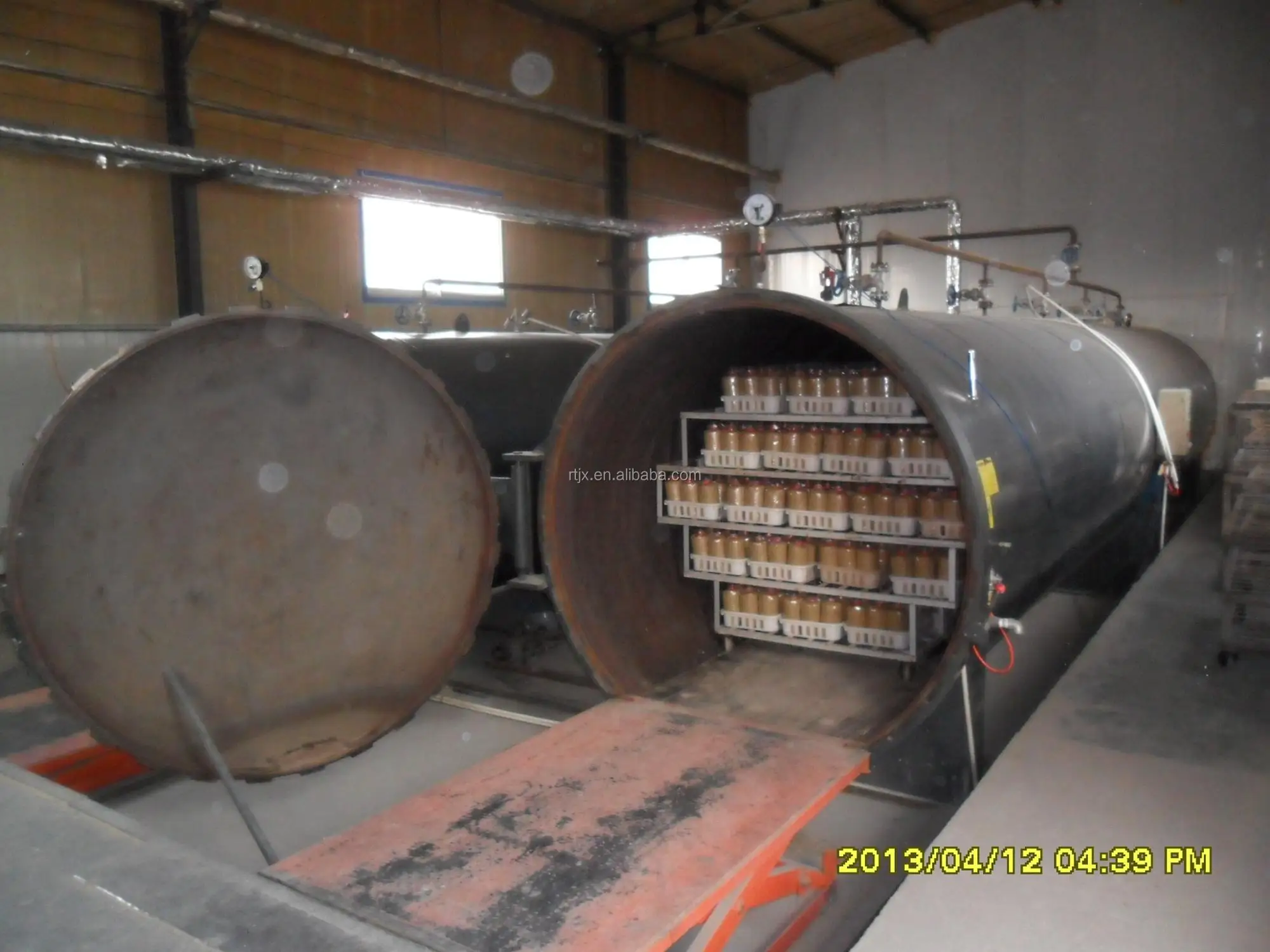

More photos

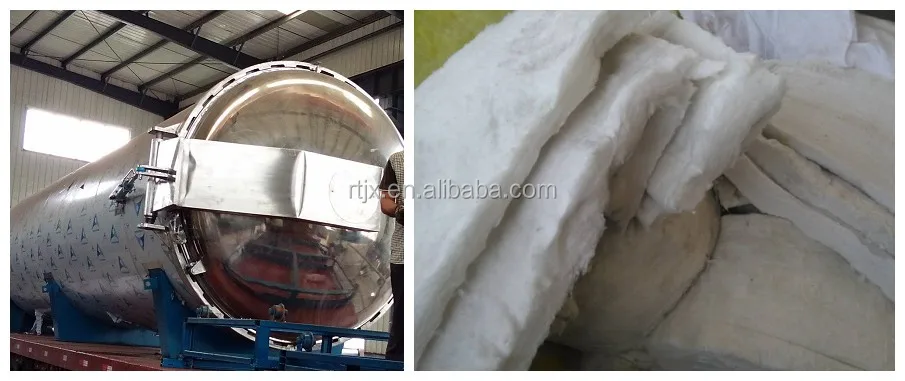

Insulation process of the autoclave

Firstly, drilling holes used in the following steps in the tank in advance.

Secondly, put steel rings welded on the tank. The rings are used to fix the mineral wool.

Thirdly, use mineral wool, the material of which is aluminium silicate, to wrap around the tank

body for preservation.

Lastly, use insulation board to be welded around the tank. It is finished.

Fault Detection

Detection of cracks or defects in metallic materials or components X-ray inspection

Accessories Parts

1. Handle Wheel: Manual method, firstly need to rotate handle when close door, then adopt multiple safety interlocks to ensure safety during vulcanizing process.

2. Arm: Used to connect front door with cylinder body of vulcanization equipment. It makes door keep stable.

3. Pressure Gauge: Measure and indicate the pressure inside autoclave, testing ability is more sensitive. Please add pressure slowly up to setting value during vulcanizing, otherwise gauge will be damaged easily if overload pressure.

4. Control Box: Buttons control method, adopt advanced Schneider Relay and electric appliance fittings of famous brand in China. We can also supply touch screen view panel of Siemens if customers choose full-automatic control machinery.

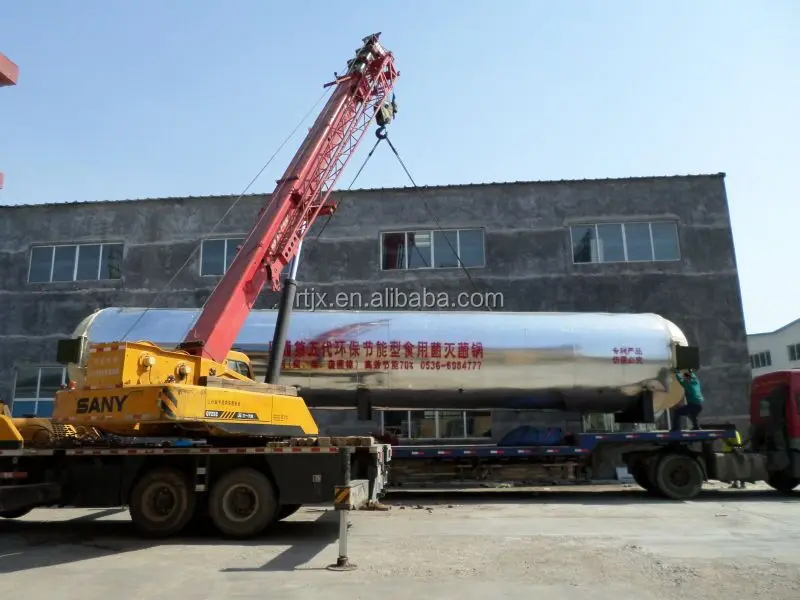

Packaging & Shipping

We will delivery your goods by LCL/20' FCL/40'FCL depending on your order. Before delivery, our professional engineer will do trial run for each machine to check and confirm everything is workable, you also can come to our factory for testing together with us.when loading, our workers will fix the machine tightly in the container to ensure the safety in the transportation.
