Factory Directly Price Electricity Air Heating Rubber Vulcanizing Autoclave

Product details
Control system:automatic with PLC;Warranty:1 Year;
Heating Method:steam boiler/electricity;Application:old tire / rubber industry;
Payment Terms:L/C,T/T,Western Union,Secure payment;Function:rubber industry;
Port:Qingdao;Machine Type:pressure vessel;
Certification:CE,SGS;After-sales Service Provided:Field maintenance and repair service;
Packaging Detail:International Standard Packing, Export Wooden Case Packing, As per Buyer Requirements.;Brand Name:Ritong;
Energy consumption:Energy efficient;Supply Ability:2 Set/Sets per Month rubber vulcanized process;
Insulation thickness:50mm;Condition:New;
Vulcanizing way:hot steam/hot air;Power(W):as per the dimension;
Place of Origin:Shandong China (Mainland);Dimension(L*W*H):customized;
Voltage:380V/415V;Weight:as per the dimension;
Name:rubber vulcanizing autoclave;Material:SUS304/Q345R;

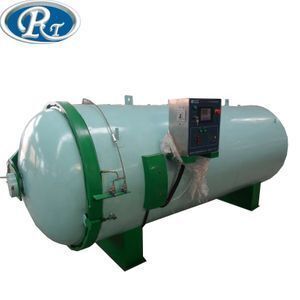

Factory Directly Price Electricity Air Heating Rubber Vulcanizing Autoclave



Product Description

  rubber vulcainizing autoclave



The vulcanizing machine are divided into two series: steam vulcanizing boiler series and hot air vulcanizing boiler series. Each series has three heating mediums: steam, electric and conduction oil.

 Our equipment which has advantages of stable and reliable performance is the most widely used steam vulcanizing boiler, the temperature, pressure and time can be controlled automatically and it also easy to operate. And the equipment can save 35% of energy than other traditional equipment.

Working principle for steam vulcanizing autoclave

       The steam enter into the steam diffusion tube by entrance of steam which at the bottom of the steam vulcanizing boiler and the entrance can be controlled by automatic valve. The steam diffusion tubes vertical arrangement in the bottom of the tank. The small holes which diameters are 3mm,4mm and 5mm on the steam diffusion tube are arranged according to certain rules and angel to ensure that the steam spread in the tank evenly. Thus it can prevent the different quality of the product because of the uneven steam. After set working procedures, the heating, heat preservation, vulcanization and etc can be finished by automatic control system. The equipment stop working and give alarm after all procedures finished.

Working principle for electricity steam vulcanizing autoclave

     Electric heated tubes are arranged in the bottom of the tank according to certain rules, the heat exchanger linked the electric heated tubes and the water channel. The height of the sink is 5~15mm. The steam which produced by electric heated tubes and water spread from down to up evenly until turn into condensate water pour into the sink after touched the wall of tank and then heat again. The temperature of the tank evenly and the pressure has no error, so it can prevent the different quality of the product because of the uneven temperature and pressure. After set working procedures, the heating, heat preservation, vulcanization and etc can be finished by automatic control system. The equipment stop working and give alarm after all procedures finished.



 Available Scope



TECHNICAL PARAMETERS

  Tire Retreading Machines

TYPE

MOLD

CONTROL

DIAMETER(mm)

LENGTH (mm)

MEDIUM

DESIGN PRESSURE (Mpa)

TEMPERATURE (°C)

ELECTRICAL

DN0102A.3

AUTOMATICAL

1000

2,000

PRESSURE AIR

0.35

120~310

ELECTRICAL

DN0204A.3

2000

4,000

0.35

120~310

ELECTRICAL

DN0206A.3

2000

6,000

0.35

120~310

ELECTRICAL

DN0304A.3

3000

4,000

0.35

120~310

ELECTRICAL

DN0410A.3

4000

10,000

0.35

120~310

ELECTRICAL

DN0509A.3

5000

9,000

0.35

120~310

1. TYPE: Electical heating , steaming for boiler , circulation oil

2. MEDIUM : air, water ,steaming, circulation oil

3. CONTROL MANNERS : Manual ,semi-automatic and fully automatic

4. Diameter, length ,design pressure and temperature fabrication under customers requirements .



More photos

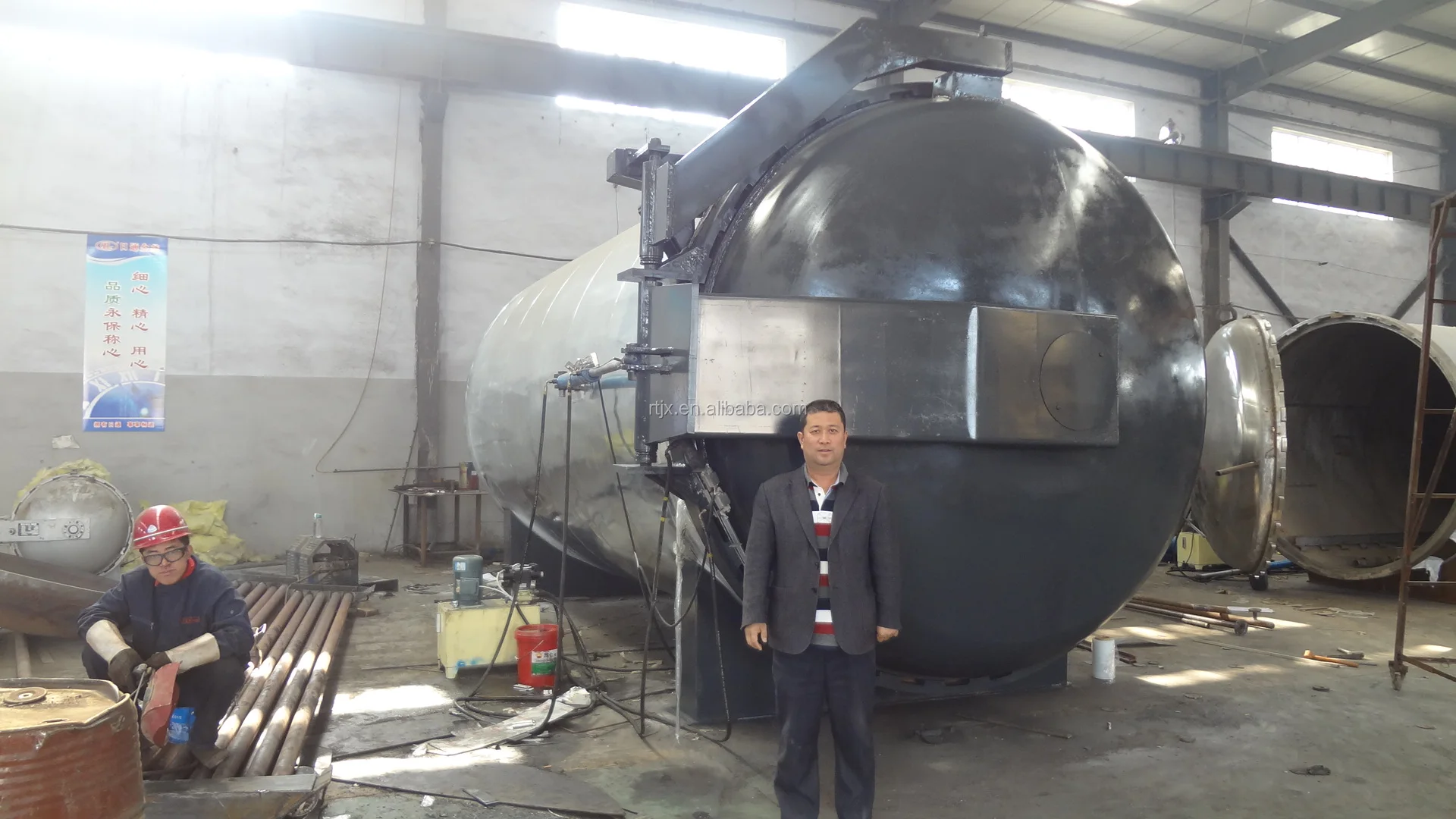

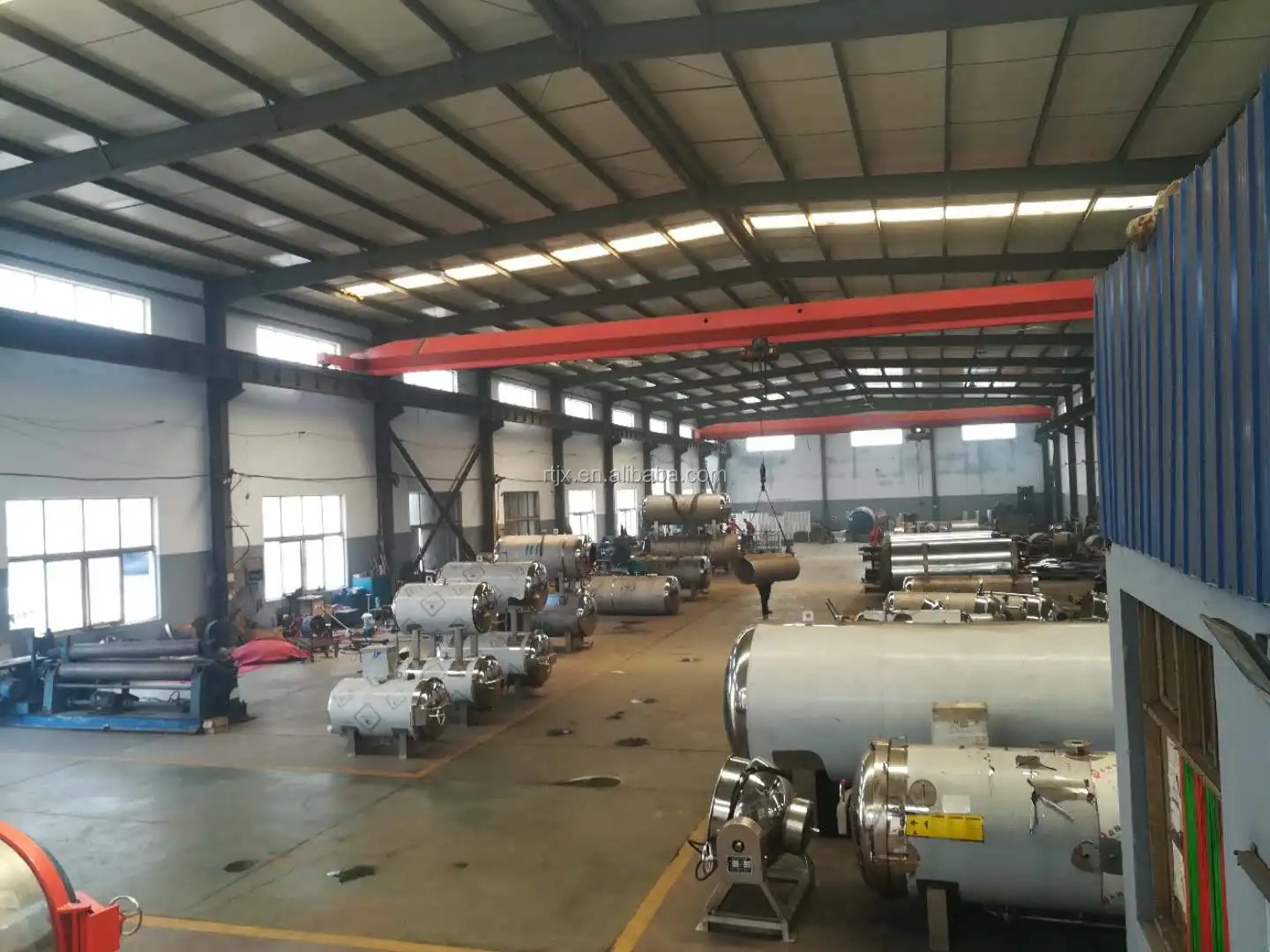

 Workshop

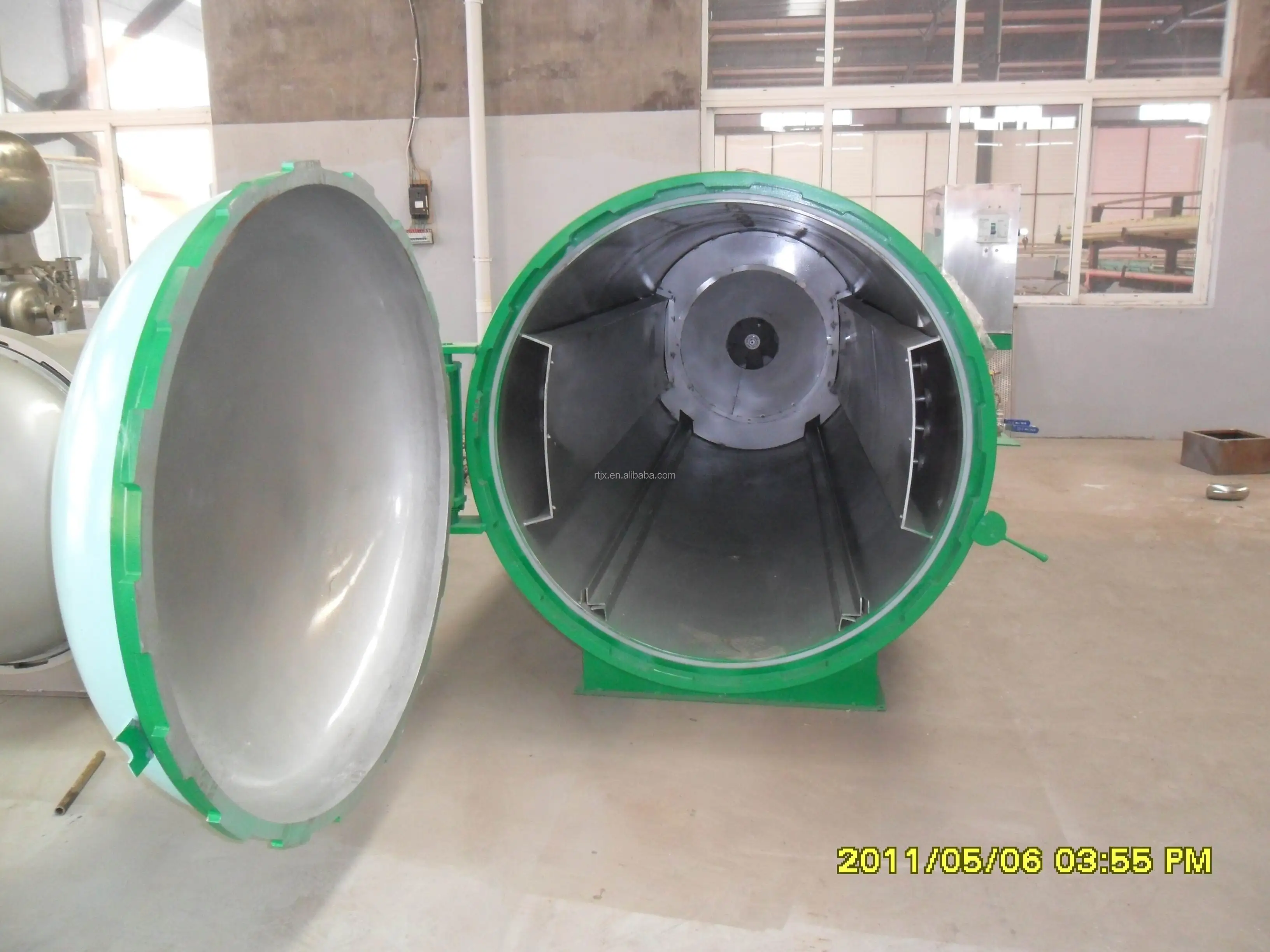

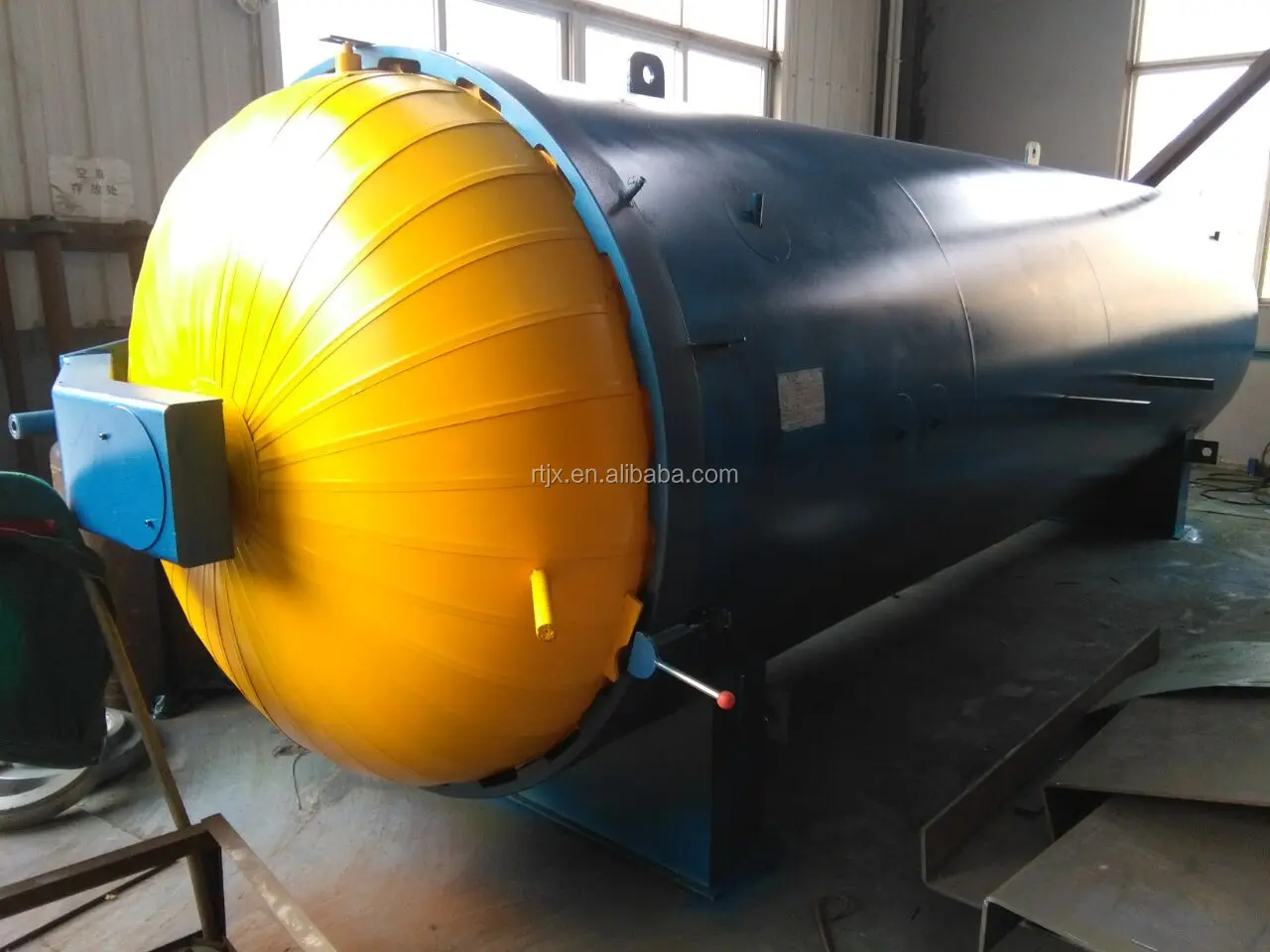

Finished Vulcanizer







Packaging & Shipping





We will delivery your goods by LCL/20' FCL/40'FCL depending on your order. Before delivery, our professional engineer will do trial run for each machine to check and confirm everything is workable, you also can come to our factory for testing together with us.when loading, our workers will fix the machine tightly in the container to ensure the safety in the transportation.







Our Services



Site Planning and Proposal Design
to provide targeted, energy-efficiency technology solution according to
the request of client, and to plan the supporting facilities of sterilization equipment in details based on customer’s site.
Turnkey Service
From technical scheme design to project implementation and commissioning, sterilization equipment specialists provide technical services in the whole process to save your worry and effort, to experience one-stop engineering.
Periodic testing and maintenance of key equipment
Reduce equipment failure and abnormal shutdown and improve reliabiligy, professional service for emergency fault protects equipment and prolong life to reduce overall operating costs





FAQ





FAQ

QWhat’s the delivery term for making business with us?

A:FOB, CFR & CIF optional; It’s mainly depend on client’s requirement;



Q: Do you have machines in stock?

A: Yes, but just the small-scale machines. Machines are different with other products, most of the large-scale machines are designed according to our customers' requirements, different customers have different production requirements, so the technical parameter is different for most machines. On the other hands, most of the our machines will cover a large area, so once the machines are finished, we will effect shipment after QC



Q: What’s the lead time after placing order ?

A:Usually it takes about 25~30 days after we received your deposit.

However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.



Our equipment can be customized, leave an inquiry to know more details about price, packing, shipping and price.
