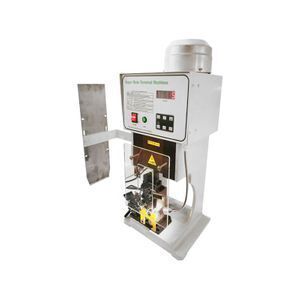

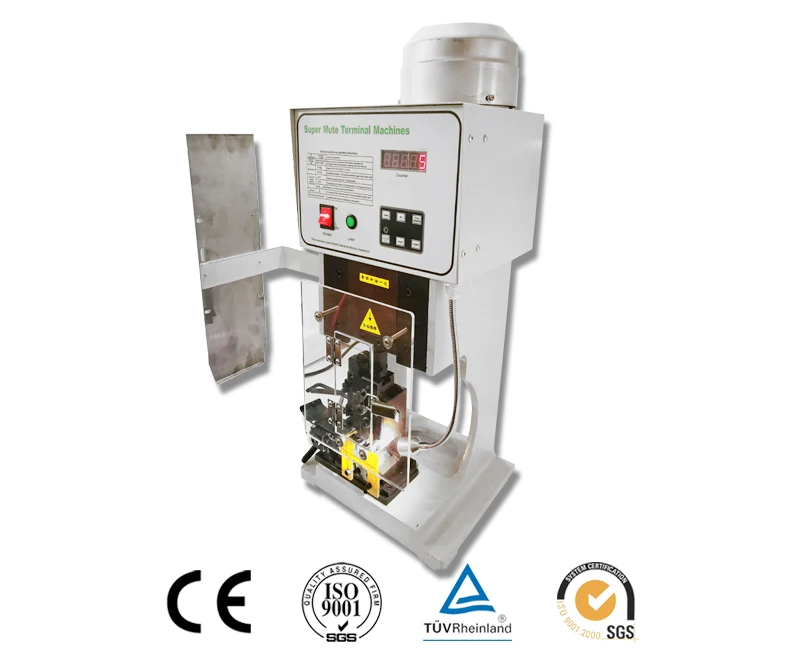

EW-09 Automatic terminal wire crimping machine

Product details
Port:SHANGHAI;Crimping force:1000KG-8000KG;
Packaging Detail:Export wooden case;Power supply:220/110V/60/50HZ;
Application:DC terminals, AC terminals , Single terminals ,Continuous terminals;Motor power:0.35KW;
Model:EW-09;Place of Origin:China;
Model Number:EW-09;Brand Name:EW;
Weight:26KG;Usage:Crimp;
Dimension (L*W*H):218*188*460mm;Payment Terms:T/T,Western Union;
Supply Ability:500 Set/Sets per Month;Stroke:30mm;



Model

Crimping force

Motor power

Weight

Dimension (L*W*H)

EW-09A

1000KG

0.35KW

26

218*188*460mm

EW-09B

1500KG

0.55KW

38

410*410*770mm

EW-09C

2000KG

0.75KW

45

410*410*770mm

EW-09D

3000KG

1.1KW

49

430*510*770mm

EW-09E

4000KG

1.5KW

89

430*620*770mm

EW-09F

8000KG

1.5KW

99

430*620*770mm



+

Stroke

30mm

Power supply

220/110V/60/50HZ

Application

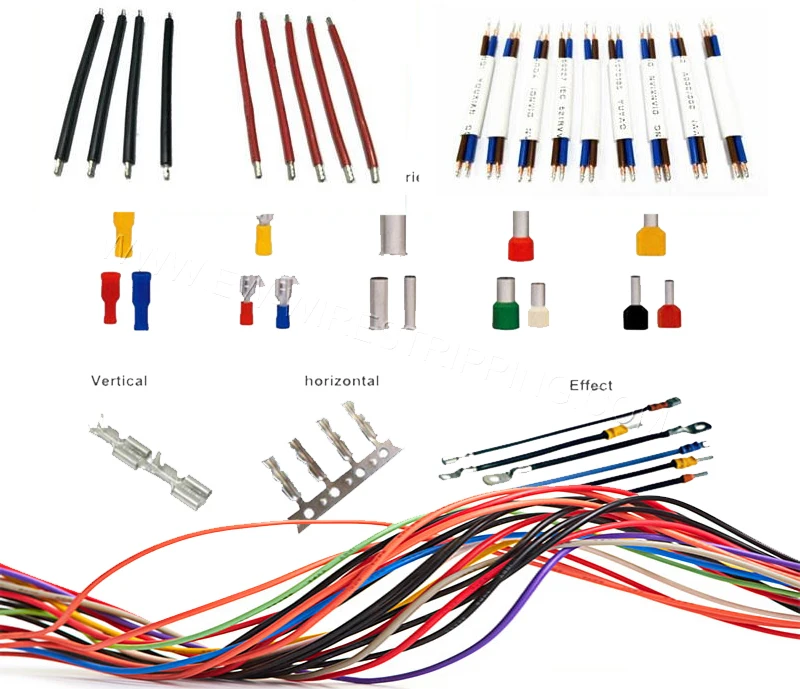

DC terminals, AC terminals , Single terminals ,Continuous terminals,Single-action pedal

CE-Conformity

The EW-09 series fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility
