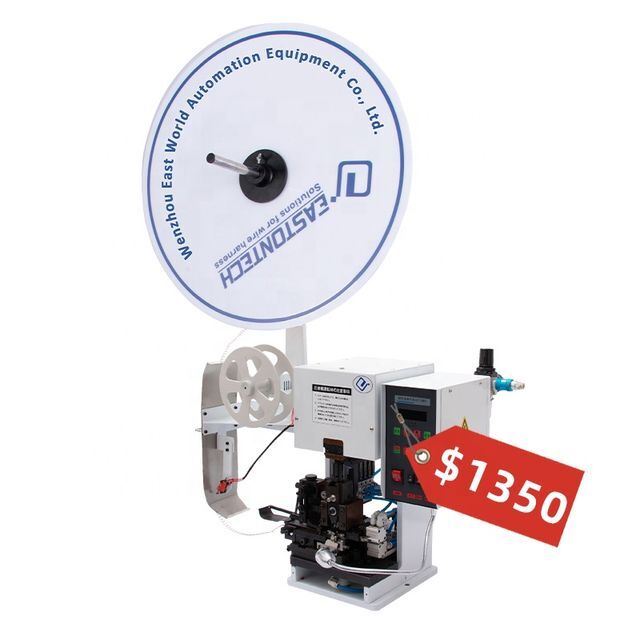

EW-50A Automatic wire stripping and crimping machine Molex JST 1.5T 2T 3T

Product details
Applicable wire outer diameter:AWG32-AWG20port:Shanghai
Stroke:30 mm (1.18 in)power supply:220V/110V/50HZ/60HZ ,400W
brand:electronic warfareCrimping force:1.5T
payment terms:Western Union, wire transferStripping Length:1-10 mm (0.04-0.39 in)
usage:Strip and crimpplace of origin; place of origin:China
Supply capacity:500 sets per monthPackaging Details:export wooden box
model:EW-50A

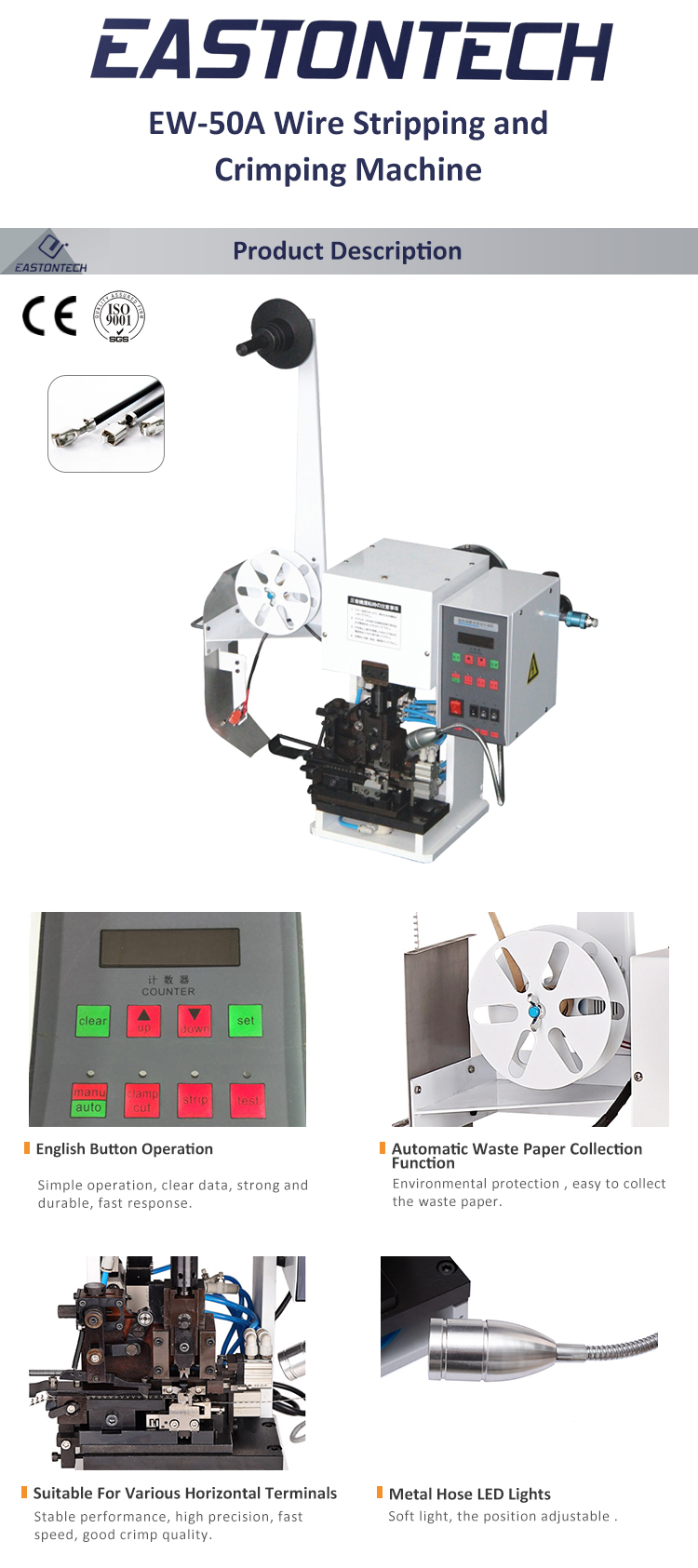

1. Stripping and crimping machine
2. High stability, ultra-quiet working environment.
3. It is designed with automatic peeling, jog and automatic return functions.
4. The stripping part adopts famous brand pneumatic components, which can complete the stripping operation quickly, efficiently and stably.



Model

EW-50A-1

EW-50A-2

EW-50A-3

Applicable wire diameter

AWG36-AWG20

AWG36-AWG16

AWG26-AWG16

Stripping length

1-10mm

1-10mm

1-10mm

stroke

20mm

20mm

30mm

crimp force

1.5T

2T

3T

motor speed

400W

750W

1100W

probability

750W

1500W

1500W

air pressure

0.3-0.4mpa

0.3-0.4mpa

0.3-0.4mpa

strength

220V/110V/50HZ/60HZ

220V/110V/50HZ/60HZ

220V/110V/50HZ/60HZ

northwest

80kg

80kg

120kg

aspect

530*400*830mm

530*400*830mm

500*450*1000mm
