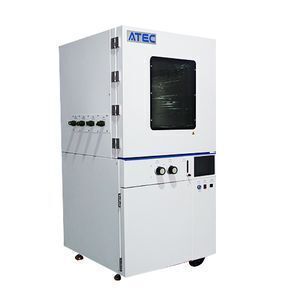

Labortaory Use Stainless Steel Vacuum Drying Oven

Supplier: Chongqing ATEC Lab-Instrument Co., Ltd.
Region: Chongqing, China
Contact: Mr. Jary Liu
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application field:	Used in lab,chemical, printing, battery and other industries.;	After-sales Service Provided:	Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service;
Condition:	New;	internal dimensions:	W600D600H600mm;
Payment Terms:	D/P,T/T;	Application:	Used in baking in industries such as electronic semiconductors.;
Certification:	CE;	Weight:	250Kg;
Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing,IC Semiconductor;	Operating temperature range:	Room temperature +20~200°C;
Key Selling Points:	High-accuracy;	Vacuum degree:	≤100Pa;
Voltage:	220V;	Packaging Detail:	plastic mask and foam film are used as internal packaging,and the out packing is packed in plywood case.;
Supply Ability:	5000 Set/Sets per Year;	operation functionion:	LED digital display;
temp.controller:	PID control;	Place of Origin:	Chongqing,China;
Power(W):	1.5KW~4.5KW;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Energy & Mining,Colleges and universities Research institutes;
Pressure Range:	101- 0.1KPa(760-1torr);	Brand Name:	ATEC;

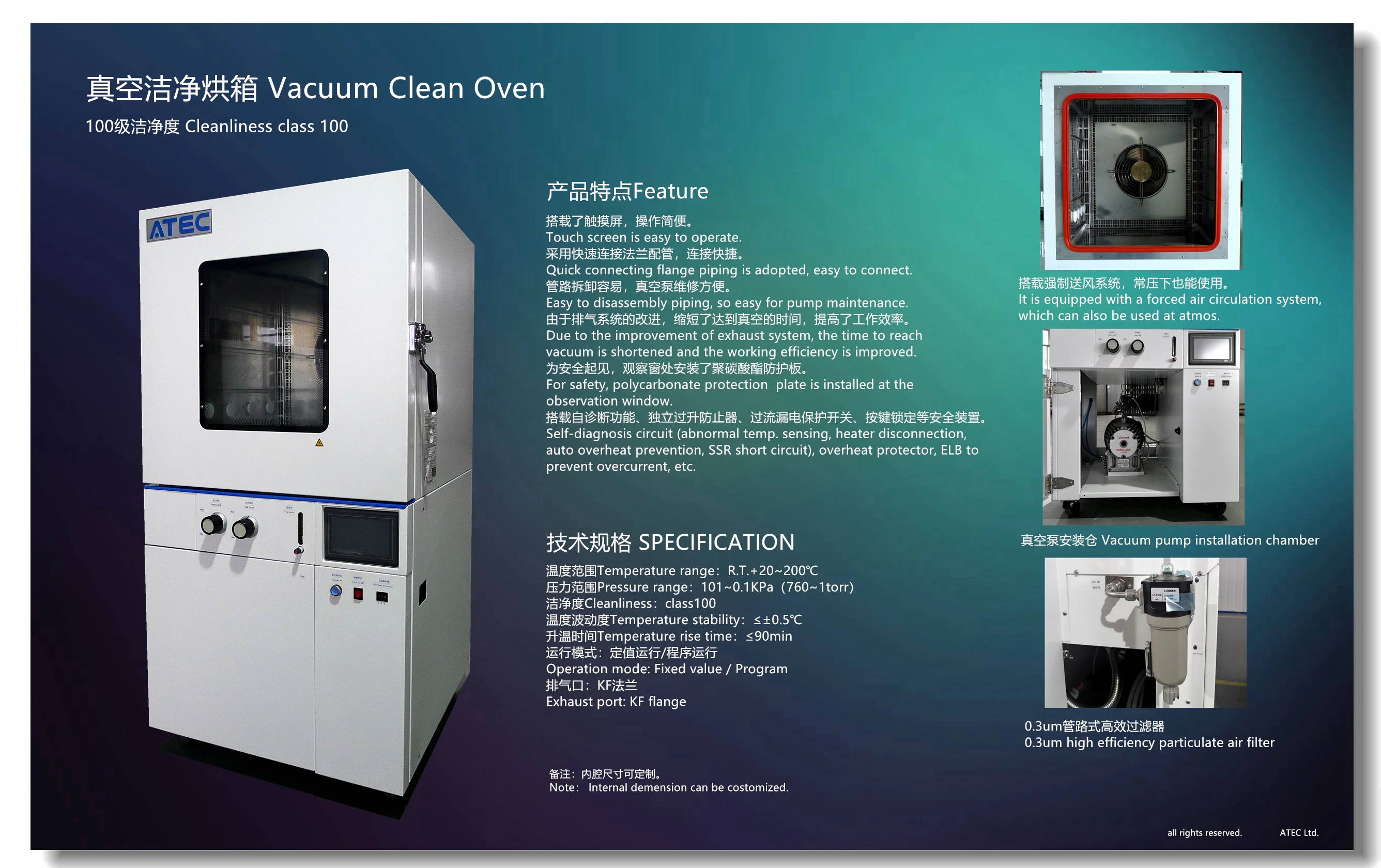

type:	Vacuum Clean Oven;	Type:	Vacuum Clean Drying Oven;
Port:	Shanghai,Guangzhou port of China;	Cleanliness:	Class 100;
Dimension(LWH):	W820D820H1650mm;	Warranty:	Unavailable;

Product Display

Labortaory Use Stainless Steel Vacuum Drying Oven

Model	AVO010	AVO100	AVO200	AVO500	AVO1000
Temperature range	+20 ° C ~ 200 ° C
Vacuum range	101 to 0.1 kPa (760 to 1 Torr)
Temperature rise time	about 80min
Temperature adjustment accuracy	±1.0°C (at200°C)
Nominal internal volume	27L	91L	216L	512L	1000L
Inner box size mm(W×D×H)	300×300×300	450×450×450	600×600×600	800×800×800	1000×1000×1000
Dimensions mm(W×D×H)	510×460×774	670×670×1500	820×820×1650	1020×1020×1850	1300×1280×2110
Weight	70kg	190kg	290kg	450kg	1000kg
Power Supply Capacity	AC22V 5A	AC220V 11A	AC220V 15A	AC220V 31.5A	AC380V 27A

Characteristics

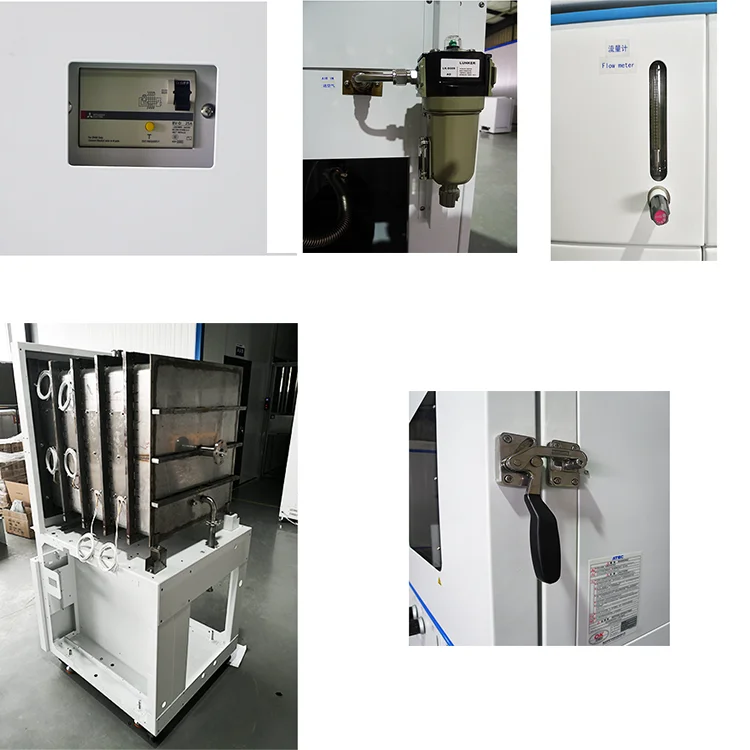

1: A vacuum pump installation compartment is installed in the box to play an effective role in a limited space.
2: Quick connection flange piping is adopted for easy and convenient connection.
3: The removal of the piping is relatively simple, so the maintenance of the vacuum pump is also very easy.
4:Improvements in the exhaust system have greatly shortened the time required for the vacuum to reach,

thereby improving work efficiency.
5:Digital settings can be realized through dedicated function menu keys and up and down keys,

with program running function.

Security
1: Self-diagnostic circuit (temperature sensing abnormality, heater disconnection, automatic over-rise prevention,

SSR short-circuit), over-rise preventer, leakage protection switch to prevent overcurrent, key lock and other safety functions.
2: To ensure safety, a protective panel made of resin is installed on the observation window.
