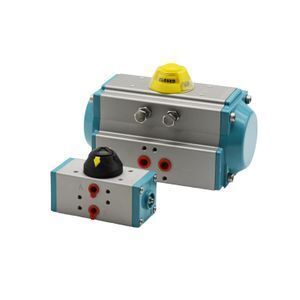

HPA Series Quarter-Turn Double Acting and Single Acting Pneumatic Rotary Actuator

Product details
Air Source Pressure:3~8bar;Packaging Detail:Catons, box, pallets;
Connecting thread:HPA032~HPA40 G1/8",HPA063~HPA270 G1/4";Operating Temperature:Normal: 20~80℃ High:-20~+160℃ Low:-40~+80℃;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Protection Level:Weather proof;
Output torque:Double acting:3.1~4944Nm Single acting:9.4~8000Nm;Type:Actuator;
Angle of Revolution:90°±5°;Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Farms,Construction works ,Energy & Mining;
Place of Origin:Zhejiang China;Connecting hole type:Octagon or Square;
Port:SHANGHAI/NINGBO;Brand Name:HEARKEN;
Material:Extruded aluminum;Supply Ability:2000 Piece/Pieces per Month;
Structure:Angle rotary(Normal:90°, Optional:120°, 135°, 180°);Working medium:Dry, clean and noncorrosive gas;
Connecting thread standard:ISO5211, DIN3337, VDI/VDE3845 and NAMUR;

  Description

The Hearken Part-Turn Pneumatic Actuators provide a uniform torque in a sleek case that is used both for the double acting and single acting, The Pneumatic Actuators are avaliable with a variety of accessories and various options, we supply the drives individually or directly on a fully assembled fitting.  The actuators meet ISO5211/DIN3337 ,VDI/VDE 3845 for accessories,Every actuator is hydraulically tested,certified and guaranteed for a minimum of 500,000 Cycles.





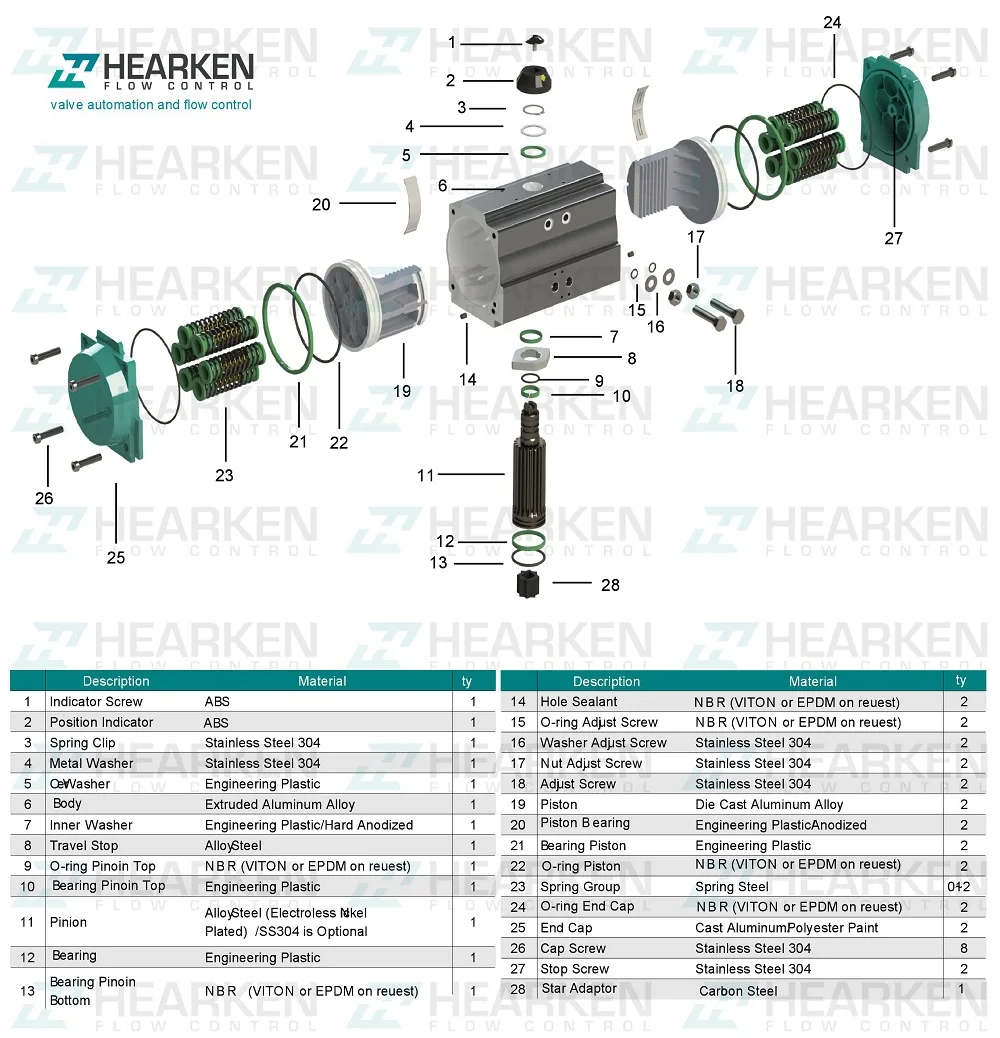

  Main Features & Characteristics



Extruded Aluminum Body
Die-Cast Aluminum End Caps

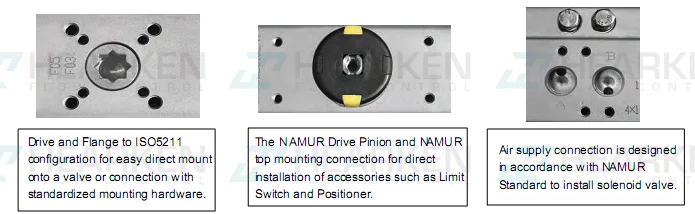

Position Indicator with NAMUR slot
Blow-Out Proof Pinion
Dual Opposed Rack Pistons
Linear Torque Output (DA Actuator)
Adjustable Travel Stops
NAMUR Solenoid Mount Design

  General Applications



HPA Series Quarter-turn Pneumatic Actuators are specifically designed and remote for control of any quarter-turn application, We can provide a wide range of torque outputs to suit quarter turn ball valves, Butterfly Valves or Rotary plug valves, dampers etc..for complete valve automation solutions.



  Working Pressure   : From 2 bar up to 8 bar.



-Standard Temperature: -20℃+80℃

-Low Temperature: -50℃+80℃

-High Temperature: -15℃+150℃

   Operating Conditions

 Operating media: dry or lubricated air, the non-corrosive gases or oil

Travel Adjustment: Have adjustment range of ±5º for the rotation at 90º

Lubrication: Under normal operating condition,not need accrete lubricant.

Application: Either indoor or outdoor.

   Range of Standard Accessories are availiable for direct mounting

 -Solenoid Valve

-Limit Switchboxes

-Positioners

-Declutchable Manual Override Gearbox

-High Visibility Indicator



* All Actuators are manufactured in Registered in ISO9001~2000 Facility

* All Actuators are Inspected and Tested In Factory

* Each Actuator is marked with A unique serial number for full traceability
