KYJG Series Computer Control High Speed Plastic Film 8 color Rotogravure Printing Machine price

Supplier: Wenzhou Kingsun Machinery Industrial Co., Ltd.
Region: Zhejiang, China
Contact: Mr Mike Li
Price: $200000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machine direction:	left to right or special made;	Supply Ability:	10 Set/Sets per Month rotogravure printing machine;
Packaging Detail:	open-top containers and standard containerrotogravure printing machine;	control:	computer control;
Automatic Grade:	Automatic;	Place of Origin:	Zhejiang China (Mainland);
Machine color:	grey or white or blue;	Warranty:	12 months;
Payment Terms:	L/C,D/P,T/T,Western Union;	Type:	Rotogravure Printing Machine;
Model Number:	KYJG- 850 1050 1250;	Gross Power:	230KW;
Weight:	35 tons;	Dimensions(LWH):	22000X 3200 X 2800mm;
Print material:	BOPP,PET,PVC film;	Color register:	Kesai;
Delivery Detail:	Shipped in 30 days after payment;	Usage:	Paper Printer,printing for flexible packaging;
Voltage:	380V or special made;	Color & Page:	Multicolor;
Ink type:	rotogravure printing ink;	Condition:	New;
Plate Type:	rotogravure cylinder;	Operation language:	English or Spanish;
Port:	Ningbo or Shanghai;	Printing color:	1-15 colors;
Brand Name:	KINGSUN;	After-sales Service Provided:	Engineers available to service machinery overseas;
Printing precision:	less than 0.2mm;	Certification:	ISO9001;

KYJG Series Computer Control High Speed Plastic Film 8 color Rotogravure Printing Machine price

Tihs series computerized high speed plastic film automatic rotogravure printing machine is good for plastic film such as BOPP, PET,PE, PVC, and paper ,Al foil materials.

It is most reliable and heavy duty type rotogravure printing machine in China, we adopt latest Japan and European technology, use world top brand electric componnets, reasonable in price and high working performance makes it well accepted by higher grade flexible packaging making industry, if you are looking for hiqh quality and long lasting rotogravure printing machine, it is your best choice model. This series printing machine has been exported to more than 20 countries.

Features of machine:
1) The whole machine is including unwinding unit, printing unit and rewinding unit,
unwinding and rewinding can be separately, the printing color can be
increased or decreased from 4 colors to 12 colors
2) The main machine equipped with 7 motors control.

3) Each unit of computer color registration system is controlled by separating micro-
processor. Horizontal register optional.

4) Shaftless air cylinder clamping style for install printing cylinder
5) Auto splicing system works accurate and reliable, so can save the materials.

6) Printing press rubber roller, charging draw press roller are both adopted with
pneumatic control
7) Pneumatic back pressure moving doctor blade
8) Ink circulating system with air pump, viscosity controller optional.
9) Air shaft for unwinding and rewinding shaft, shaftless optional.
10) Automatic computer color registration system and picture video camera are
equipped in this type printing equipment.
11) We also provide design and printing cylinder for customers.

12) Different type of heating method so can fit for buyer's requirements.

Technical Specifications:

Model	KYJG-850,1050,1250,1500
Max unwind diameter	600mm,750mm,800mm or customized
Max rewind diameter	600mm,750mm,800mm or customized
Max mechanic speed	200m/min
Max working speed	180m/min
Printing color numbers	1-15 colors
Total power	85-350kw
Voltage	380V,50Hz or according to buyer specifications

We also can make automatic rotogravure printing machine or gravure printing equipment according to buyers' drawings and different requirements to fit for various printing materials.

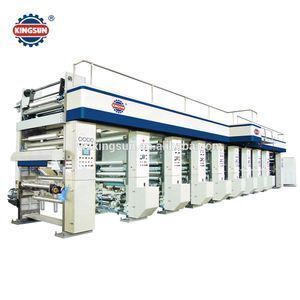

Following pictures show the rotogravure printing machine figures under testing conditions:
