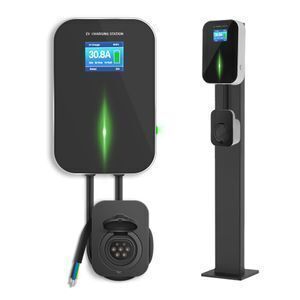

BESEN 7.2KW Remote Wall-Mounted EV Charging Station on Pillar Stand with Type 2 Outlet

Click here to contact
Product details
Single package size:69X25X15 cm;Certifications:CE, TUV (Rheinland);
Rated Current:32A;Power:7.2kw;
Package Type:Packaging Details Carton Box Size: 43*26*26(cm)/16.9*10.2*10.2(in) Weight: 5kg Port Shanghai Lead Time : 7-10 days after receiving payments;Brand Name:Besen;
Single gross weight:7.5 KG;Rated Voltage:220V-240V;
Selling Units:Single item;Packages:1 carton inner box;
Control:remote;Packing weight:2.5kg;
Delivery Detail:0 days after payment;Packing size:11.8*8.7*5.9((in);
Package Preview:https://sc01.alicdn.com/kf/HTB1NtW1aizxK1Rjy1zkq6yHrVXai.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1vYW4adjvK1RjSspiq6AEqXXau.jpg_640x640.jpg;Mode:A ( with type 2 outlet);
Place of Origin:Jiangsu China (Mainland);Model Number:BS-B10G;



Product Specification

Model : BS-B10G-A

Mode: A ( with type 2 outlet)

Certificate: TUV, CE

Current: 32A singple phase

Power: 7.2kw

Size: 300*190*90 mm

Weight: 2kg



Key Features

-High compatibility. It can charge all EVs manufactured in Europe, correctly and effectively.

-Easy to install. Products are sent to clients with associated installation tools. Users are able to install the charger at home only with a prepared impact drd with a lock on the side. Firmly locking the charger on the installation backplane can prevent theft.

-Small size. This product is small and exquisite, and thus it’s very easy to transport, store and install.

-Containing the intelligent chip. It can automatically repair minor charging problems while charging. When a fault occurs, the lights will blink in different ways to indicate different problems.





How to Use

A. How to start charging

1. Make sure the charger is well connected with the power.

2. Use your Mode 3 EV charging cable to connect the charger with the EV.

3. Press the “ON” button on the remote key to start charging.



B. How to stop charging

1. Press the “OFF” button on the remote key to stop charging.

2. Disconnect the Mode 3 EV cable from the charger and the EV on its both ends.

3. You can stop charging by pressing the Emergency Button (the red button on the side of the charger) in case of an emergency.



C. How to know the charging status

Working ConditionLED Display Status
Power (green)Charge (green)Fault (red)
Connected the powerONOFFOFF
Normal charging ONONOFF
Charging faultONOFFON
Charging completedONOFFOFF




Good to Know

-This EV charging station is special for home use. It doesn’t have the billing function.

-This is a Mode A charger, and just has an outlet. You need an extra Mode 3 EV cable to connect the charger with the EV. If you don’t have a Mode 3 EV cable, please choose our Mode C charger, with an about 20 feet long cable and a type 1 or type 2 plug.

-If you have no experience in installing electrical equipment, please contact the local electrician for assistance.

-This charger has precise internal structure. Please do not take it apart without any professional technical support. Any questions, please contact our Customer Service Manager at the first time.

-Do not install it outside without any shelter.

-This charger is only for EV charging. Please don’t use it in any other occasions.



Package Including

- EV charger *1

- remote key *2

- user manual *1

- installation drawing *1

- setscrew *3

- metal backboard *1

- 1.5m (3.2ft) 32amp inlet cable (3*6.0mm²) *1



Package Measurement and Weight

Item No: BS-B10G-A

Packages: 1 carton inner box

Packing Size: 30*22*15(cm) / 11.8*8.7*5.9((in)

Weight: 2.5kg



Product Professional Data

- Protection class:IP54;

- Accuracy class of Intelligent AC energy meter:level 2.0;

- Residual current protection rating action current:30 mA;

- Residual current protection rating action time:≤0.1 s;

- Power code contact of connector:AC220 V,16A;

- Remote controllable charger;

- Peak-valley time charging reservation;

- Connector mechanical operation life:≥10000 times;

- Mean time between failures (MTBF):≥8760 h;

- Locking charger by remote.





Parts Can Be Customized

You can customize the charger colour, LOGO and design.







Instructions & Documents

Please contact us for detailed instructions



Detailed Images



We have abundant experience of EV charging products. Our products have been successfully applied in most of countries all over the world. From cold Norway to hot Saudi Arabia, you can see form of our products. We provide the most professional products and the best quality service to each of our customers.



We pay more attention to handle the detailed part of our products, hope to provide with our customers safety, difficult to damage and convenient operation in use.

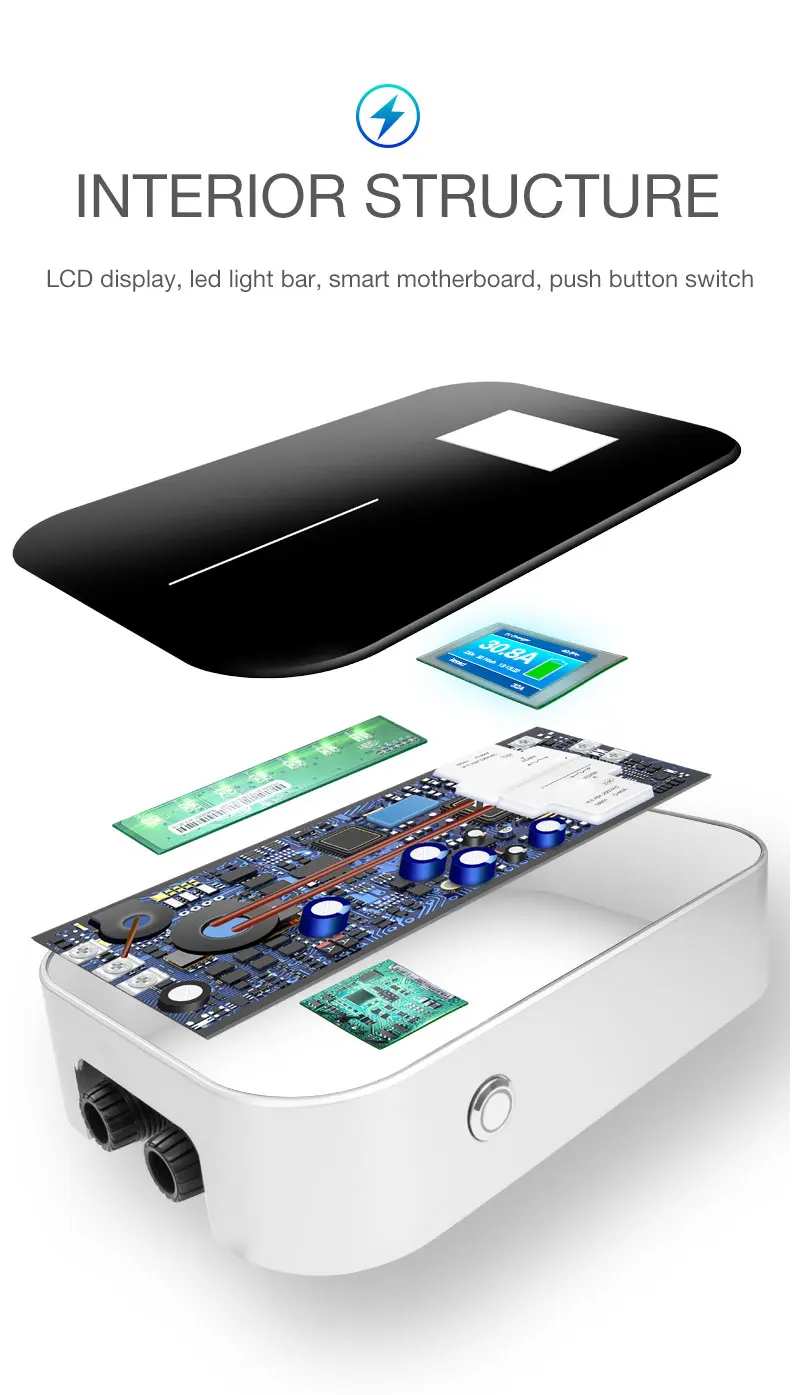

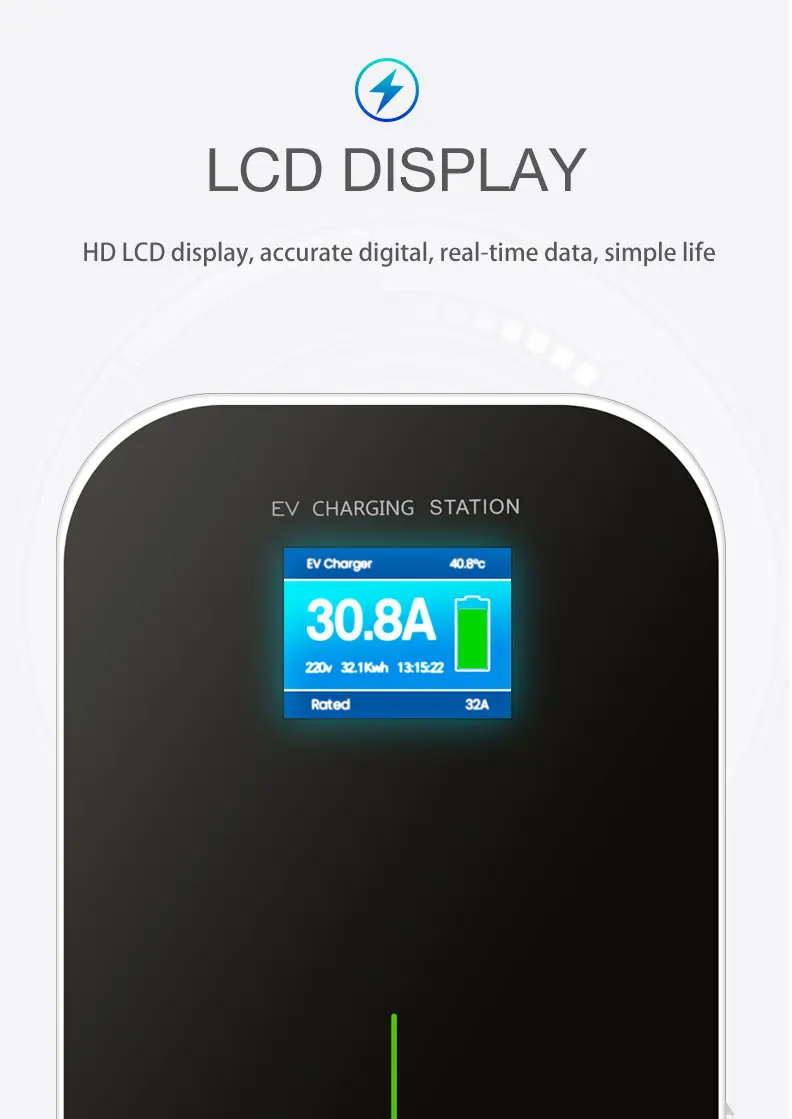

Here are some detailed pics about our BS-B10G-A remote ev charging station :









Company Information



-ABOUT BESEN GROUP--



As one of the largest manufacturers of charging equipment and components in China, BESEN possesses 12 years of expertise in the field of electric vehicle charging. We have participated in setting up the EV Charging Standard of China (GB). We are the supplier of State Grid Corporation of China. We have cooperated with many EV Manufacturers and Distributors in Europe and US, including BMW, SDG, Amazon and so on.



All of our charging connectors has obtained CE, TUV and UL certifications. From cold Norway to hot Saudi Arabia, from Thailand whose EV market is just getting started to America whose EV market are tending to be mature, our products are known by more and more customers.



We believe in that diligent service is the soul of an outstanding company. No matter if you are our regular customers or new customers who just find us in the first time, any questions of you will be replied within the shortest time. And we have conscientious after-sale services, any problems of products will be followed up responsibly by our professionals until be solved perfectly.



We would like to show our honesty, top quality, competitive prices and high efficiency to establish business relationships with you. Our goal is to provide not only products, but also a complete solution including product design, tooling, fabrication and service to our customers to achieve their upmost satisfaction.





Welcome to walk into BESEN : )





--OUR MAIN PRODUCTS--



BESEN deliver the most innovative, safest, and smartest electric vehicle components, including EV plugs, sockets, mode 2 cables, mode 3 cables, and charging stations to our customers from all over the world.







More information about our products, please contact us or visit our homepage:  https://besen-group.en.alibaba.com/

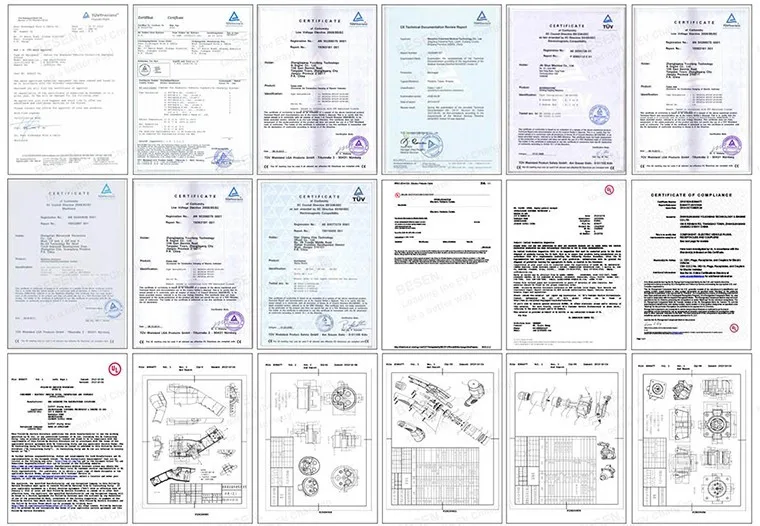

--CERTIFICATE--



Our EV products all have CE, TUV, UL certifications.  All our products have to pass strict inspections and repeated texts before they leave factory. Please contact us for detailed certificates.







FAQ

Here are some customer’s common questions about our products :



1. What is your terms of payment?

We will recommend our customer to use different terms of payment based on difference in quantity of order.

Less than 1000 USD, generally choose the PayPal

More than 1000 USD, generally choose telegraphic transfer or Alibaba

If you need the detailed terms of payment, pls contact us.



2. I want to know more infos about your reputation.

d. We are Amazon Vendor.

b We are the Good Supplier recommended by Alibaba.

c. We have 3 stars in Transaction Level, which is already the highest level in this industry.

d. In the past year we have exported the most ev cables in China, which you can find some data on Alibaba.



3. I think T/T payment is not very safe for me, and L/C is a little trouble. Any advices?

You can have a try with Alibaba Trade Assurance. This is a new service released by the Alibaba.com, that means the account of payment is guaranteed by Alibaba !



It is very easy and safe:

a. You just need to confirm the order on Alibaba, and arrange the payment to Alibaba (not to us).

b. Alibaba notice us to send the goods to you after received your payment.

c. If you received the right goods in agreed time, Alibaba will send the money to us

d. If you didn't receive the right goods, Alibaba will return the money to you.



More and more customers on Alibaba are using this payment method to ensure the safty of their fund. What do you think?

More information about Trade Assurance, pls contact us or look up

http://tradeassurance.alibaba.com/bao/buyer_advertise.htm?tracelog=from_home_service : )



4. Do your products have quality certification? How long is the warranty time?

All of our EV charging products posses with CE, TUV certifications, J1772 products posses with UL certification. Generally speaking, the warranty time is 1 year.



5. How do you deliver your goods to me? How long will it take?

We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kg will be arranged by DHL (3 days), the weight of products more than 50 kg will be arranged by Ocean freight (30 days). But pls note that this is just the time of transportation, the producing time of products will be varied from 3days to 10 days due to the quantity of order, the level of busyness in production line.



6. Can we require you to print our trademark into your products? Do the color of plug and cable can be customized made according to our requirements?

We support OEM production, but the order quantity must be more than 100pcs.

The color of plug and cable can be customized made any colors on the basis of your requirements, the order quantity must be more than 200pcs.



7.  We need to connect the industry plug to J1772 plug with 7m length of cable, however, we don’t find the similar products in your website.

The products displayed in our website are mainstream products, we can connect any two kinds of plug, but some of which need certain quantity to be customized connection. If more detailed requirements, pls contact us.



8. How is your product quality? In case of problem occurs, what should I do?

Firstly, we sell our products for many years, we have the professional engineer team in this field. Moreover, our products have to pass strict inspections and repeated tests before they go out, rate of fine variety is 99.98%. If it is the quality which lead to the failure in use, we will take place the new one for free.



If any problems not in the above-mentioned answers, you can contact us directly, we will help you to solve the problem with carefulness and patience.



Contact Us
If you are in any of the following situations:

1. Want to know more about our products

2. Customize the products that belong to your own company

3. Very familiar with EV charging products, want to be our dealer

4. Be interesting in this industry recently, but not very sure how to sell them well

5. Have a good idea or design, hope to cooperate with us



BESEN, Leading The EV Charging  To A Better Way !

.


.

.

.
