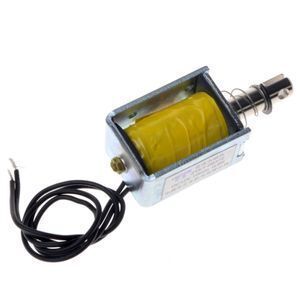

DC 12V magnetic solenoid push & pull open frame electromagnet

Supplier: Shenzhen Jingyuan Engineering Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr. Leo Ho
Price: $4.20 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Stroke(mm):	9.5;	Structure:	Needle;
Application:	General;	Model Number:	60558321703;
Reset Mode:	Spring;	Material:	Ceramic;
Temperature of Media:	Medium Temperature;	Single package size:	10X5X5 cm;
Packaging Detail:	carton;	Place of Origin:	Guangdong China;
Brand Name:	JY Solenoid;	Electrified Rate:	60%;
Selling Units:	Single item;	Port Size:	Diameter 10.8 mm;
Strength (N):	6;	Install Mode:	Screw;
Certificate:	CE & ROHS&UL;	Pressure:	Medium Pressure;
Power:	Solenoid;	Voltage:	12v/24V DC;
Single gross weight:	1.0 KG;	Media:	Gas;
Product name:	DC 12V /24V Open Frame Push Pull solenoid linear Solenoid;	Work Mode:	Push Pull;

Specification:

Voltage:DC 12V(Another DC 24V optional)
Current: 1.08A(24V/0.88A)
Power: 10W
Operating temperature:-5℃ - 40℃
Travel distance: 10mm
Force(0mm Travel): 0.4N
Weight: 90.5g
Size:20×26×37mm

Widely used in :

Automation equipment, such as Game machine,Slot machine,The ticket machine,The cash register,Automatic office equipment etc.

Features:

Easily fixed and connected load
Stability, temperature can extend the life of the product and ensure the good performance
E retaining ring and rubber gasket to operate solenoid valve mute
Low friction to ensure high efficiency and prolong life
Structure design is simple and reliable

Package Included:
1pcs x DC 12V magnetic solenoid push&pull open frame electromagnet
