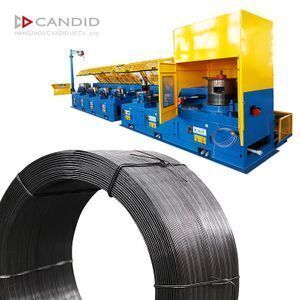

CANDID Stainless steel SS straight line wire drawing machine for binding wire
-
Supplier: Hangzhou Candid I/E Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr JiangWei Zheng -
Price: $10500.00 /set -
Min. Order: 1 set
Product details
| Certification: | CE Certificate; | Warranty: | 1 YEAR; |
| Applicable Industries: | Manufacturing Plant; | Voltage: | 380/415/440/220; |
| Local Service Location: | None; | MOQ: | 1 set; |
| Packaging Detail: | Straight Line Continuous Wire Drawing Machine in nude package; | Max Speed of drawing: | 600-1200m/min; |
| Key Selling Points: | High Safety Level; | Supply Ability: | 100 Set/Sets per Year Straight Line Continuous Wire Drawing Machine; |
| Power(W): | 30kw; | Condition: | New; |
| Inlet Diameter: | 3.0-6.5mm; | Max speed of drawing: | 8-18m/s; |
| Showroom Location: | None; | Diameter of block: | 560mm; |
| Max dia.of inlet: | 3.0-6.5mm; | Outlet Diameter: | 1.5-3.0mm; |
| After-sales Service Provided: | Free spare parts,Online support,Field installation, commissioning and training,Video technical support,Engineers available to service machinery overseas; | Brand Name: | CANDID,CANDID; |
| Year: | 2019; | Weight: | 2000kg; |
| Drawing Power: | 22kw-30kw; | Max speed of outlet: | 1.5-3.0mm; |
| Payment Terms: | L/C,T/T; | Meterial Intensity: | ≤1250mpa; |
| Port: | shanghai port; | Package Preview: | https://sc02.alicdn.com/kf/Ha3d18418b3ed49a3bfcab0e80335e444K.jpg_640x640.jpg; |
| Place of Origin: | China; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Product Description
LZ Series Wire Drawing Machine
Main Technical Parameter
Type | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 |
Material Intensity | ≤1250Mpa | ||||||||
Drawing Passes | 2 ~ 11 | 2 ~ 11 | 2 ~ 11 | 2 ~ 12 | 2 ~ 12 | 2 ~ 12 | 2 ~ 12 | 2 ~ 9 | 2 ~ 9 |
Max. Dia. Of Inlet Wire | 2.8mm | 3.5mm | 4.2mm | 50mm | 5.5mm | 6.5mm | 8mm | 10mm | 12.7mm |
Min. Dia. Of Outlet Wire | 0.5mm | 0.6mm | 0.75mm | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 2.2mm | 2.6mm |
Max. Speed Of Drawing | ~ 25m/s | ~ 20m/s | ~ 20m/s | ~ 16m/s | ~ 15m/s | ~ 15m/s | ~ 12m/s | ~ 12m/s | ~ 8m/s |
Drawing Power | 7.5~18.5kw | 11~22kw | 11~30kw | 15~37kw | 22~45kw | 22~55kw | 30~75kw | 45~90kw | 55~110kw |
Accessory Equipment
+
| Name | Model | Range of Dia. |
| Discharging Machine | ||
| Pointing Machine | F-96 | 6.5-1.5mm |
| Pointing Machine | F-80 | 3.5-1.0mm |
| Butt-Welding Machine | UN-10 | 8--2mm |
| Butt-Welding Machine | UN-3 | 6.5-1.5mm |
| Butt-Welding Machine | UN-1 | 3.5-1.0mm |
| Automatic Discharging Machine | XB-600 | capacity 800kg |
| Automatic Discharging Machine | XB-360 | capacity 400kg |
| I Type Spool Reeling Machine | SG-800 | capacity 800kg |
| I Type Spool Reeling Machine | SG-630 | capacity 500kg |
| Descaling Machine | SW650 | |
| Motorless Descaling Machine | with steel brush | |
| Well Type Furnace | RJ-90-9 |
