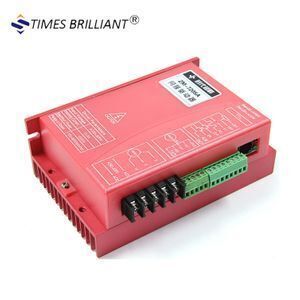

China cheap price High power 5A 220V brushless dc motor driver controller for 310V BLDC motor

Supplier: Beijing SDSW Technology Co., Ltd.
Region: Beijing, China
Contact: Ms Pei Liu
Price: $60.72 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

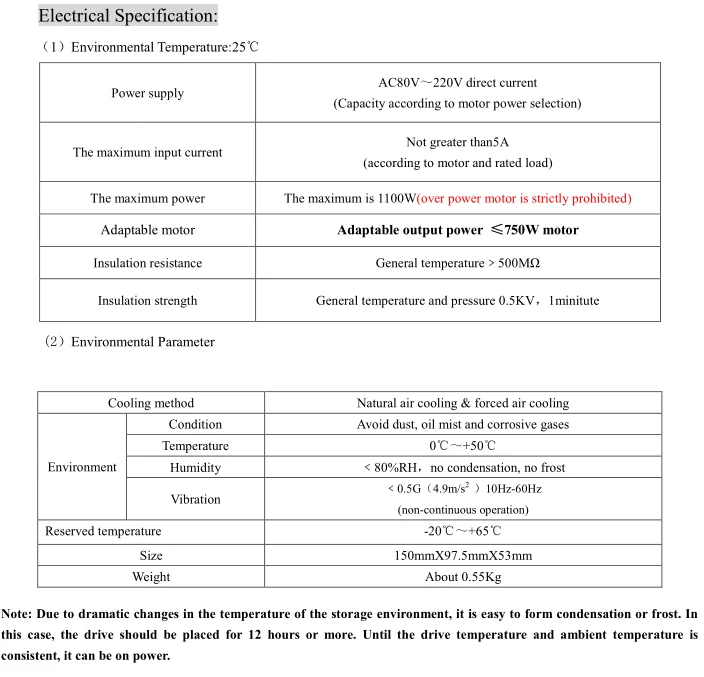

Weight:	600g;	Selling Units:	Single item;
Brand Name:	Times Brilliant;	External Potentiometer:	10K;
Supported Speed:	0-20000rpm;	Type:	Brushless Dc Motor Driver/controller;
Efficiency:	75% Approx;	Current:	0-5A;
Single gross weight:	1.0 KG;	Model Number:	ZM-7205A;
Envirment Tempreture:	-20~65℃;	Packaging Detail:	polyfoam, cardboard carton;
Single package size:	25X20X18 cm;	Package Preview:	https://sc01.alicdn.com/kf/HTB1mGhZbfvsK1RjSspdq6AZepXaA.jpg_640x640.jpg;
Voltage:	80V-220VAC;	Place of Origin:	Beijing China;

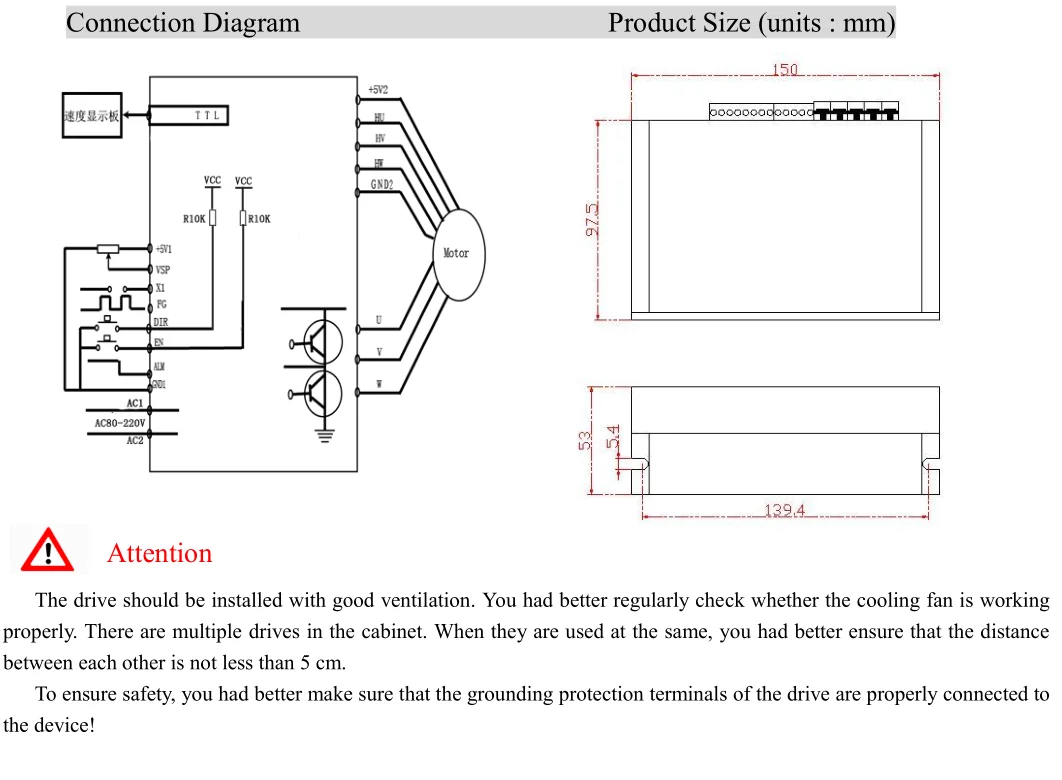

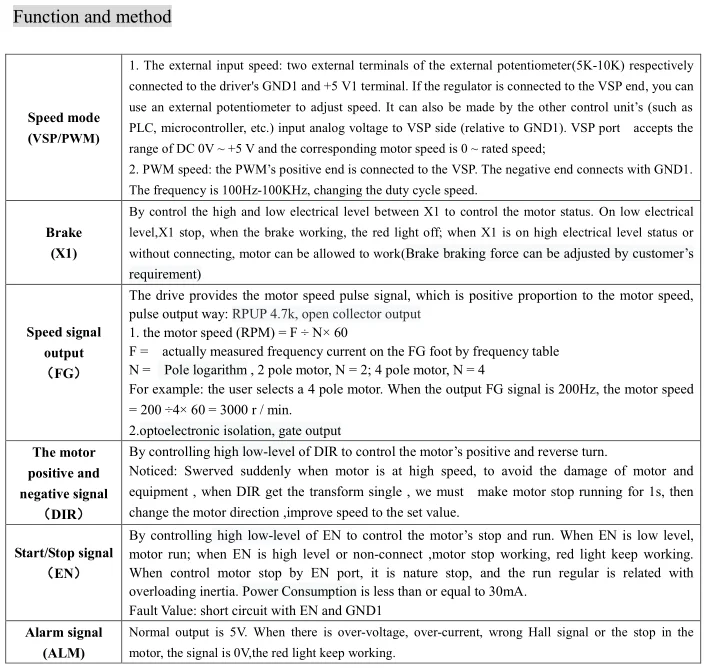

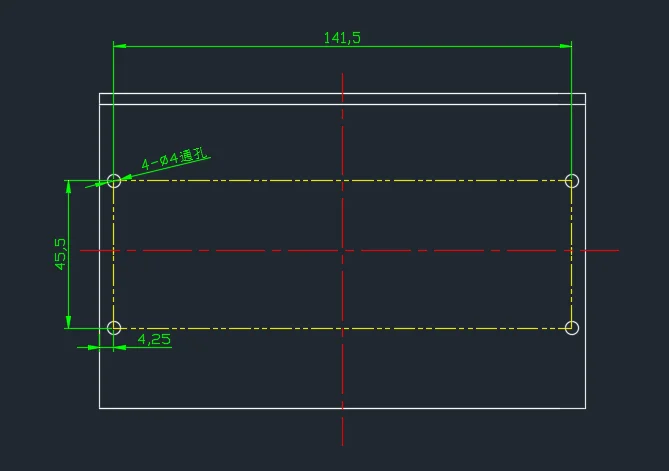

size:	150mmX97.5mmX53mm;	Analog Voltage input:	0-5V;

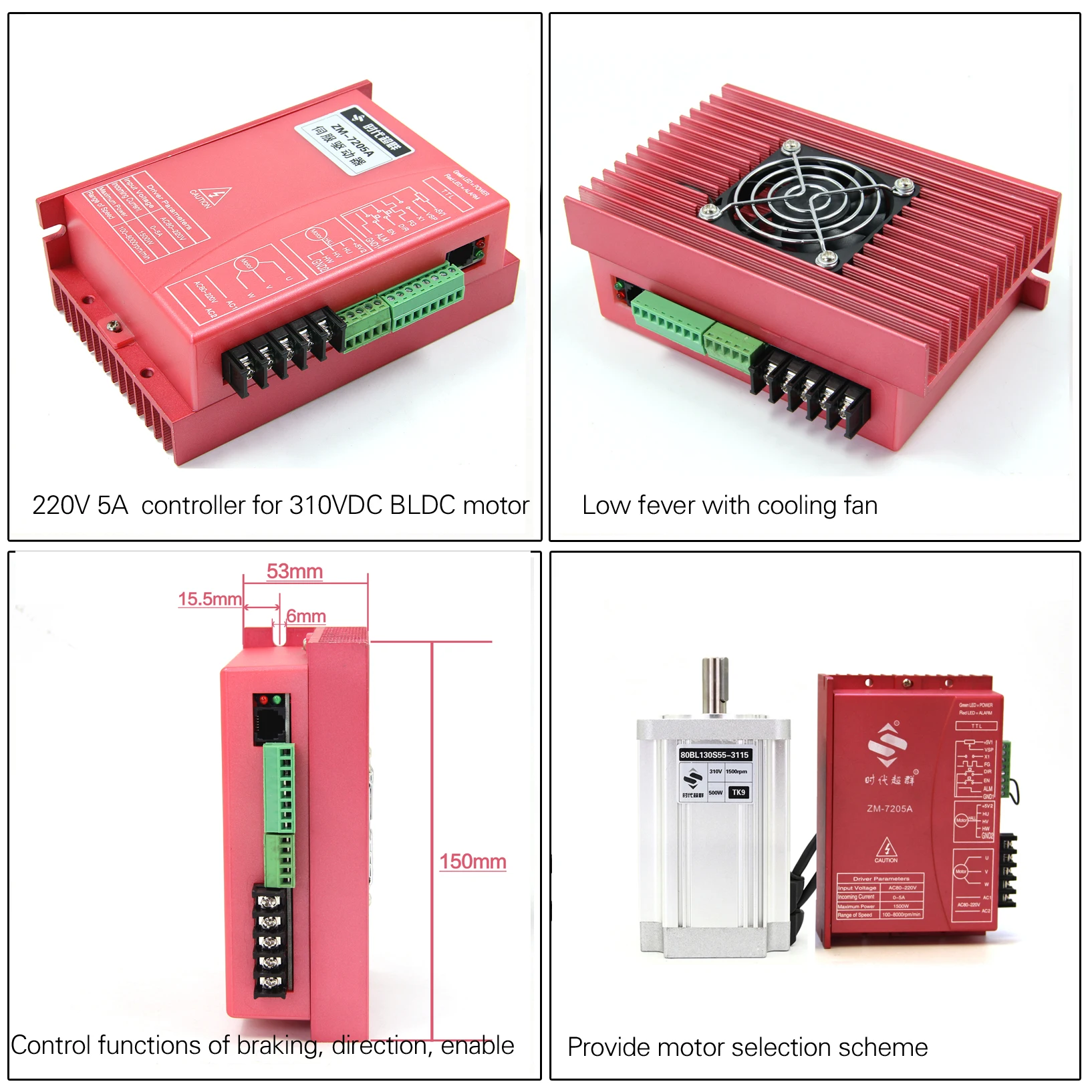

China cheap price High power 220V brushless dc motor driver controller for 310V BLDC motor

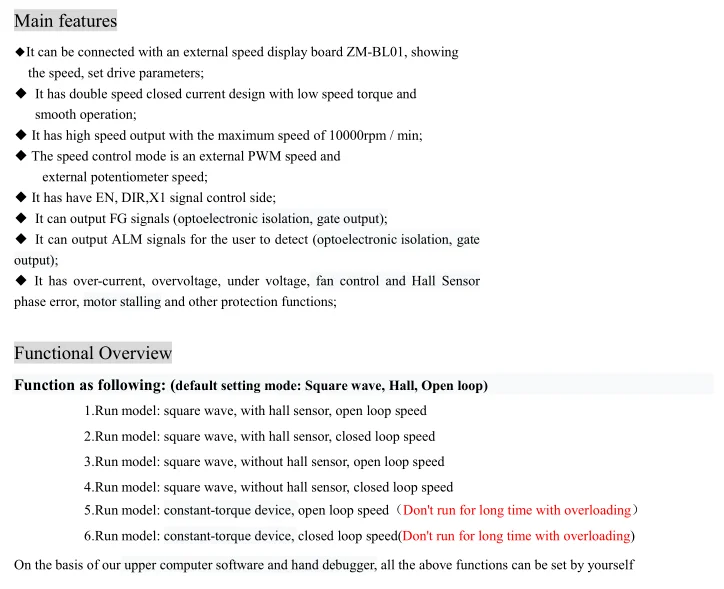

Function Overview

This controller is the latest high-tech product of our company, for the field of medium power motor drive. It uses a large-scale integrated circuit to replace the original hardware, so it has higher performance of anti-jamming and fast response ability. It is suitable for all the low voltage three-phase brushless DC motors with peak current below 5A and low voltage AC80V-250V(boards show AC80V-220V) ,whether the motor driver with Hall or not. It is widely used in knitting equipment, medical equipment, food packaging machinery, electric tools and a series of electrical automation control area .
