2" 50mm LPG gas flow meter positive displacement liquid control flowmeter

Product details
Product name:LPG positive displacement flow meter;Package Preview:https://sc02.alicdn.com/kf/H14670efe764b40b28efe4fbe2dd27787g.jpg_640x640.jpg;
Place of Origin:China;Max.Pressure:10Bar;
Payment Terms:L/C,T/T,Western Union,Escrow;Viscosity:30SSU-1,500,000SSU;
Port:Shanghai, Ningbo, Guangzhou;Model Number:MA-50-CX-10;
Brand Name:COWELL/OEM;Packaging Detail:wooden case for positive displacement flow meter for cosmetics beverage fertilizers;
flow rate:38-380L/Min;Supply Ability:10000 Set/Sets per Month;
Measurement:Liter or Gallon;Accuracy:±0.2%;

Product Description

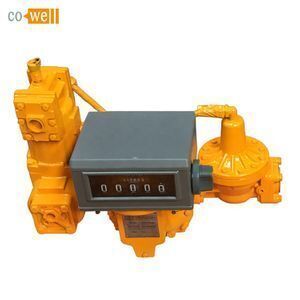

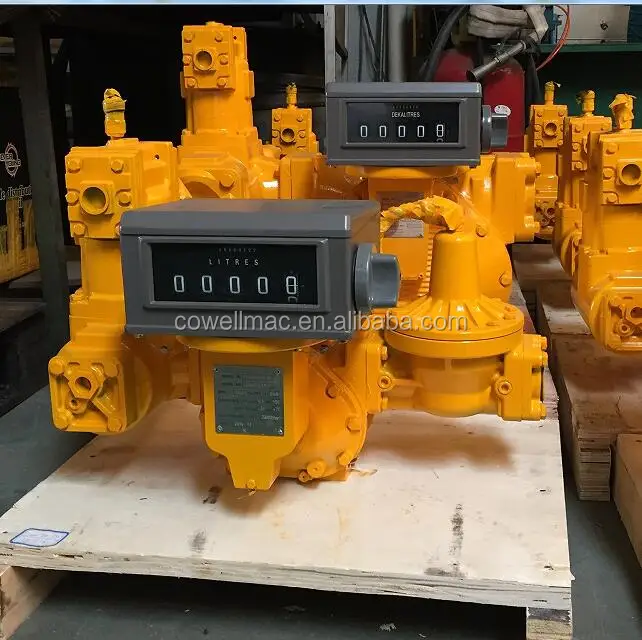

M Series Positive Displacement Flow Meter  MA-50-CX-1



   MA-50-CX-10 meter with mechanical reegister,         differential valve, strainer&air eliminator

Characteristics

 1.Excellent stepless adjusting mechanism allows a micro adjustment on the meter;

 2.High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow;

 3.Low maintenance, no metal-to-metal contact in measuring chamber, long life service;

 4.Low pressure loss, a true gravity flow meter;

 5.Accuracy regardless of pressure fluctuations, temperature variation, viscosity.





+
 Model

M-40-1

M-50-1

M-50H-1

M-80-1

M-80H-1

M-100-1

M-100H-1

M-150-1

M-150H-1

 Size

40mm / 1.5”

50mm / 2 "

80mm / 3 "

100mm / 4 "

150mm / 6 "

 Flow Range (L/Min)

25-250

38-380

55-550

75-750

115-1150

130-1300

170-1700

225-2250

300-3000

 Volume /Rev.

0.309L

0.681L

1.839L

5.102L

9.507L

 Max. Pressure

10Bar/150PSI

25Bar/350PSI

 Accuracy

±0.2%

 Repeatability

≤0.05%

 Standard Measurement

Liter / US Gallon/IMP Gallon

 Viscosity

30SSU~1,500,000SSU

Note:4"&6" flange available for M-150/6" Meter.

 Additions:We also provide optional Preset Counter, Printer and Output pulser .  You can choose any one to install on your flow meter.
