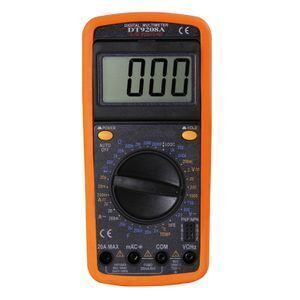

digital multimeter (moving viewing angle) DT9208A with temperature capacitance test function

Product details
Brand Name:WHDZ;Port:XIAMEN, SHANGHAI, NINGBO, SHENZHEN, GUANGZHOU;
Measuring Inductance Range:NA;Measuring Current Range:200m-20A;
Place of Origin:Fujian China;Measuring Voltage Range:20-750V;
Dimensions:191x89x35mm;Operating Temperature:Normal;
color:Black+orange;Measuring Resistance Range:200-200M;
Model Number:DT9208A;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Supply Ability:20000 Piece/Pieces per Month;Packaging Detail:Packing: color box Packing quantity: 40PCS/CTN Carton size: 50x29.5x44CM G.W. / N.W.: 17.5/16.5KG;
Measuring Capacitance Range:2nF-20uF;



Characteristic

Moving large LCD for different angle reading need
Full protection design against burn
Data hold function for easy reading after measurement
With PVC shockproof holster
With temperature test function

Technology features

 DCV: 200m-2-20-200-1000V                                      ±0.5%
ACV: 20-200-750V                                                          ±1.0%
DCA: 20u-20m-200m-20A                                            ±1.8%
ACA: 200m-20A                                                               ±2.0%
Resistance: 200-2K-20K-200K-2M-20M-200MΩ     ±1.0%
Capacitance: 2n-20n-200n-2u-20uF                          ±4.0%
Frequency: 2K- 200KHz                                                 ±3.0%
Temperature: -20℃~1000℃                                        ±1.0%

Description

LCD size: 67x32mm
Max display: 1999
Low battery indication: yes
Overload protection: yes
Diode test: yes
Transistor test: yes
Continuity buzzer test: yes
LOGIC test: yes
Auto power off: yes
Data hold: yes
Power supply: one 9V 6F22 battery
Product size: 190x89x33mm
Product weight: about 283g (with holster)
Standard accessories: meter (with battery), holster, test lead, thermocouple, manual



Packaging Details :
Packing: color box
Packing quantity: 40PCS/CTN
Carton size: 50x29.5x44CM
G.W. / N.W.: 17.5/16.5KG
