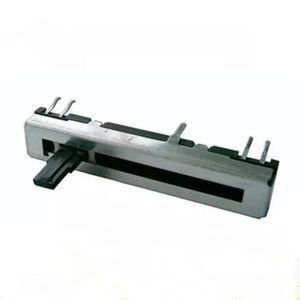

30mm travel 45mm total length WH3012P B1100K double slide potentiometer

Product details
Brand Name:Bonens;Insulation Resistance:≥1G Ω;
Place of Origin:Sichuan China;Advantage01:For 12 years manufacturer potentiometer;
Type:Slide Potentiometer;Technology:Carbon Film;
Port:shenzhen or any port in china;Max. Operating Voltage:200V;
Operating Temperature:55℃~125℃;Resistance Tolerance:±5%,± 20 (%);
Model Number:WH3012;Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Feature:500ohm~1Mohm;Rated Power:0.05;
Supply Ability:3000000 Piece/Pieces per Week;Key words:10K 20K Slide Potentiometer;
Service:ODM&OEM;Packaging Detail:50pcs/box or as your request;
Advantage02:Factory price &Low MOQ;





Wholesaler WH3012 45mm travel slide potentiometer,50k linear slide potentiometer

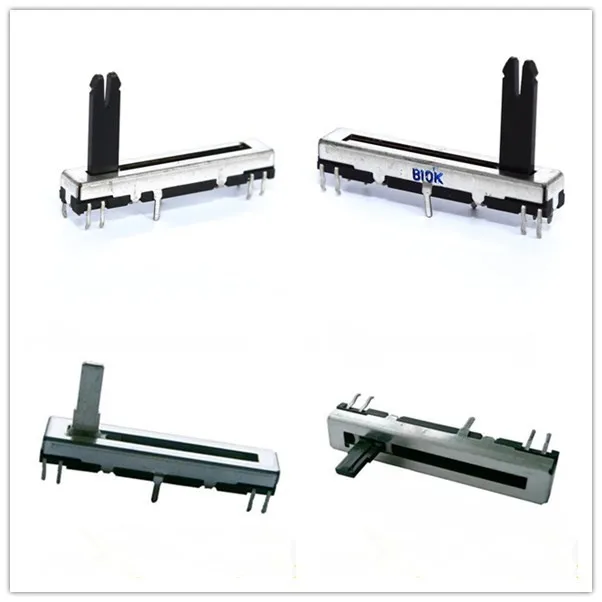

Manufactuer 30mm slide potentiometer picturer

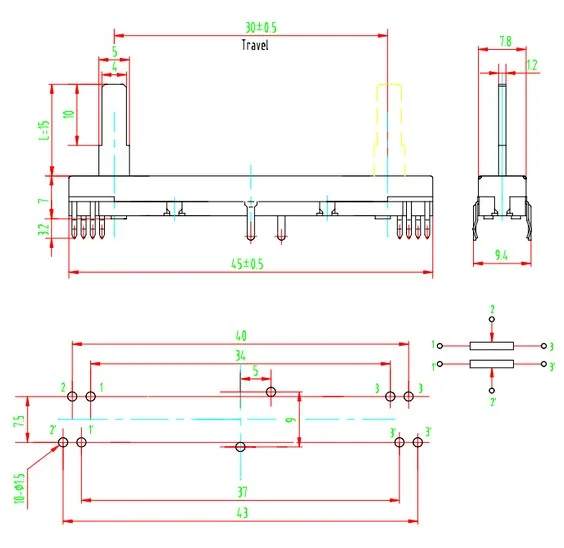

slide potentiometer drawing

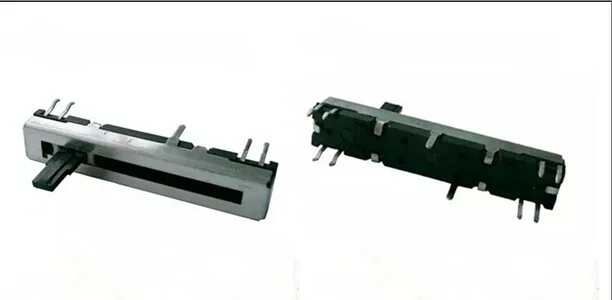

45mm 60mm travel slide potentiometer

Travel :30mm  45mm 60mm

Slider shaft type : plastic ,metal

Specifications Resistance range-----500ohm~1Mohm

Tolerance of resistance:±20%

Resistance taper:A B C

Power Rating---------------------0.25W

Rated voltage--------------------200V

Insulation resistance-----------10MΩ Min AT 250V DC

Withstanding Voltage------------1 Min,AT 250 V AC

Operating force--------------------10~120gf.cm

Sliding life---------------------------10,000 cycles

Type---------------------------------- Single Unit/Dual unit

Material----------------------------- Carbon Film

Resistance adjustment----------- Straight Slide

Resistance patterns of change-------------- X-type (linear)

Nominal resistance:----------------------------10K

Power Rating------------------------------------ 0.05 (W)

Resistance tolerance-------------------------- ± 20 (%)

Sliding Noise-------------------------------------≤ 50m (V)

Zero resistance-------------------------------- 50 (Ω)

Contact resistance---------------------------- <20 (Ω)

Insulation resistance--------------------------> 100 MΩ



Our other potentiometer for your reference

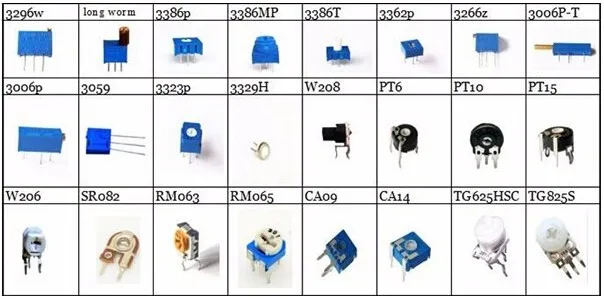

1)Trimmer Potentiometer





2)Wirewound Potentiometer &Carbon Potentiometer

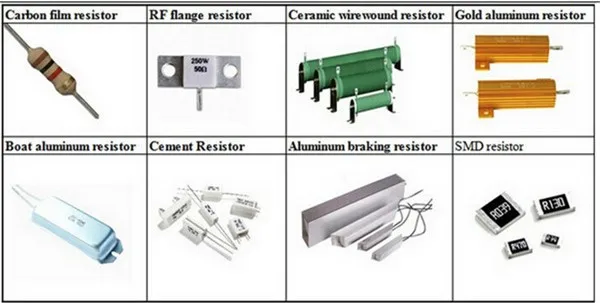

3)Resistor



Our certificate





if any interest.pls feel free to let us know.
