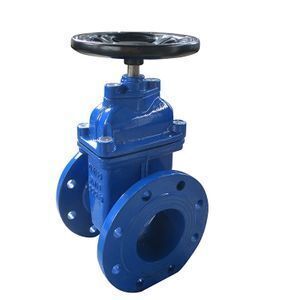

DIN3352 F4 8 Gost Ductile Cast Iron Resilient seated Gate Valve

Supplier: Hebei Huahui Valve Co., Ltd.
Region: Hebei, China
Contact: Ms Fay Lu
Price: $20.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

seat:	GGG50+EPDM;	Temperature of Media:	Normal Temperature;
Certificate:	ISO9001:2008;	Connection:	Double flange;
name:	ductile iron rising stem water sluice resilient seated gate valve;	Media:	Water;
Brand Name:	HUAHUI;	Model Number:	DIN3352 F4;
Structure:	Gate;	Standard or Nonstandard:	Standard;
Packaging Detail:	Plywood Boxes / Plywood Pallets Normal Size: 1.1M1.1M1.1M FOR ONE 20FT CONTAINER, CAN LOAD 20 (NORMAL SIZE) BOXES OR PALLETS FOR ONE 40FT CONTAINER, CAN LOAD 40 (NORMAL SIZE) BOXES OR PALLETS;	Color:	Blue/red;
Payment Terms:	L/C,D/P,T/T,MoneyGram;	Port Size:	DN50-DN1200;
Port:	tianjin xingang port, qingdao port, ningbo port,shanghai port;	Supply Ability:	500 Ton/Tons per Month;
Flange:	EN1092;	Place of Origin:	Hebei China;
Application:	Water system;	Power:	Manual;

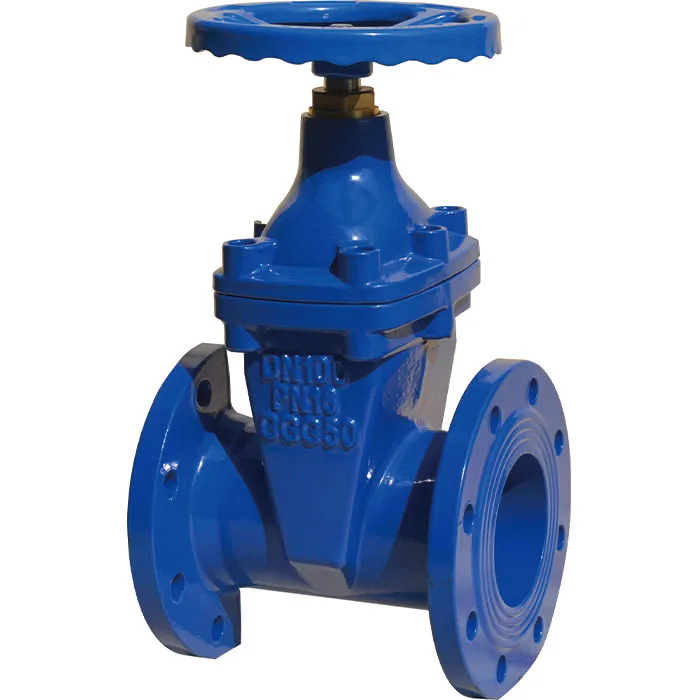

DIN3352 F4 8 Gost Ductile Cast Iron Resilient seated Gate Valve

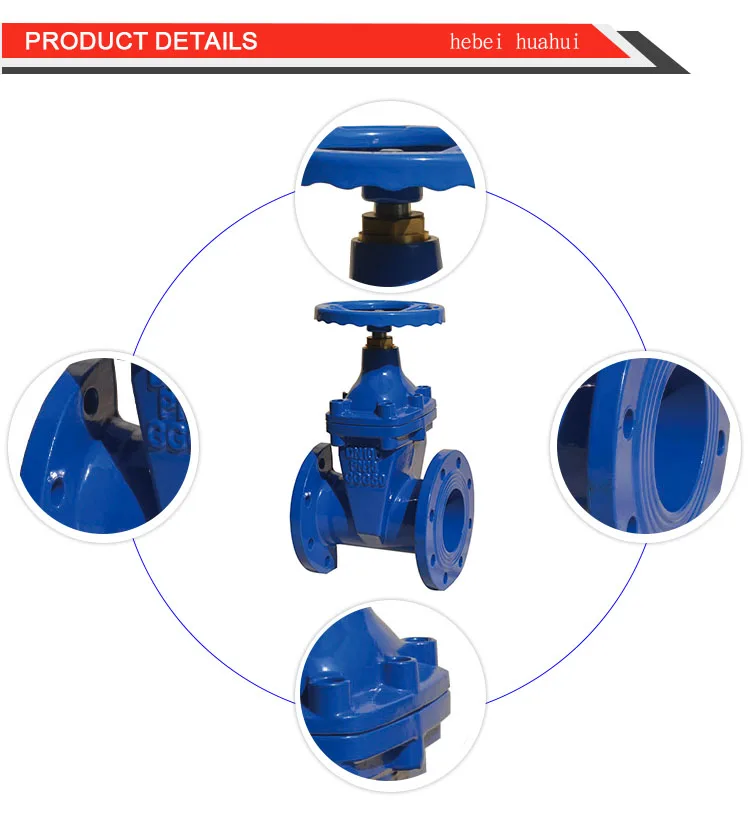

Features

² The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.

² Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.

² Stainless steel stem with rolled threads for high strength.

² The valve can replace stem seals under pressure.

² Full bore.

² Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.

Main Raw Material

1	Body	Ductile Iron	9	Gland bolt	Steel gr.8.8
2	Wedge	Ductile Iron+EPDM	10	Handwheel	Ductile Iron
3	Wedge Nut	Brass	11	Gland	Ductile Iron
4	Stem	Stainless steel	12	O-ring	EPDM rubber
5	Bonnet gasket	EPDM rubber	13	Nut	Stainless steel
6	Bonnet	Ductile iron	14	Washer	Steel
7	Thrust collar	Brass	15	Bonnet bolt	Steel gr.8.8
8	O-ring	EPDM rubber

Click to get a discount

Q1: Can I have my own customized product?
A: Yes, your customized requirements the gat valve for color, size, package, mark, etc.

Q2: How long is your gate valve delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide gate valve samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment.
