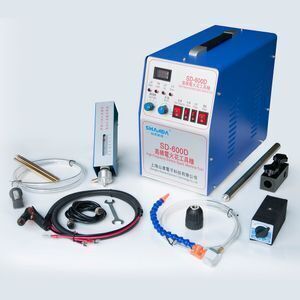

edm spark erosion portable mini drill machine

Working principle

Use workpiece and electrode contact broken tap from short-circuit spark, corrosion broken tap, remove broken tap bit by bit.

Application

1.Remove broken in workpiece diameter tap, drill, reamer, tools/tools such as screw, plug gauge;
2.can be working in any size, shape of workpieces
3.Various angles,different shapes from surface of electrodes,processing multiple holes
4.Processing no precision requirement hole
5.Especially suitable for difficult to processing large workpieces in edm machine

Operating feature

1.Automatically feed processing
2.Using water as working fluid, economic and convenient
3.220 v power supply, convenient connection
4.Automatic deep processing control
5.Built-in imported high-pressure electromagnetic pumps, water supply convenient and quick, 2 seconds after launch out of the water
6.Cooling fan, can guarantee tool pilot time continuous working more than 12 hours
7.Working head can be arbitrary Angle adjustment

The choice of electrode (broken tap, screws, for example)

According to the size of the broken item to select suitable electrode shape and size of electrode materials,and choose brass wire, brass rod or copper tube, etc

Electrolytic Corrosion principle, no damage to work-piece

1.Remove broken in workpiece diameter tap, drill, reamer, tools/tools such as screw, plug gauge;
2.can be working in any size, shape of workpieces
3.Various angles,different shapes from surface of electrodes,processing multiple holes
4.Processing no precision requirement hole
5.Especially suitable for difficult to processing large workpieces in edm machine

Remove Broken taps

short electrode and reduce the jitter

Remove broken screw

the tap above M20 can be processed by several times
