SUNNEN kind,Vertical Cylinder Honing Machine 3MB9817

Supplier: Shaanxi APS Machinery Equipment Co., Ltd.
Region: Shaanxi, China
Contact: Ms Karen yan
Price: $4600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max depth of hole honed:	320MM;	Supply Ability:	200 Set/Sets per Month;

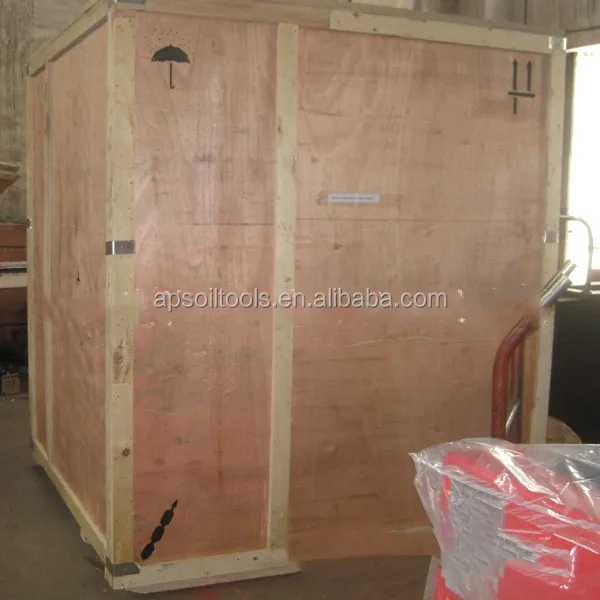

Packaging Detail:	Standard export plywood cases;	Package Preview:	https://sc01.alicdn.com/kf/HTB1s4.bOpzqK1RjSZFoq6zfcXXag.jpg_640x640.jpg;
Condition:	New;	Warranty:	1 YEAR;
Certification:	ISO9001;	After-sales Service Provided:	Online support,Video technical support;
CNC or Not:	Normal;	Dimension(LWH):	1850x1850x2150mm;
Weight:	1200kg;	Max diameter of hole honed:	25-170 MM;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram,PAYPAL;	Voltage:	380v/220v;
Power(W):	1.5KW;	Port:	SHANGHAI,CHINA;
Place of Origin:	Shaanxi China;

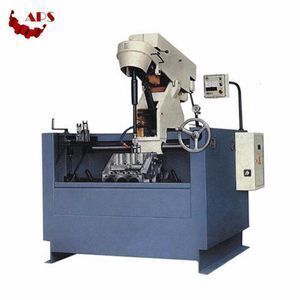

SUNNEN kind,Vertical Cylinder Honing Machine 3MB9817

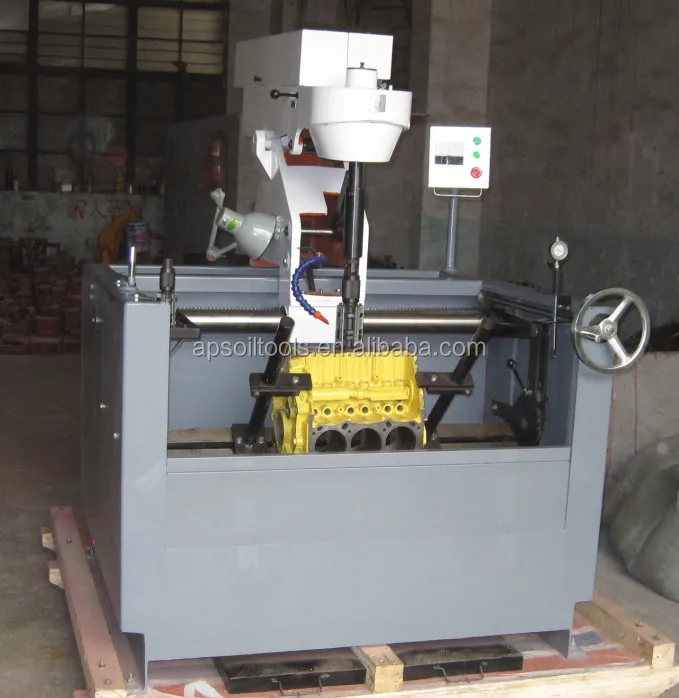

The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motorcycles and tractors and also for other machine element holes.
·The machine table can shift of the fixture change 0°, 30°and 45°.
·The machine table is easily up and down manually 0-180mm.
·Reverse precision 0-0.4mm.
·Select mesh-wire degree 0°- 90° or non-mesh-wire.
·Reciprocating speed of up and down 0-30m/min.
·The machine is reliable performance widely use honing, easy operation and high productivity.
·Good rigidity, amount of cutting. .

Model	3MB9817
Max diameter of hole honed	Φ25-Φ170 mm
Max depth of hole honed	320 mm
Spindle speed (4 steps)	120, 160, 225,290 mm
Stork (3 steps)	35, 44, 65 s/min
Power of main motor	1.5 Kw
Power of cooling pump motor	0.125 Kw
Machine working inside cavity dimensions (L×W)	1400×870 mm
Overall dimensions (L×W× H)	1640×1670×1920 mm
Packing dimensions (L×W×H)	1850×1850×2150 mm
N.W./G.W.	1000/1200 kg
