3M9735BX150 Cylinder block and head honing machine with CE

Product details
CNC or Not:Normal;Max. Grinding Diameter:350mm;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;After-sales Service Provided:Online support,Field installation, commissioning and training,Field maintenance and repair service;
Voltage:220V;Warranty:1 Year;
Supply Ability:30 Set/Sets per Month;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Applicable Industries:Garment Shops,Building Material Shops,Machinery Repair Shops;Condition:New;
Key Selling Points:Automatic;Showroom Location:Egypt,Germany,Brazil,Spain;
Weight (KG):3300;Power (kW):10;
Packaging Detail:plywood case in carton, international package standard.;Certification:CE;
Local Service Location:Egypt,France,Brazil,Saudi Arabia,Indonesia;Dimension(L*W*H):2950x1000x1960mm;
Max. Grinding Length:1500mm;Weight:3300KGS;
Port:Shanghai Port;Power(W):1.5/2.4KW;
Features

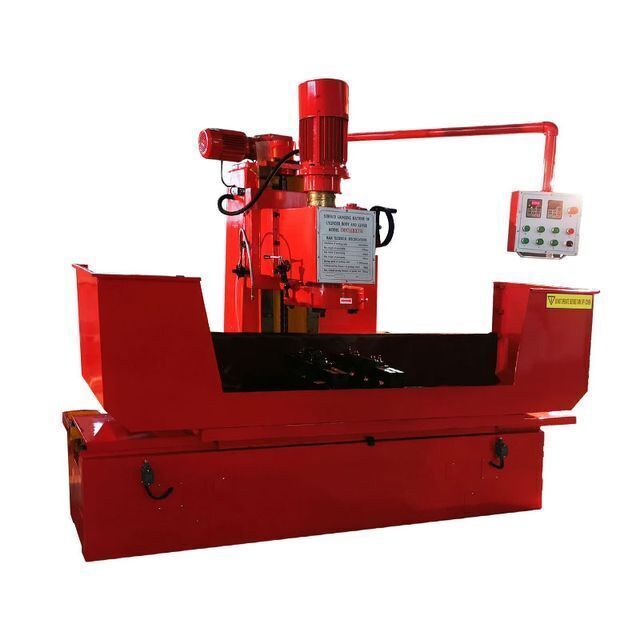

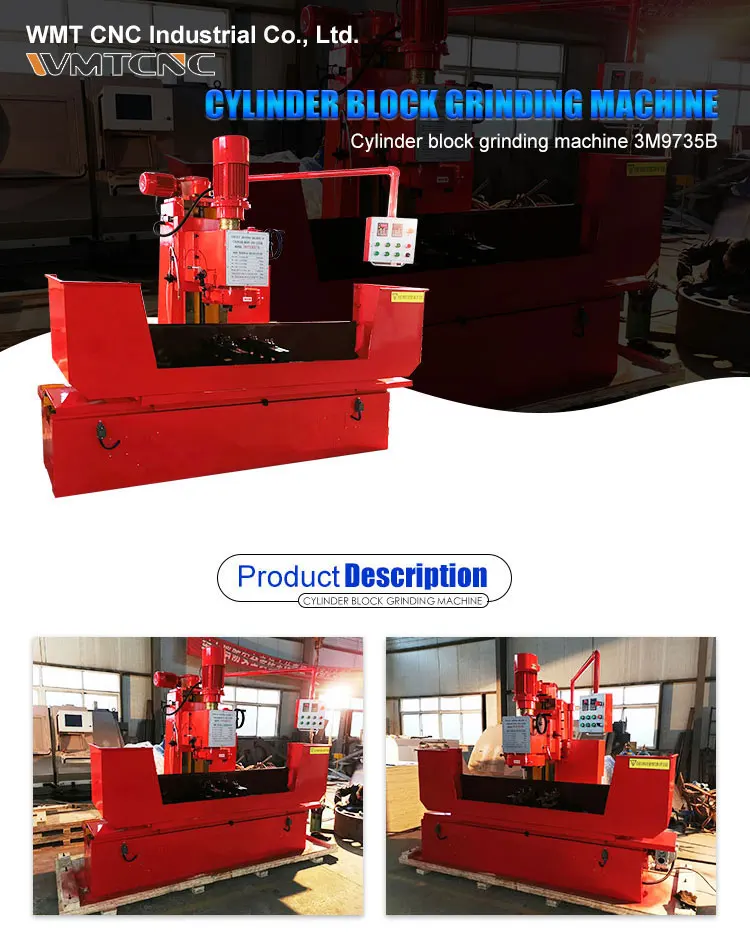

Cylinder block and head grinding machine 3M9735BX150.
It suits for grinding and milling all kinds of cylinder body and cover surface.
The spindle adopts high precision bearing the motor is fixed on the back of the machine which guarantee the spindle precision with
high speed.
It adopts the plastic guide way running stable and flexible.
The feeding of work table adopts stepless speed changes devices, suits for processing all kinds of materials of work piece.
Specification
3M9735Bx130
3M9735Bx150
Working table size
1300 x500mm
1500x500mm
Max working length
1300 mm
1500 mm
Max. width of grinding
350 mm
350 mm
Max height of grinding
800 mm
800 mm
The vertical moving distance of grinding head
60 mm
60 mm
The vertical moving distance of spindle box
800 mm
800 mm
Spindle speed
1400/700 r/min
1400/700 r/min
Transverse moving speed of working table
40-900 mm/min
40-900 mm/min
Overall dimensions(LxWxH)
2800x1050x1700 mm
3050x1050x1700 mm
Packing dimensions(LxWxH)
3100x1200x1850 mm
3350x1200x1850 mm
N.W. / G.W.
2800 / 3100 kg
3000 / 3300 kg
Standard accessories
Parallel support, Grinding disk, Grinding wheel dresser, Cooling box, Grinding tiles &
milling cutters, Wheel balance stand arbor.
