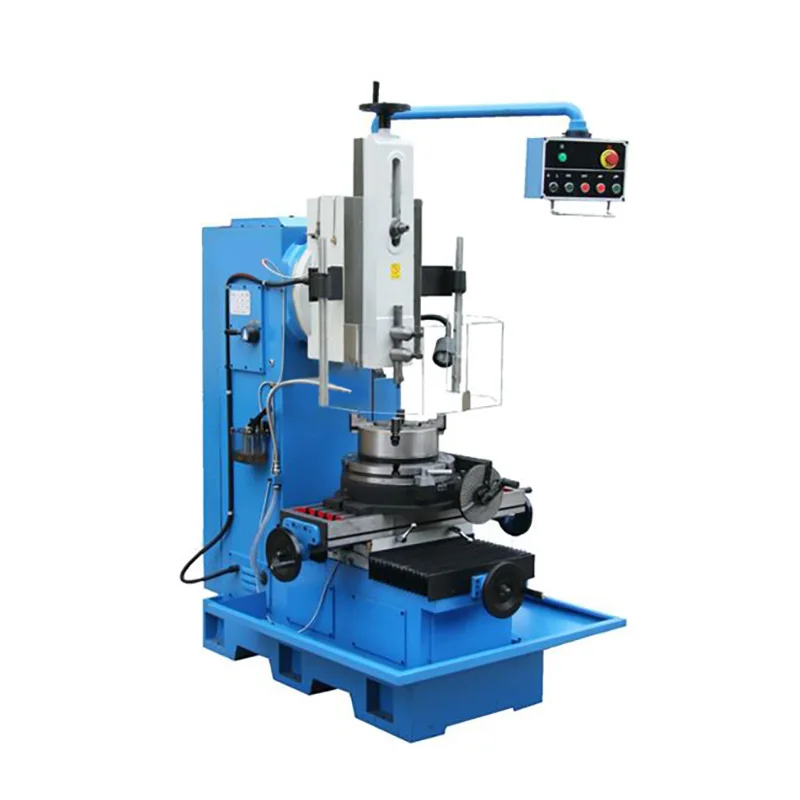

Weight: | 1000kg; | Product Name: | Vertical Slotting Machine; |
Brand Name: | WMTCNC; | Voltage: | 380V/400V/415V; |
Showroom Location: | Canada,United Kingdom,United States,Italy,France,Germany,Brazil,Peru,Indonesia,Mexico,Russia,Spain,Thailand,Argentina,South Korea,Chile,Colombia,Algeria,South Africa,Japan; | Warranty of core components: | 1 Year; |
Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Retail,Construction works ; | Function: | Cutting Metal; |
Supply Ability: | 50 Set/Sets per Month; | Power (kW): | 15; |
After Warranty Service: | Video technical support,No service,Online support,Spare parts,Field maintenance and repair service; | After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; |
Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; | Machinery Test Report: | Provided; |
Port: | Shanghai Qingdao; | Marketing Type: | New Product 2020; |
Name: | Slot Cutting Machine; | Application: | Metal Cutting Machine; |
Processing Types: | Metal Processing; | Certification: | CE ISO; |
Precision: | High Precision; | Packaging Detail: | The slottting machine B5016C is packed into plywood case; |
Dimension(L*W*H): | 1270x1100x1700; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade assurancce; |
Video outgoing-inspection: | Provided; | Power: | 3kw 4KW; |
Condition: | New; | Key Selling Points: | High-accuracy; |
Warranty: | 1 Year; | Place of Origin: | Anhui China; |
Local Service Location: | Canada,United Kingdom,United States,Italy,France,Germany,Brazil,Peru,Indonesia,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Argentina,South Korea,Chile,Colombia,South Africa; | max. length of the ram slotting: | 160mm; |
cheap machine tool: | slotting machine; |
Specification | Unit | B5016C |
Max slotting length | mm | 160 |
No of ram strokes per minute | 23,32,44,48,67,92 | |
Swing angle of ram | deg | ±45° |
Table diameter | mm | 350mm(14) |
Vertical adjustment of ram | mm | 160 |
Distance between tool hoolding surface and column front | mm | 485 |
Distance between table surface and lower end of ram slide | mm | 320 |
Max.cross travel of table | mm | 360 |
Max.cross angle of table | mm | 320 |
Max.rotary angle of table | deg | 360 |
Tool shank size (WXH) | mm | 25*40 |
Max.cutting force | N | 4500 |
Max.table load-carrying capacity | KGS | 300 |
Width of table center T-slot | mm | 14 |
Power of main drive motor | KW | 15/0.85 |
Rotating speed of main drive motor | rpm | 700/1410 |
Net weight(approx) | KGS | 1000 |
Overall dimension(LXWXH) | mm | 1270x1100x1700 |
