Max. Turned Length (mm): | 100 mm; | Supply Ability: | 200 Sets per Month; |
Logo: | OEM; | Weight (KG): | 200 KG; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Spindle Motor Power(kW): | 0.75; |
Width of bed (mm): | 200; | Spindle Bore(mm): | other; |
Slide travel: | 100mm; | Place of Origin: | Anhui, China; |
Disc drum type: | lathe machine; | Machining Capacity: | Light Duty; |
Brand Name: | WMTCNC; | Packaging Detail: | The machine is well packed into polywood case and transported to customers' port.; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T; | Model Number: | C9335; |
Core Components: | Bearing,Gearbox,PLC; | Brake plate dia.: | below 400mm; |
Package Preview: | ; | Color: | Customized Option; |
Max. Length of Workpiece (mm): | 100; | Port: | Shanghai port, Qingdao port; |
CNC or Not: | Normal; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ; |
Year: | new; | Voltage: | 220V; |
Certification: | CE,ISO; | Key Selling Points: | Easy to Operate; |
Machinery Test Report: | Provided; | Video outgoing-inspection: | Provided; |
Brake drum dia.: | 180-350mm; | Warranty of core components: | 1 Year; |
Lathe: | Drum/Disc repair; | Warranty: | 1 Year; |
Range of Spindle Speed(r.p.m): | 20 - 90 r.p.m; | Showroom Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Brazil,Peru,Indonesia,Mexico,Russia,Spain,Thailand,Argentina,South Korea,Chile,Algeria,South Africa,Japan,Malaysia,Australia; |
Condition: | New; | Dimension(L*W*H): | 695*565*635mm; |
Type: | Horizontal; | Marketing Type: | New Product 2020; |
Features:
Easy operation
Usefull tool
Repair Brake Drum and isc
Mechanical power feed
Processing diameter | brake drum dia.: 180-350MM |
Brake plate dia. below 400mm | |
Slide travel | 100mm |
Rotational speed of spindle | 60, 90r/min |
Feed | 0.15mm/r |
Motor Power | 0.75kw |
Overall dimensions (L×W×H) | 695×565×635mm |
Packing dimension (L×W×H) | 750×710×750mm |
NW/GW | 200/260KG |
C9335 standard accessories:

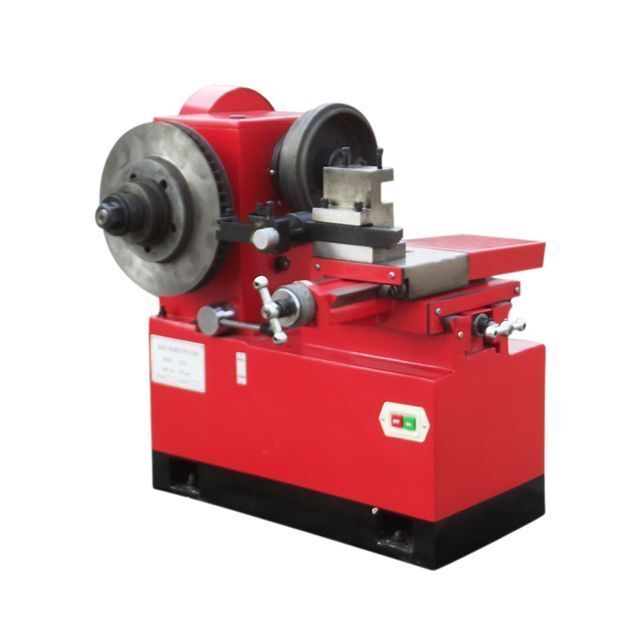

C9335 show in workshop:
Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies. One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd. The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.
