OEM: | YES; | Product Name: | professional 12 Channel audio Mixing Console Audio Bluetooth; |
integrated delay effects: | 16; | player module: | MP3; |
Brand Name: | Green audio; | Model Number: | GAX-CT12; |
Selling Units: | Single item; | power supply: | AC100-240V AC; |
Dimension (L x W x H): | 515*340*37(mm); | Size approximately: | 515*340*37(mm); |
Place of Origin: | Guangdong China; | Single gross weight: | 5.9 KG; |
Packaging Detail: | COLOR BOX :5PCS 57.5*45*49CM 29.7KGS; | Power: | USB \ bluetooth mixer; |
Package Preview: | https://sc02.alicdn.com/kf/H0c840de47aab43298d5551de18611248N.jpg_640x640.jpg,https://sc02.alicdn.com/kf/Hdfbf19467992466c9bf08b54e7bb4212B.jpg_640x640.jpg; | Input channel: | 12channels; |
Supply voltage Phantom: | + 48 V; | Frequency Range (Hz): | mixer audio; |
Keyword: | american audio dj mixer; | Single package size: | 57X43.5X10 cm; |
Material: | Metal+plastic; |

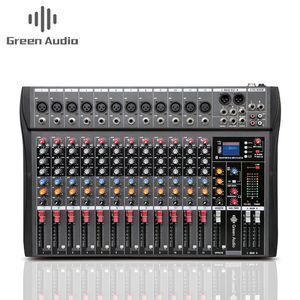

High quality professional digital audio mixer with amplifier mixer Bluetooth USB function
Specifications:
1. Color: Black
2. Material: Metal
3. Max. Input Level:
MIC 24dBu
Line 24dBu
Other Line 20dBu
4. Max. Output Level:
XLR 24dBu
TRS 24dBu
5. Master Meters: 10 Segment -24dB to CLIP
6. Channel Meters: 1 LED Signal Indication
7. Frequency Response: 20Hz to 30KHz 0.5dB
8. CMRR(MIC 1KHz): >75d
9. THD+N: <0.01%(Channel to mix out)
10. Crosstalk at 1kHz:
Fader shutoff > 85dB
Mute shutoff >85dB
Inter channel >82dB
11. Noise, rms 22Hz to 22kHz:
EIN -122dBu
Residual output noise < -90dBu
L/R main mix noise < -82dBu
Aux mix noise<-82dBu
12. MONO EQ:
LF, shelving, +/-15dB, 12KHz
HM, peak/dip, +/-15dB, 2. 5KHz
LF, shelving, +/-15dB, 80HZ
13. Mono Channel
XLR balanced, pin 2 hot, 2K ohm, Sensitivity -40 to +14 dBu
TRS balanced, tip hot, 10K ohm, Sensitivity -20 to+14 dBu
XLR, phantom+48V
14. 2-track Return: RCA, unbalanced, 4K ohm, -2 dBu
15. 2-track Send: RCA, unbalanced, <75 ohm, -2 dBu
16. L/R Output: XLR balanced, pin 2 hot, <75 ohm, +4 dBu, Max+22 dBu
17. FX/AUX Output: TRS unbalanced, tip hot, <75 ohm, -2 dBu, Max +18 dBu
18. Headphones: TRS, tip L, ring R, 30 to 600 ohm
19. Max. Power Input Power: 40 Watts
Brief introduction Function:
-6. 8 10 12 frame channels.
-LR main mix.
-2AUX send!
-Recording
-Response 3 bands EQ.
- Individual phantom power.
-Channels and main meters.
-Faders protected against 60mm dust.
-2-Follow-up and repetition to LR.
- Headphones and local monitor outputs.
-Stereo dedicated, meters of maximum retention monitor.
- Electronically balanced XLR outputs with unit capacity + 26dBu.
-Preamp + 34dBu maximum input capacity for microphone or line
-Under low noise mixing head amplifier design.
-Bluetooth and Mp3 player / with concise human-machine interactive interface?
-Processor of digital effects.
-Metal connectors, gold-plated XLRS, pots and sealed switches
-External power source of the power adapter.
1 x console mix
1 x power adapter (We plug)
1 x User's manual
Note:
1 allows an error of 1-5mm due to manual measurement and make sure you do not mind before placing the order. !
2 due to the difference of the screen, the color may be a little different than what you expect, please allow, Thank you!
1 x console mix
1 x power adapter (We plug)
1 x User's manual
Note:
1 allows an error of 1-5mm due to manual measurement and make sure you do not mind before placing the order. !
2 due to the difference of the screen, the color may be a little different than what you expect, please allow, Thank you!
