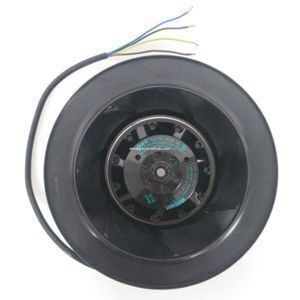

R2E190-AO26-05 ebmpapst centrifugal fan 230V R2E190-AO26-05

Supplier: Shanghai Lianxing Electronic Technology Co., Ltd.
Region: Shanghai, China
Contact: Ms Shimmy Chou
Price: $31.60 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	ebmpapst;	Payment Terms:	L/C,D/P,T/T;
Bearing Type:	Ball bearing;	Place of Origin:	Germany;
Motor type:	M2E068-BF;	Warranty:	1 Year;
Size:	190 mm;	Material:	PA plastic 6, fiberglass-reinforced;
Voltage:	230V;	Port:	Shanghai/Shenzhen;
Product name:	AC centrifugal fan;	Certification:	CE;
Type of Protection:	I (if protective earth is connected by customer);	Mounting:	Free Standing;
Color:	Coated in black;	Power:	50 Hz 58W;
Blade Material:	Plastic;	Electric Current Type:	AC;
Warranty:	1 Year;	Speed:	2500min-1;
Impeller:	7pcs;	After-sales Service Provided:	Online support;
Type:	Centrifugal Fan;	Weight:	1.2 kg;

Product Description

Nominal data:

Type R2E190-AO26-05
Motor M2E068-BF
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Type of data definition fa fa
Valid for approval / standard CE CE
Speed min-1 2500 2700
Power input W 58 75
Current draw A 0.26 0.34
Motor capacitor μF 2 2
Capacitor voltage VDB 400 400
Capacitor standard P0 (CE) P0 (CE)
Min. back pressure Pa 0 0
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 50 55

Technical features:

Mass 1.2 kg
Size 190 mm
Surface of rotor Coated in black
Material of impeller PA plastic 6, fiberglass-reinforced
Number of blades 7
Direction of rotation Clockwise, seen on rotor
Type of protection IP 44; Depending on installation and position as per EN 60034-5
Insulation class "B"
Humidity class F1-2
Max. permissible ambient motor
temp. (transp./ storage)
+ 80 °C
Min. permissible ambient motor
temp. (transp./storage)
- 40 °C
Mounting position Shaft horizontal or rotor on bottom; rotor on top on request
Condensate discharge holes Rotor-side
Operation mode S1
Motor bearing Ball bearing
Touch current acc. IEC 60990
(measuring network Fig. 4, TN
system)
< 0.75 mA
Motor protection Thermal overload protector (TOP) wired internally

Cable exit:Variable

Protection class I (if protective earth is connected by customer)
Product conforming to standard EN 60335-1; CE
Approval CCC; GOST
