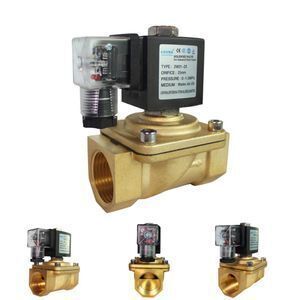

1 2 3 Inch Brass Water Air Gas 24V 12V Solenoid Valve

Supplier: Dongguan Chuancheng Pneumatic Components Co., Ltd.
Region: Guangdong, China
Contact: Ms Sherry Huang
Price: $10.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port Size:	3/8'' - 2'';	Valve Operation:	Normally Closed or Normally Open;
Type:	Solenoid Valve;	Position:	2 way;
Brand Name:	COVNA;	Model Number:	2W31 Solenoid Valve;
Supply Ability:	10000.0 Piece/Pieces per Month;	Working Pressure:	0-16 bar;
Media:	Air, Oil, Water, etc;	Connection:	G, NPT, BSP;
Packaging Detail:	Each solenoid valve in a foam box and single box, then in a master carton or as required.Plastic pallet and wooden pallet is available.;	Place of Origin:	Guangdong China;
Seal:	NBR, EPDM, PTFE;	Structure:	Diaphragm;
Payment Terms:	L/C,T/T,Western Union;	Certificate:	CE, RoHS, TUV, ISO9001;
Working Temperature:	-10~120℃;	Temperature of Media:	High Temperature;
Application:	General;	Coil:	Single Coil Control;
Power:	Solenoid;	Voltage:	DC12V-24V, AC24V-380V;

1 2 3 Inch Brass Water Air Gas 24V 12V Solenoid Valve

Specification

Product Characteristics:

1. Direct lifting diaphragm construction.

2. Open from 0 bar for low pressure system

3. High frequency of flying lead coil

Product Features:

Medium	Air, water, steam, oil, etc
Temperature	NBR: -10~80℃ ; EPDM: -10~120℃; VITON: -10~150℃
Pressure	0~1.0MPa
Size	1/8", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Port Thread	G, BSP, NPT, FLANGE
Orifice(mm)	12, 15, 20, 25, 32, 40, 50
Voltage	DC-12V, 24V ; AC-24v, 110v, 120v, 220v, 240v
Tolerance	+/- 10%
Material	Body: brass or stainless steel; seal: NBR, EPDM, PTFE armature tube: stainless steel304; stop: SS403F; springs: SS304 shading rings: SS304

Model	Media	Port Size	Orifice size	Pressure	Temperature	Voltage	Connection
2W11	Water, air, oil	3/8'', 1/2'', 3/4'', 1'' 1 1/4'', 1 1/2'', 2''	12, 15, 20, 25, 32, 40, 50	0-1Mpa	NBR seal: -10℃~80℃ EDPM:-10℃~120℃ VITION: -10℃~150℃	DC2V, 24V. AC24V, 120V, 240V/6-HZ 110V, 220C/50Hz	G, NPT, BSP, FLANGE
2W21
2W12
2W31

Feedback from client:

All can be made to order:

1. Voltage: DC 12V 24V, AC 220V

2. Normally closed and normally open

3. Material: Brass, stainless steel 304/316 and plastic

4. Pilot-operated, diaphragm and piston

5. Coil with LED light

6. Coil with timer

7. Seal: NBR(≤80℃), VITON(≤130℃), PTFE(≤180℃), EPDM(≤100℃), PPL(≤250℃)

Tips:

1. Working time. Solenoid valve only can be lasting without 15 mins/time, if it works a long time (more than 20 mins/time ), the solenoid is very easy to damage.

2. Voltage. Please confirm the voltage to your system. Or it will hard to works.

3. Please kindly know this solenoid is not waterproof, so don't let water over it.

Click here for more information!

Hot Sale Products

Brass Solenoid Valve Stainless Steel Solenoid Valve Pneumatic Solenoid Valve

Anti Corrosion Solenoid Valve High Pressure Solenoid Valve Solenoid Valve With Timer

Company Information

COVNA founded in 2000 and have 20 years of experience for solenoid valves, electric valves, pneumatic valves and pneumatic components. We own professional quality management and process inspection team which ensure the product with good quality., one year warranty and CE, RoHS, ISO9001, TUV certificate. We have large number of stock and most of the products could be delivered to you about 3-5 working days. COVNA professional and fast response sales team can reply your inquiry within 12 hours and offer you the best product consultant service.

“We are confident that our products can get your one hundred percent of trust and help you to achieve success with our great efforts.” - CEO Mr. Bond.

Our Advantage:

1. 20 years of experience of valves

2. Consistent product quality and reduction of defective productivity

3. Significant cost reduction versus competitors

4. 1 year of warranty time

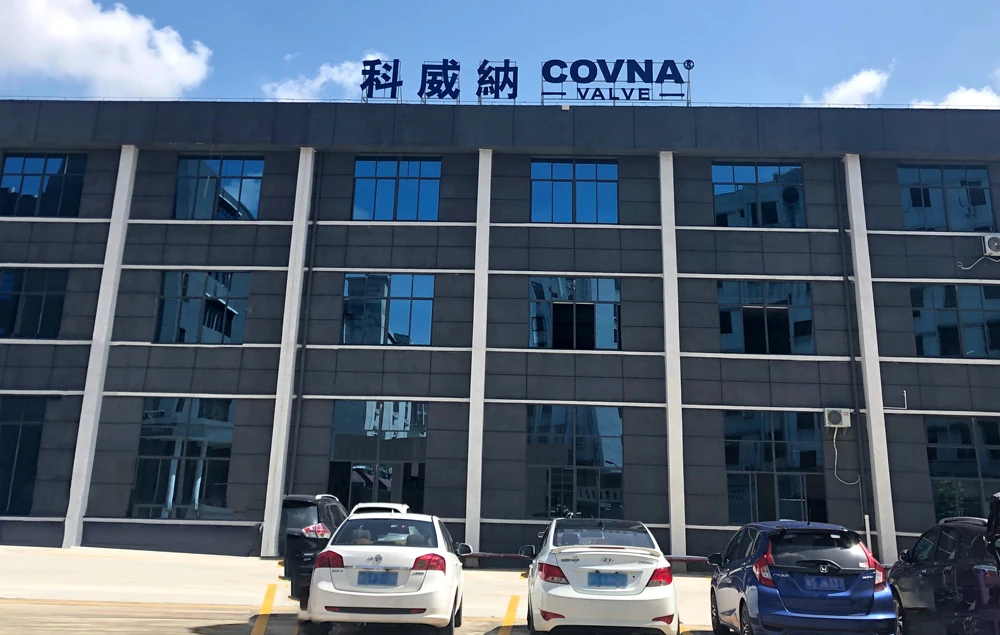

Factory View:
