300mbps 3g 4g lte gsm openwrt modem router lan sim card slot home wifi router

Product details
Interface:1 WAN+4 LAN, 1 SIM card slot, 1 TF card slot, 1 USB port;Supply Ability:10000 Piece/Pieces per Week;
Warranty:1 year;Style:Internal;
3G/4G:Support (3G or 4G module is necessary);Certification:CE,CCC;
Enclosure:Plastic;Products Status:Stock;
Wireless Speed:2.4G:300Mbps; 5G:867Mbps;Transmission Rate:512Kbps;
Port:Shenzhen;Chipset:MT7620A;
Packaging Detail:1pcs/1 packing box 20pcs/1 carton 300mbps 3g 4g lte gsm openwrt modem router lan sim card slot home wifi router;Flash/RAM:16MB/128MB (Max.32MB Flash+256MB RAM);
Antenna:2 or 4 external antennas;Brand Name:ZBT;
System:LEDE or openWRT;Interface Type:RJ-45;
Place of Origin:Guangdong China;Payment Terms:T/T,Western Union,Paypal or Credit Card;
Item:3g 4g lte gsm openwrt modem router lan sim card slot home wifi router;Type:Wireless;
Model Number:ZBT-WE3926;

300mbps 3g 4g lte gsm openwrt modem router lan sim card slot home wifi router



Notes

The product has three version, 2.4GHz version (Original version) 3G/4G version OR dual band version.



The web price is based on 2.4GHz version (original version).

That means that if you need dual band version or 3G/4G version, please contact me at any times!

300mbps 3g 4g lte gsm openwrt modem router lan sim card slot home wifi router

Product Description

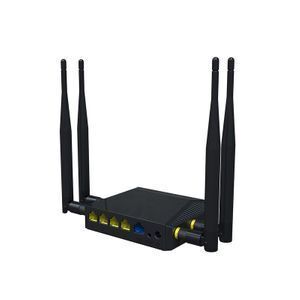

Product Photo





Hardware

Main Chipset

MT7620A

RAM

DDR2 128MB (MAX DDR2 256MB)

 SPI FLASH

16MB (MAX 32MB)

Protocol

IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11ac ,IEEE802.11a
IEEE 802.3,IEEE 802.3u

RT Power

802.11b   18dBm±2dBm;

802.11g   15dBm±2dBm;

802.11n   15dBm±2dBm;

802.11ac  depends on the 11AC mode;

Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER

802.11ac: depends on the 11AC mode;

Work Channel

2.4GHz choose :1-13

5GHz choose :149,153,157,161,165

Wireless Rate

2.4GHz: 300Mbps; 5.8GHz: 867Mbps

Work Frequency

2.4GHz, 5.8GHz

Antenna

2*undetachable 5dBi antenna

Interface

1*PCI-E slot

1*SIM card slot

1*USB 2.0 port

1*Micro SD card slot

1*10/100/100M WAN port(Auto MDI/MDIX)
4*10/100/100M LAN port(Auto MDI/MDIX)

LED

Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4

Button

Reset

Max Power consumption

< 12W

Dimension

(L*W*H)

141*85*26MM

300mbps 3g 4g lte gsm openwrt modem router lan sim card slot home wifi router

Certificate

300mbps 3g 4g lte gsm openwrt modem router lan sim card slot home wifi router

Company Information

300mbps 3g 4g lte gsm openwrt modem router lan sim card slot home wifi router

Our Services

 300mbps 3g 4g lte gsm openwrt modem router lan sim card slot home wifi router

FAQ
  • Can you printing Customer logo on products?

          Yes, we can printing your logo on products.



  • Do you provide PCBA board order only?

          Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.



  • Can you desin products as per customer's requirements?

           Yes, of course. We have our own R&D department, we have ability to design and produce at same time.



  • Do you....?

          Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!



300mbps 3g 4g lte gsm openwrt modem router lan sim card slot home wifi router

Packaging & Shipping

300mbps 3g 4g lte gsm openwrt modem router lan sim card slot home wifi router



If you have any question or want to order, please "Click“ here, you can send email to me, or you can contact me by below methods.
