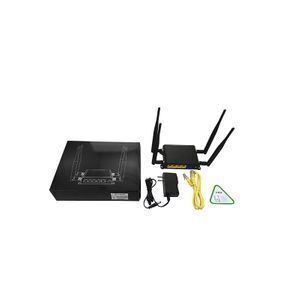

zhibotong we826-t2 4g router indoor lte wireless router

Product details
Type:Wireless;Standards And Protocols:Wi-Fi 802.11ac,Wi-Fi 802.11g,Wi-Fi 802.11n;
LAN Ports:4;Certification:CE FCC ROHS;
Wi-Fi Supported Frequency:2.4G;Place of Origin:Guangdong China;
Flash/RAM:16MB/128MB (Max.32MB Flash+256MB RAM);Item:zhibotong we826-t2 4g router indoor lte wireless router;
Chipset:MT7620A;Max. LAN Data Rate:300Mbps;
Products Status:Stock;Antenna:2 or 4 external antennas;
Brand Name:ZBT;Payment Terms:T/T,Western Union,Paypal or Credit Card;
Wi-Fi Transmission Standard:802.11ac;System:LEDE or openWRT;
2.4G Wi-Fi Transmission Rate:300 Mbps;Port:Shenzhen;
With Modem Function:No;Packaging Detail:1pcs/1 packing box 20pcs/1 carton zhibotong we826-t2 4g router indoor lte wireless router;
Wireless Speed:up to 300Mbps;Interface:1 WAN+4 LAN, 1 SIM card slot, 1 TF card slot, 1 USB port;
Function:Firewall,QoS,VPN;Enclosure:Black metal;
WAN Ports:1;Supply Ability:10000 Piece/Pieces per Week;
Working Frequency:2.4GHz;Wired Transfer Rate:10/100/1000Mbps;
3G/4G:Support (3G or 4G module is necessary);Application:Enterprise;

zhibotong we826-t2 4g router indoor lte wireless router



Notes

The above price is not including any 3G or 4G module.

That means that if you want to use SIM card to dial up Internet, you need to order 3G or 4G module.

Please ask me if you have any question about 3g or 4g wireless router before order here! Thanks!

zhibotong we826-t2 4g router indoor lte wireless router

Product Description

ZBT-WE826-T

16MB Flash+128MB RAM (If you need 32MB Flash or 256MB RAM, please tell me in advance)

This product is very hot sale in China, America, Canada and so on.

WE826-T LTE router with sim card slot also can be used as vehicles router ,you only need to use a conventor to change the car voltage to 12V.



we can also send you a vehicle Cigarette Lighter, following is the photo for it. If you need it, please tell me in advance.

Hardware

Main Chipset

MT7620A

RAM

DDR2 128MB (MAX DDR2 256MB)

 SPI FLASH

16MB (MAX 32MB)

Protocol

IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11ac ,IEEE802.11a
IEEE 802.3,IEEE 802.3u

RT Power

802.11b   18dBm±2dBm;

802.11g   15dBm±2dBm;

802.11n   15dBm±2dBm;

802.11ac  depends on the 11AC mode;

Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER

802.11ac: depends on the 11AC mode;

Work Channel

2.4GHz choose :1-13

5GHz choose :149,153,157,161,165

Wireless Rate

Max 300Mbps

Work Frequency

2.4GHz

Antenna

2*undetachable 5dBi antenna

Interface

1*PCI-E slot

1*SIM card slot

1*USB 2.0 port

1*Micro SD card slot

1*10/100/100M WAN port(Auto MDI/MDIX)
4*10/100/100M LAN port(Auto MDI/MDIX)

LED

Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4

Button

Reset/WPS

Max Power consumption

< 12W

Dimension

(L*W*H)

141*85*26MM

Software

WAN Type

PPPoE,Dynamic IP, Static IP

Work Mode

AP;

Router;

DHCP

Server, Client, DHCP Client List, Address Reservation

Port Forwareding

Virtual Server, Port Triggering, UPnP, DMZ

Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding

DDNS

Support

VPN Pass-Through

PPTP, L2TP, IPSec (ESP Head)

Band Ctrl

Support

Static Router

Support

System Log

Support

Other Function

Mac clone
NTP Synchronize
Web firmware upgrade

Others

Work Environments

Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing

Adapter

12V 1A

Authentication

CE, FCC, RoHs

Other accessories



Power adapter



zhibotong we826-t2 4g router indoor lte wireless router

Certificate

 WE826 mt7620 3g openWRT wireless lte 4G modem wifi router with sim card slo

t

Company Information

zhibotong we826-t2 4g router indoor lte wireless router

Our Services

 zhibotong we826-t2 4g router indoor lte wireless router

FAQ

Can you printing Customer logo on products?

Yes, we can printing your logo on products.



Do you provide PCBA board order only?

Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.



Can you desin products as per customer's requirements?

Yes, of course. We have our own R&D department, we have ability to design and produce at same time.



Do you....?

Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!



zhibotong we826-t2 4g router indoor lte wireless router

Packaging & Shipping

 WE826 mt7620 3g openWRT wireless lte 4G modem wifi router with sim card slo

t



If you have any question or want to order, please "Click“ here, you can send email to me, or you can contact me by below methods.
