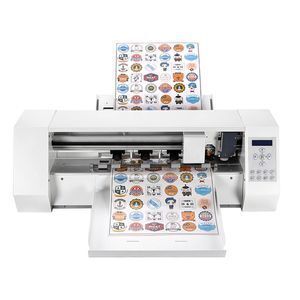

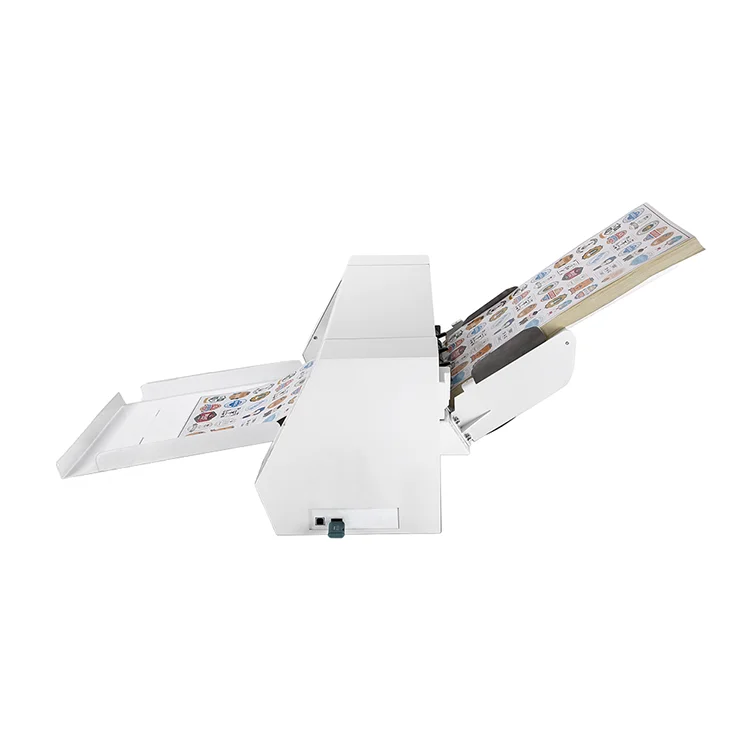

TOYOCUT A3+ Multi Sheet Label Cutter/Auto Feeding Contour Cutter/Digital Die Cutting Machine

Product details
Max media width:350mm;Brand Name:TZ;
Type:Die-cutting Machine;Place of Origin:china;
Computerized:Yes;Mechanical precision:0.025mm;
Interface:USB/U DISK/WIFI(option)/NETWORK(option;Weight:25kg;
Single package size:87.7X52.5X40 cm;Driver:Digital DC, step motor, Micro-step Driver;
Package Preview:;Applicable Industries:Printing Shops,Advertising Company;
After-sales Service Provided:Video technical support;Dimension(L*W*H):765*570*365;
Selling Units:Single item;Warranty:1 YEAR;
Condition:New;Max cutting speed:800mm/s;
Display:2*16 high resolution LCD;pressure:50g~800g;
Max cutting width:340mm;Packaging Detail:carton for outsdie packing;
Single gross weight:30.0 KG;Repeatable precision:< ±0.1mm;
Product Description
TOYOUCUT A3+ Multi Sheet Label Cutter/Auto Feeding Contour Cutter/Digital Die Cutting Machine

Max media width

350mm

Max cutting width

340mm

Blank size

5 mm blank around the material

Main board

High speed Arithmetic Microprocessor, 4MB cache

Interface;

USB/U DISK/WIFI(option)/NETWORK(option)

Control penal

Thin film switch (life 1 million times)

Driver

Digital DC, step motor, Micro-step Driver

Display

2*16 high resolution LCD

Drawing instruction

DMPL/HP-GL

Max cutting speed

800mm/s

Max cutting thickness

1mm

Pressure

50g~800g  (160 grades digital Adjustable)

Mechanical precision

0.025mm

Repeatable precision

< ±0.1mm

Power supply

AC90~240V/50Hz~60Hz

Positioning model

Bounded system, random original point setting

Working model

Roller,Single,Multiple media Auto-feeding

Operational environment

+5℃~ +35℃,relative humidity 30%~70%

CorelDRAW

X3-X8\2017\2018

Operating System

WINXP-WIN10

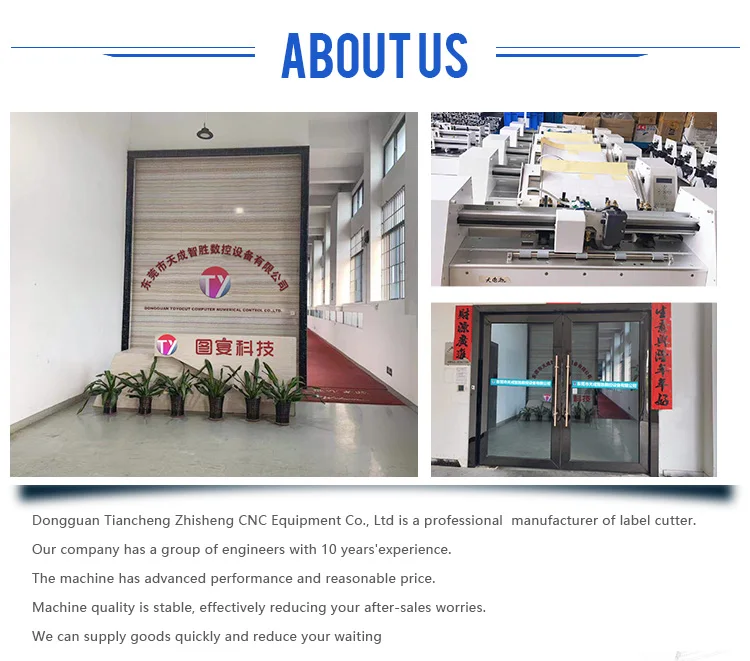

Company Information
