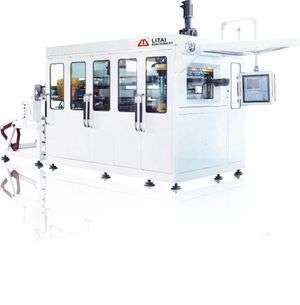

High Speed Plastic Cups Machine Production Line

Supplier: Ruian City Litai Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr litai jia
Price: $59400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Suitable Sheet:	PP/PS/HIPS/PVC/PET etc.;	Payment Terms:	L/C,T/T,Western Union;
Processing Type:	Plastic Thermoforming Machine;	Max.Forming Height(mm):	125 mm;
Air Pressure(MPa):	0.8 MPa;	Dimension(LWH):	8500x2200x3200mm;
Forming Width (mm):	750 mm;	Max. Forming Area:	750*480mm;
Water Comsumption(L/min):	0.7 L/min;	Product Type:	Plastic Cup;
Package Preview:	;	Production Speed(Cycles/min):	25;
Plastic Type:	PVC,PS,PP,PET;	Product name:	High Speed Plastic Cups Machine Production Line;
Certification:	CE;	Applicable Industries:	Manufacturing Plant;
Max. Sheet Width:	760mm;	Condition:	New;
Sheet Thickness(mm):	0.3 - 1.8 mm;	Power(KW):	140;
Key Selling Points:	Famous brand PLC;	Function:	Customized Cup/Tray Making Machine;
Forming Principle:	Positive Pressure;	Max. Forming Speed:	20-25 times/min;
Packaging Detail:	wooden packaging;	Forming Length (mm):	480 mm;
Weight (T):	6.5 T;	Port:	Ningbo/Shanghai;
Air Pressure:	0.6-0.8 Mpa;	Local Service Location:	Malaysia;
Supply Ability:	10.0 Set/Sets per Month;	After Warranty Service:	Field maintenance and repair service;
Place of Origin:	Zhejiang China;	Showroom Location:	Malaysia;
Warranty:	One Year;	Driven System:	Hydraulic;
Voltage:	380V/50HZ;	Brand Name:	Litai;
Heating Power (kW):	98 kW;	Max. Forming Depth:	125mm;
Air Comsumption(L/min):	3 L/min;

PRODUCT DESCRIPTION

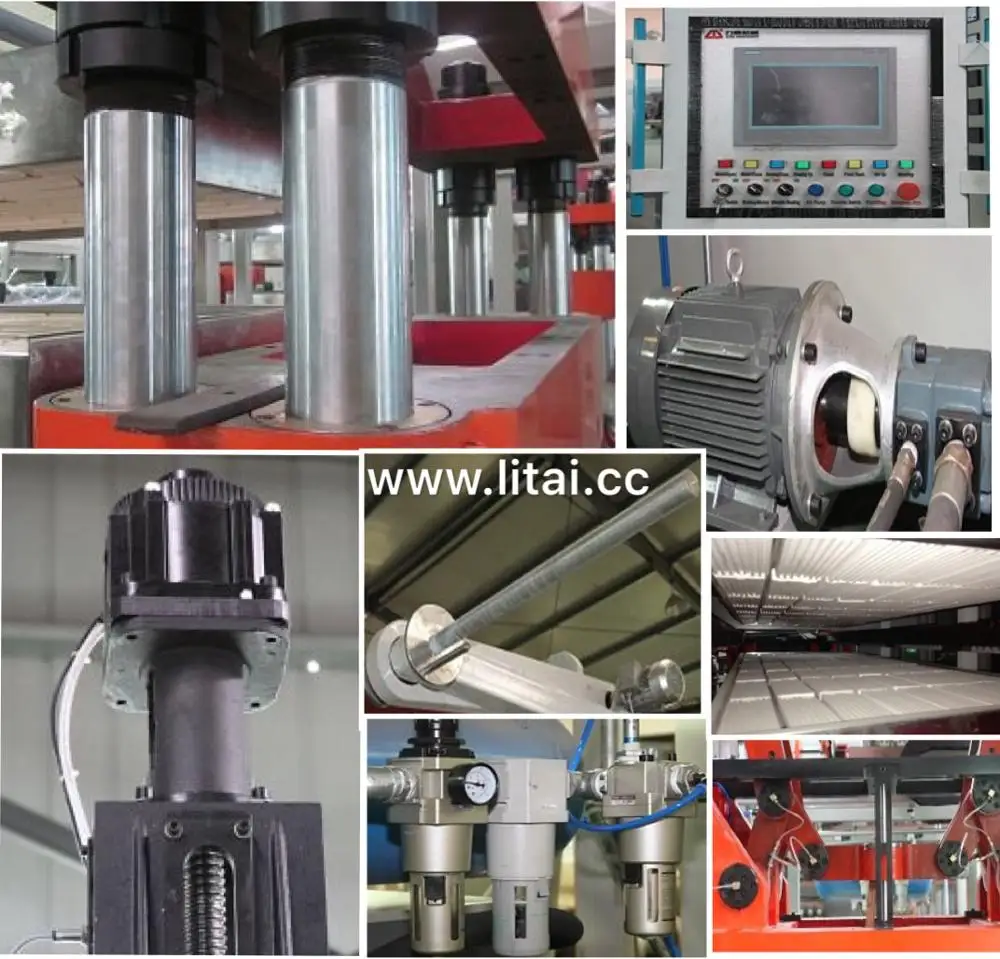

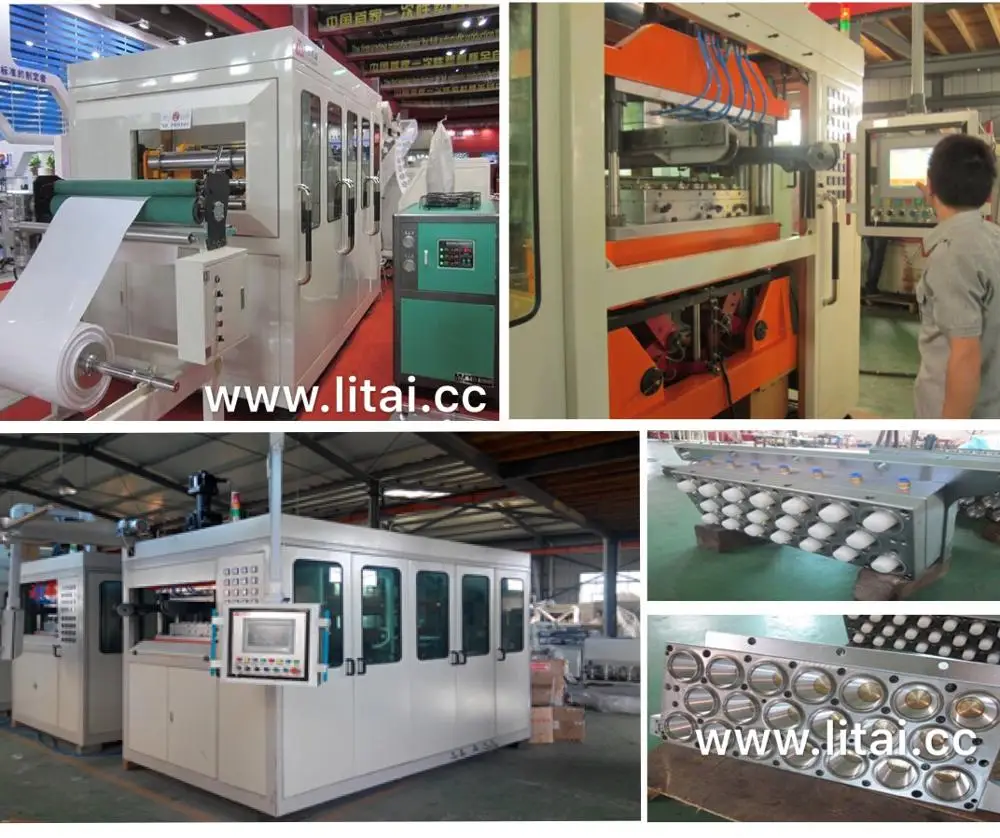

Plastic thermoforming machine adopts Japan Yaskawa servo motor for sheet feeding and stretching, Germany Siemens PLC for programme, touch screen for operation, stable, low noise, high efficiency, suitable for producing disposable products like plastic bowls, ice cream cups, cold drinking cups, yogurt cups, trays, plates, covers, lids, containers, etc.

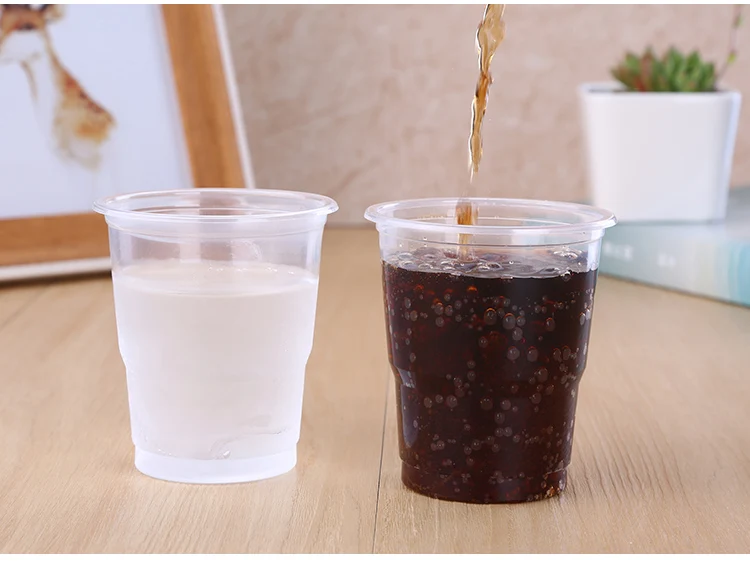

APPLLICATION OF PRODUCTS

TECHNICAL PARAMETER

Model	TQC-750
Max. Forming Area	750*480 mm
Max. Forming Depth	125mm
Sheet Thickness	0.3-1.8mm
Sheet Width	760mm
Forming Speed	20-25 times/min
Air Pressure	0.6-0.8mpa
Air Consumption	3.0m³/min
Water Consumption	0.7m³/h
Rated Power	140kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L8500W2200H3200mm
Weight	About 6.5 T
