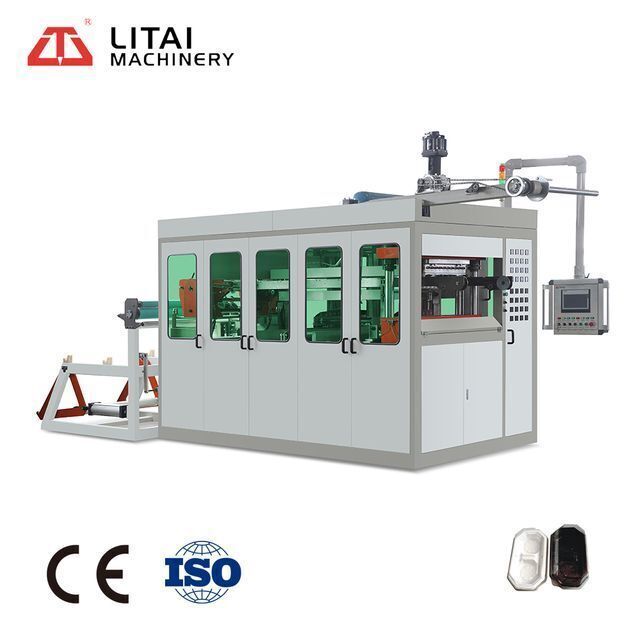

Plastic PET/PP/PS Cup Making Forming Machine with High Capacity

Supplier: Ruian City Litai Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr litai jia
Price: $39800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Processing Type:	Plastic Thermoforming Machine,Plastic Thermoforming Machine;	Power(KW):	98;
Local Service Location:	Egypt,Turkey,Pakistan,Malaysia,Australia;	Port:	Ningbo/Shanghai;
Weight (T):	5;	Voltage:	380V/50HZ;
Application:	Cups/bowls/dishes/plates/trays/covers/lids/containers making machine;	Production Speed(Cycles/min):	30;
Suitable material:	PP/PS/HIPS/PET/PVS etc.;	Forming Width (mm):	650;
Plastic Type:	PVC,PS,PP,PET;	Payment Terms:	L/C,Western Union,T/T;
Controlled:	PLC & Touch Screen;	Brand Name:	Litai;
Packaging Detail:	automatic plastic cup thermoforming machine will be packed in wooden case;	Max.Forming Height(mm):	125;
Package Preview:	;	Finished Products:	Plastic Cup Machine;
Heating Power (kW):	69;	Product Type:	Plastic Cup;
Key Selling Points:	Famous brand PLC;	Core Components:	PLC,Gearbox,Motor;
Sheet Feeding:	Servo Motor;	Water Comsumption(L/min):	8.4;
Showroom Location:	Pakistan,Algeria,Malaysia,Australia;	Air Pressure(MPa):	0.7;
Place of Origin:	Zhejiang China;	Condition:	New;
Certification:	ce;	Product name:	Plastic PET/PP/PS Cup Making Forming Machine with High Capacity;
Air Comsumption(L/min):	2000;	Driven Type:	Hydraulic Pressure;
Machinery Test Report:	Provided;	Forming Length (mm):	320;
Dimension(LWH):	7000x2000x3100mm;	Supply Ability:	20 Set/Sets per Month automatic plastic cup thermoforming machine;
Need to install several molds:	1 pairs;	Video outgoing-inspection:	Provided;
Max. Area:	650*320mm;	Warranty:	One Year;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Food Shop,Food & Beverage Shops;	Sheet Thickness(mm):	0.3 - 1.8 mm;
Warranty of core components:	1 Year;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Marketing Type:	New Product 2020;

Product Paramenters

Model	TQC-650B
Max. Forming Area	650*300mm
Max. Forming Depth	125mm
Sheet Thickness	0.3-1.8mm
Sheet Width	650mm
Max. Forming Speed	35 times/min
Air Pressure	0.6-0.8mpa
Air Consumption	2.0m³/min
Water Consumption	0.5m³/h
Rated Power	98Kw
Used Power	69Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L8500W2200H2700mm
Weight	About 5T

MACHINE MAIN PARTS
Touch Screen/PLC	SIEMENS (Germany)
Servo Motor	YASKAWA (Japan)
AC Contactor/Circuit Breaker	SCHNEIDER (France)
Proximity Switch	ROCKWELL (USA)
Solenoid Directional Valve/solenoid overflowing valve/counterbalance valve	YUKEN (Taiwan)
Intermediate relay	IDEC (Japan)
Intermediate relay base	OMRON (Japan)
Forming Valve	CKD (Japan)
Solenoid Valve	SMC (Japan) / Mindman (Taiwan)

Product display

APPLICATION

Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part are driven by servo motor.Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming, cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency.

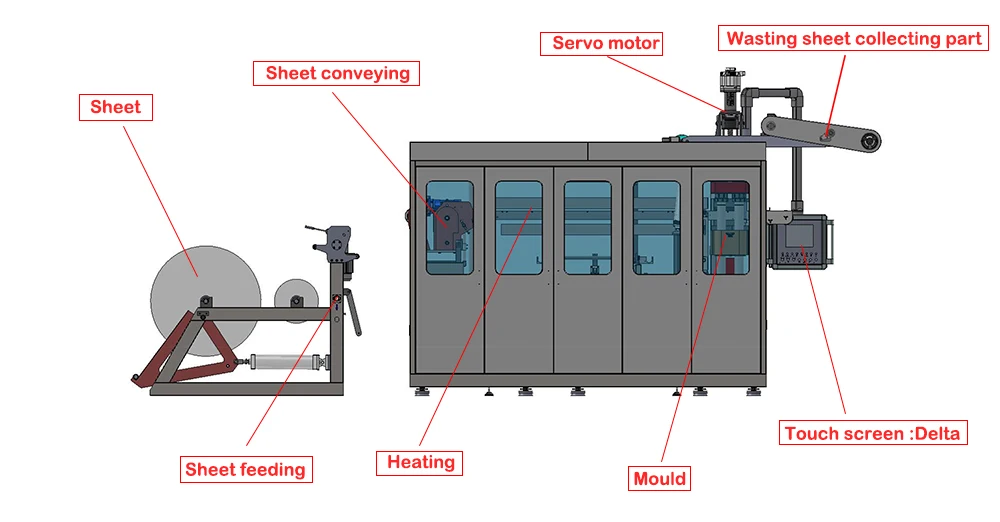

Product process

SUMMARY OF MACHINE

1. Automaticsheet feeder with square steel structure, high wear resistance, more stable, efficiently, the accuracy of feeding size could be improved by automatic feeding.

2. Material holder combines with the machine, which is controlled by cylinder, can move up and down. It is easy for operation, and saving more space.

3. Machine adopts PID temperature system, it shows high precision, and temp control tolerance＜1℃.

4. Movably mould device is conveniently to assemble and dismantle mold, and the vibration of the machine could be reduced by machine’s counterbalance valve controls the opening and closing speed, good stability, conducive to forming.

Company Profile

Guest Department

Exhibition

Packaging shipping

FAQ

Q1: Are you a factory or trading company?

A1: We are a factory, and we export our machines to more than 80 countries since 2001.

Q2: How long is the warranty period?

A2: We have a professional QC department in charge of products' quality.

Q3: How long is the warranty period?

A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.

Q4: How to install the machine?

A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
