Best price of China spider boom lift aerial work platform made in

1. Introduction

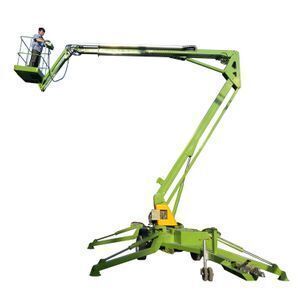

--- Towable boom lift is mainly used for maintenance or aerial work, it can also

move a short distance.

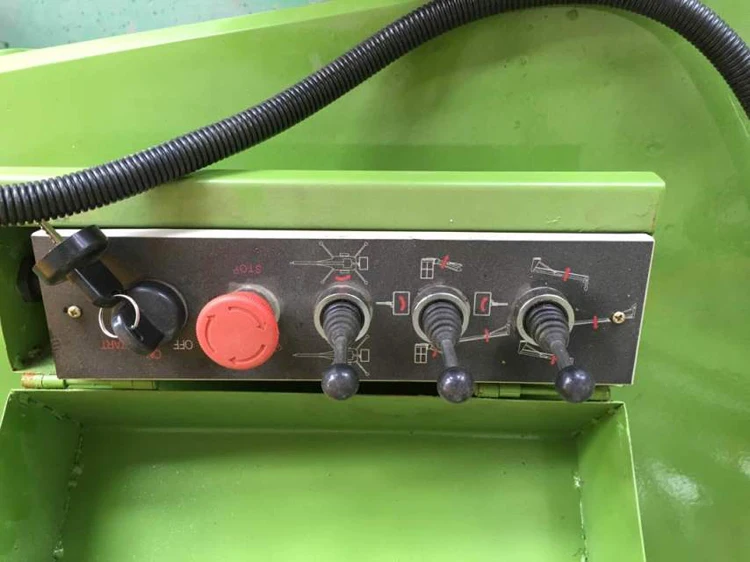

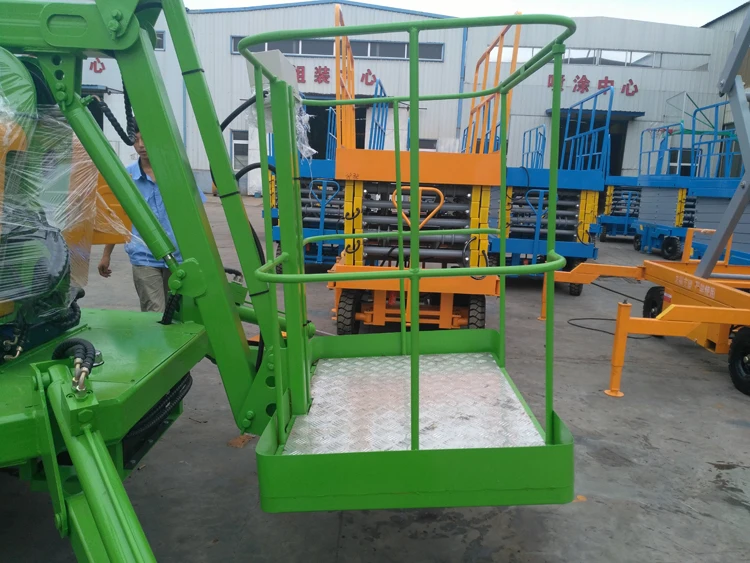

--- Towable lift can move upside and down automatically, be operated both in the up basket and ground.

--- Trailer boom lift with compact structure of lift could be used in tight space.

---Trailer folding arm lift--- it can be hung in the car, synchronized with the car, suitable for outdoor high-altitude operations.

2. Model list for reference

Type Platform size (MM) Lift height

(M) Capacity Dimension(M) Working radius Weight(t)

HTZB-6 1100*800 6 200kg 4.8*1.6*1.8 3m 1.4

HTZB-8 1100*800 8 200kg 5.2*1.6*1.9 3.5m 1.5

HTZB-10 1100*800 10 200KG 5.4*1.6*1.9 4m 1.6

HTZB-10 1100*800 10 300KG 5.7*1.6*1.9 4m 1.85

HTZB-12 1100*800 12 200KG 6.4*1.8*2.2 5.5m 1.8

HTZB-14 1100*800 14 200KG 6.8*1.8*2.2 6.5m 2

HTZB-16 1100*800 16 200KG 7.2*1.8*2.4 9m 2.2

3.Application:

1).Folding arm aerial vehicles are widely used in municipal, electricity, street lighting, advertising, communications, photography, landscape, transportation, terminals, airports, ports, large industrial and mining industries such as installation and maintenance of climbing operation.

2).Suitable for all kinds of outdoor rugged terrain, a wide range of space operations, mainly used in construction, bridge construction, construction, shipbuilding, airports, mines, ports, communications and power facilities and outdoor advertising construction equipment.

4.Advantages:

1)Three sources of power :220V/380V voltage, storage battery and Diesel engine ,and the storage battery works without noise

2)With four-automatic hydraulic legs ,it can be more stable

3)Boom rotation 360.so it can work across the barriers for aerial work

5.Safety :

1).Explosion-proof valves :protect hydraulic pipe ,ant-hydraulic pipe rupture

2).Spillover valve :it can prevent high pressure when the machine moves up ,adjust the pressure

3).Emergency decline valve ::it can go down when you meet an emergency

4).Phase lack &phase dislocation protection
