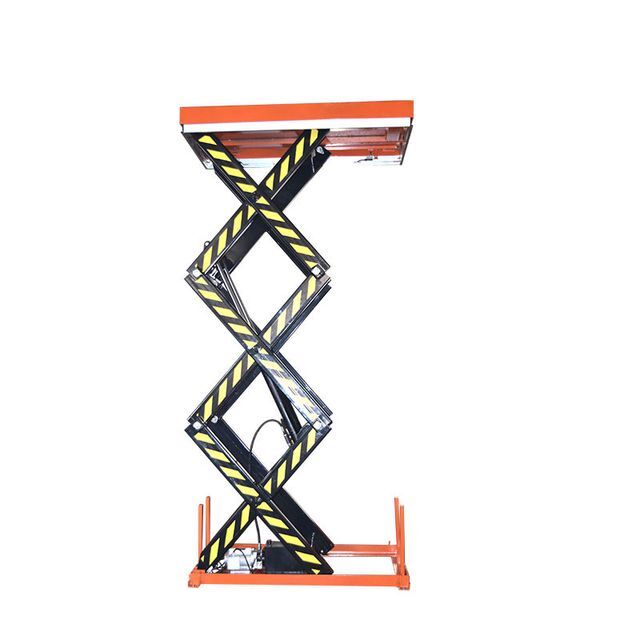

1 m to 6 m lifting height platform hydraulic scissor electric lift table system

Supplier: Qingdao Sinofirst Machinery Co.,ltd
Region: Shandong, China
Contact: Ms Alison Z
Price: $780.00 / 1 - 4 sets
$650.00 / 5 - 9 sets
$500.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Lift drive/drive:	hydraulic	Table size:	1700*1000mm
Surface treatment:	spray	minute. Lifting height:	600mm
color:	yellow, orange, blue, customized	brand:	Saga first
weight:	800 kg	Health status:	new
Marketing Type:	New Products 2020	Mechanical test report:	if
Core Components Warranty:	2 years	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
Safety Precautions II:	Explosion-proof valve	Core components:	Pressure Vessels, Motors, Bearings, Gears, Pumps, Gearboxes, Engines, PLCs
place of origin; place of origin:	Shandong China	Supply capacity:	1000 sets per month
Lifting mechanism:	scissor lift	Control voltage:	24V
port:	Qingdao Port, Shanghai Port, Ningbo Port, Guangzhou Port	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Alibaba Trade Assurance
strength:	2.2KW	Warranty:	2 years
Dimensions:	17001000600mm	Input voltage:	110V 220V 240V 380V, 400V, customized
Packaging Details:	Wooden pallet and high quality carton with stretch film.	Showroom location:	Canada, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Peru, Pakistan, India, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Chile, Colombia, Algeria, Romania, South Africa, Japan, Malaysia, Australia
Safety Precautions 1:	Aluminum Safety Sensor	After-sales service provided:	Engineers can repair machinery overseas
Video external inspection:	if	Operation Mode:	control handle

Sagafirst Low Price Electric Scissor Lift Table with CE

- OEM & ODM service -

SAGAFIRST brandStandard scissor lift table is a high quality electro-hydraulic scissor lift with load capacity from 1,000KG to 50,000KG and lifting height up to 6m. We also accept custom platform dimensions and lift heights.

Model	Load capacity (KG)	self-promotion (mm)	Maximum platform height (MM)	Platform size (MM)	Lifting time (S)	net weight (Kilogram)
SS1001	1000	205	1000	1300×820	20~25	160
SS1002	1000	205	1000	1600×1000	20~25	186
SS1003	1000	240	1300	1700×850	30~35	200
SS1004	1000	240	1300	1700×1000	30~35	210
SS1005	1000	240	1300	2000×850	30~35	212
SS1006	1000	240	1300	2000×1000	30~35	223
SS1007	1000	240	1300	1700×1500	30~35	365
SS1008	1000	240	1300	2000×1700	30~35	430
SS2001	2000	230	1000	1300×850	20~25	235
SS2002	2000	230	1050	1600×1000	20~25	268
SS2003	2000	250	1300	1700×850	25~35	289
SS2004	2000	250	1300	1700×1000	25~35	300
SS2005	2000	250	1300	2000×850	25~35	300
SS2006	2000	250	1300	2000×1000	25~35	315
SS2007	2000	250	1400	1700×1500	25~35	415
SS2008	2000	250	1400	2000×1800	25~35	500
SS4001	4000	240	1050	1700×1200	30~40	375
SS4002	4000	240	1050	2000×1200	30~40	405
SS4003	4000	300	1400	2000×1000	35~40	470
SS4004	4000	300	1400	2000×1200	35~40	490
SS4005	4000	300	1400	2200×1000	35~40	480
SS4006	4000	300	1400	2200×1200	35~40	505
SS4007	4000	350	1300	1700×1500	35~40	570
SS4008	4000	350	1300	2200×1800	35~40	655
HD 1000	1000	305	1780	1300X820	35-45	210
HD 2000	2000	350	1780	1300X850	35-45	295
HD 4000	4000	400	2050	1700X1200	55-65	520
HT1000	1000	470	3000	1700x1000	35-45	450
HT2000	2000	560	3000	1700x1000	50-60	750
HF400	400	600	4140	1700x1000	30-40	800
HF800	800	706	4210	1700x1000	70-80	858

heavy duty customScissor lift platforms use stronger materials and components to increase load capacity and lift height. We will make the platform size, maximum platform height and load capacity according to your requirements.

Product Description

Hydraulic scissor liftThe workbench is an important part of the material handling area and one of the professional aerial work equipment. Scissor lifts are mainly used to transport goods from one working layer to another and can be installed on the ground or in pits.

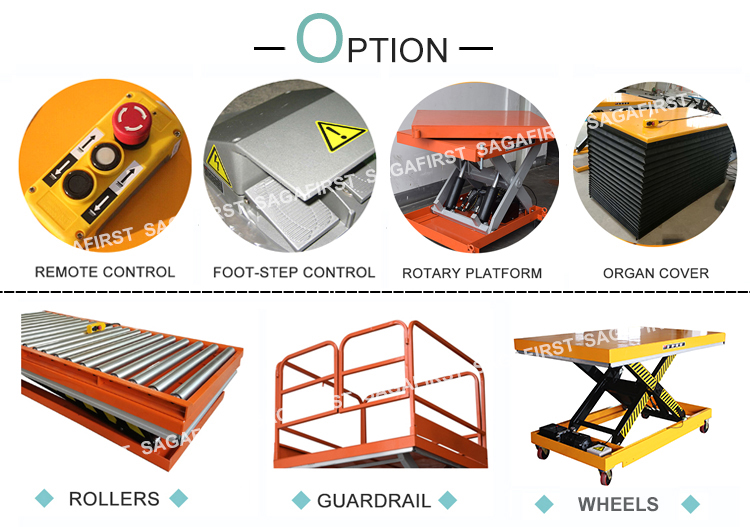

Saga firstThere are also many options available to customers, such asWireless controller, foot control, roller, safety bellowsand so on, customers can provide the SIN they needOFIRST, we will strive to meet the needs of all customers.

1. The Sagafirst scissor lift table is shot blasted and painted for high corrosion resistance.
2. The high-quality pump station makes the scissor lift table rise and fall very smoothly.
3. Anti-pinch scissor design, self-lubricating design is adopted at the king pin roller to prolong the service life.
4. Removable lifting eye, which can help to lift the table top and install.
5. Heavy duty cylinder with drain system and check valve to stop the scissor lift from descending in the event of a hose burst.
6. The pressure reducing valve prevents overload operation; the flow control valve makes the descending speed adjustable.
7. Simple structure, convenient operation and maintenance.
8. Comply with American standard ANSI/ASME and European standard EN1570.

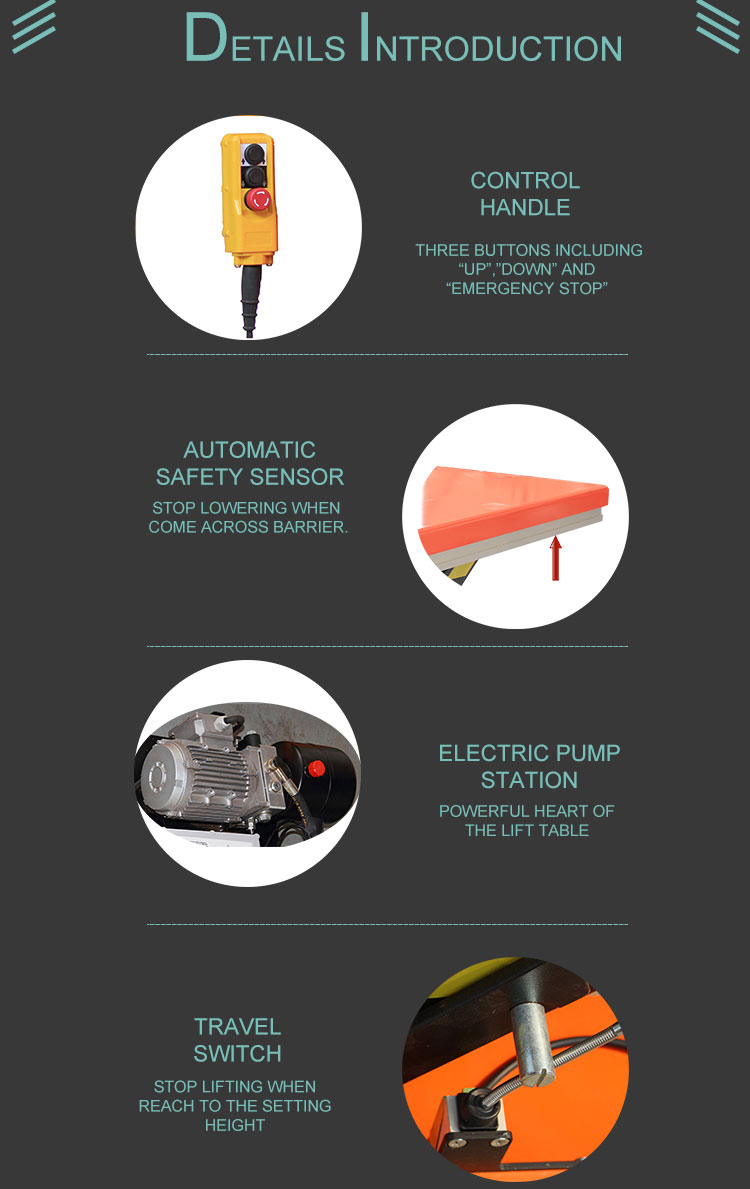

detailed image

Safety Instructions:
1. Explosion-proof valve 2. Relief valve
3. Emergency drop valve 4. Overload protection locking device.
5. Emergency drop valve 6. Automatic safety sensor: stop when encountering obstacles.

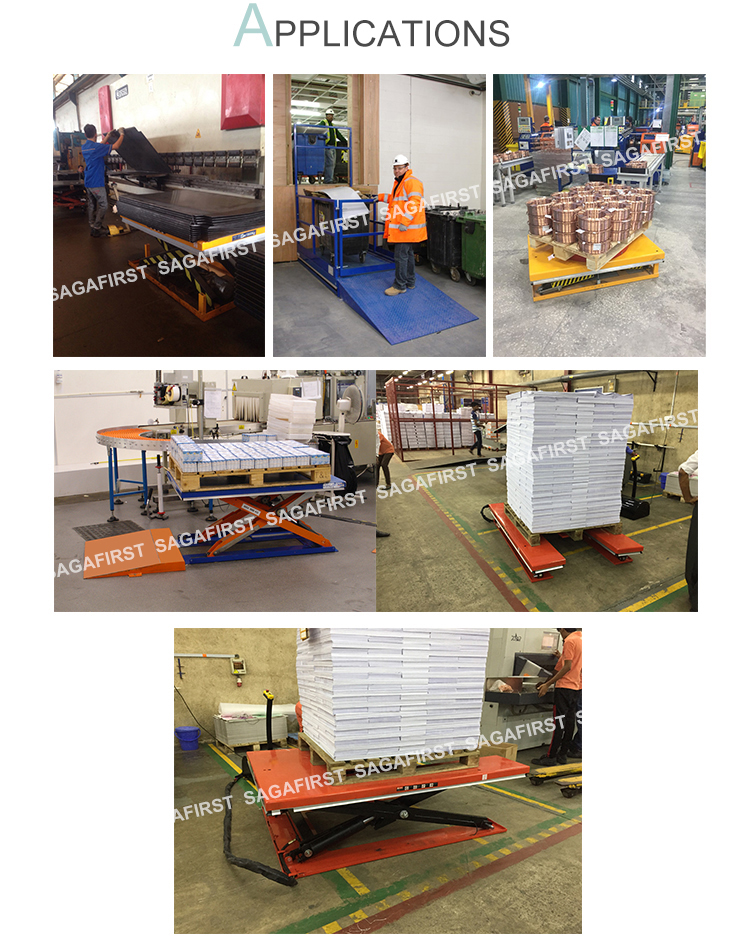

application

Fixed scissor liftMainly used in workshops, warehouses, factories and other places, and can be used as parking lots, car showrooms, etc. to load cars. The lift can also be used for electrical and building roof maintenance as well as many industrial applications.
