For sale 10m-45m aerial work platform towable articulated arm lift, equipped with diesel battery power

Supplier: Qingdao Sinofirst Machinery Co.,ltd
Region: Shandong, China
Contact: Ms Alison Z
Price: $9550.00 / 1 - 4 sets
$9200.00 / 5 - 9 sets
$3500.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	1000 sets per month	Emergency Denial System:	Yes
Lift drive/drive:	hydraulic	Driving speed:	up to 90 km/h
Turning degree:	360°	After-sales service provided:	Engineers can repair machinery overseas
Supporting Legs:	Hydraulic/4	Health status:	new
Dimensions:	590023002350mm	brand:	Saga first
Packaging Details:	High quality carton with stretch film.	port:	Qingdao Port, Shanghai Port, Ningbo Port, Guangzhou Port
weight:	2800 kg	Mechanical test report:	if
Working radius:	5.2m	minute. Lifting height:	1900mm
Mobile Mode:	Tractor with tractor	Table size:	1100*760mm
place of origin; place of origin:	Shandong China	Marketing Type:	New Products 2020
Surface treatment:	spray	Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Morocco
Core Components Warranty:	1 year	Core components:	Pressure Vessels, Motors, Bearings, Gears, Pumps, Gearboxes, Engines, PLCs
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Alibaba Trade Assurance	control panel:	up and down
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies	Warranty:	1 year
Lifting mechanism:	Articulated lift	Video external inspection:	if
strength:	Diesel,Gas, Battery, Diesel and Battery,Gas and Battery, AC,,2.0KW

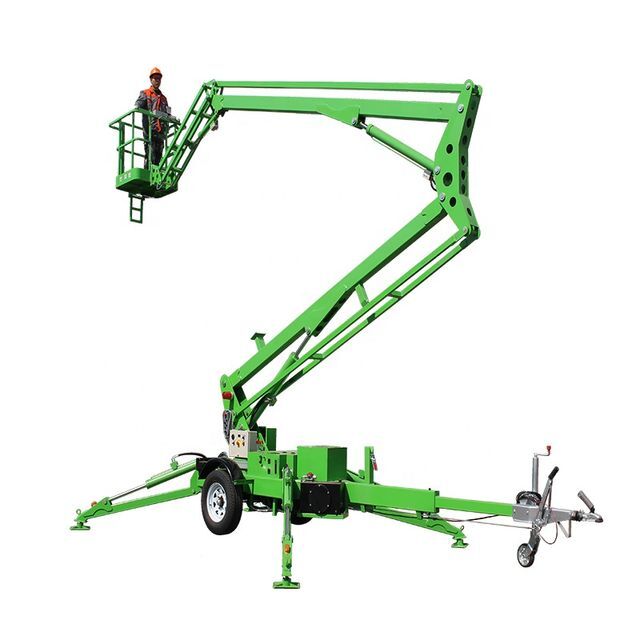

14m-45m Aerial Work Platform Articulated Arm Lift

- OEM & ODM service -

Model	TBL-8	TBL-10	TBL-12	TBL-14	TBL-16	TBL-18	TBL-20
Platform size (mm)	1200*800	1200*800	1200*800	1200*800	1200*800	1200*800	1200*800
Lifting height (m)	8	10	12	14	16	18	20
Working height (m)	10	12	14	16	18	20	twenty two
Load capacity (kg)	200	200	200	200	200	200	200
working radius	4.5	5.2	6.4	8.5	9.5	10.9	12.5
Net weight/kg)	1538	1700	1800	2350	2600	4300	4450
Overall length (mm)	5200	5400	6400	6200	7000	7100	7700
Overall width(mm)	1585	1665	1665	1730	1730	1850	1850
Overall height (mm)	1900	1900	1900	2100	2200	2260	2260

Towable Articulated Arm LiftIt is one of the most ideal aerial work platforms for indoor and outdoor maintenance work. It can rotate 360 degrees in the air, and the platform height is from 8m to 20m. Articulating boom lifts are powered by diesel, petrol, battery or hybrid. Widely used in residential units, street lamp maintenance, factory height maintenance, construction sites, etc.

Product Description

Towable Articulated Arm LiftMove by tractor tow and lift by diesel, natural gas or battery power. Operator can control liftexist platform and groundthrough the control system.

Fast travel speed High quality retractor with multiple power options
Rubber wheel synchronous braking system Hydraulic support legs
Emergency stop button Emergency lowering system cylinder check valve
Explosion-proof valve control valve overload protection system

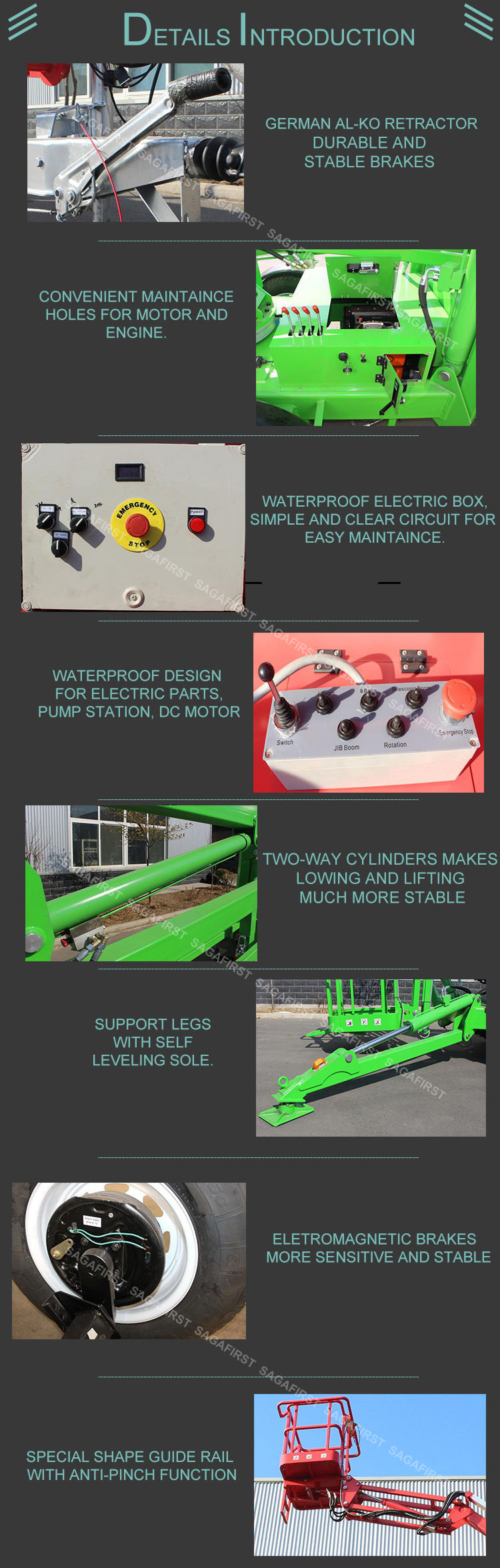

detailed image

Safety Instructions:
1. Explosion-proof valve 2. Relief valve 3. Emergency drop valve

4. Check valve 5. Regulator valve 6. Gradient

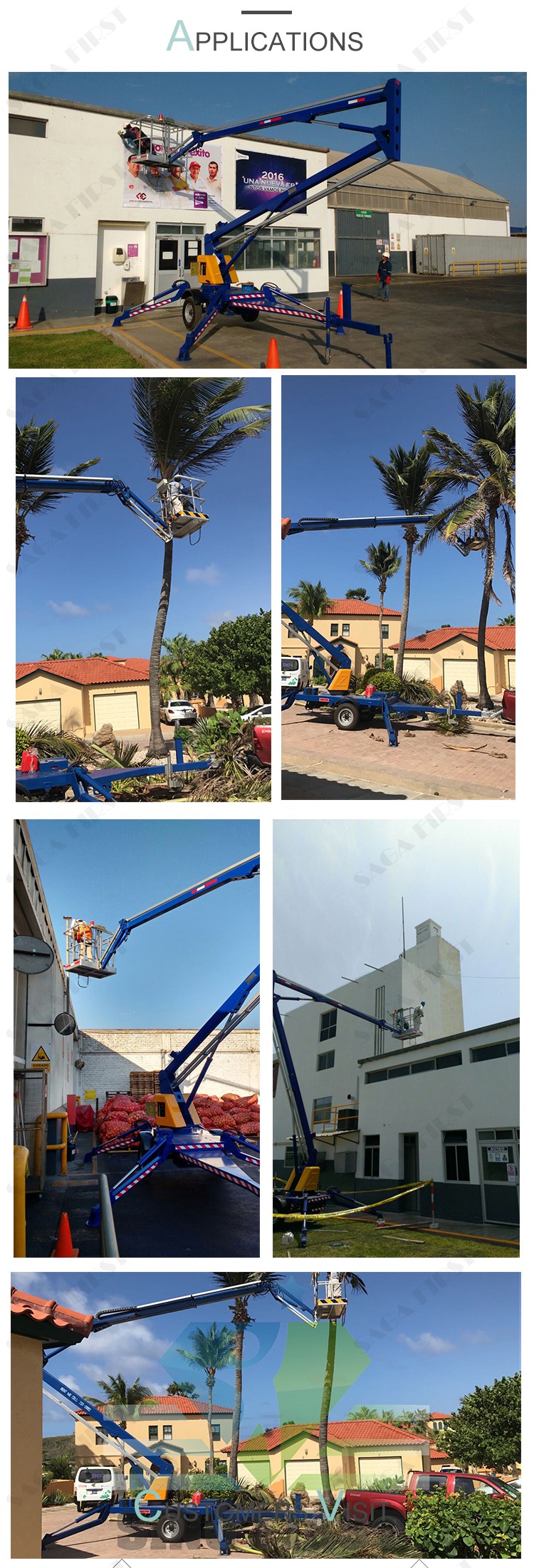

application

Towable Articulated Arm LiftWidely used in construction sites, building maintenance, daily maintenance of high-altitude operations in factories and various types of high-altitude operations.
