NM-2.4 Multi-function Lithium Electric Grinder

Supplier: Benxi Public Power Railway Equipment Manufacturing Co., Ltd.
Region: Liaoning, China
Contact: Mr Rongzhi Li
Price: $850.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Material:	stainless steel;	Port:	Dalian;
Application:	Rail Maintenance;	After-sales Service Provided:	Online Service;
Packaging Detail:	Carton or fumigation-free plywood packing;	Supply Ability:	100 Piece/Pieces per Month;
Type:	Railway track grinding machine,Railway Maintenance Machine;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Place of Origin:	Liaoning China;	Color:	Yellow/Black;
Weight:	35kg;	keyword:	rail grinding tool;
Name:	Multi-function Lithium Electric Grinder;	Quality Control:	Inspection;
Certificate:	ISO9001:2008;	Surface:	Color Painting;
Brand Name:	BXZL;

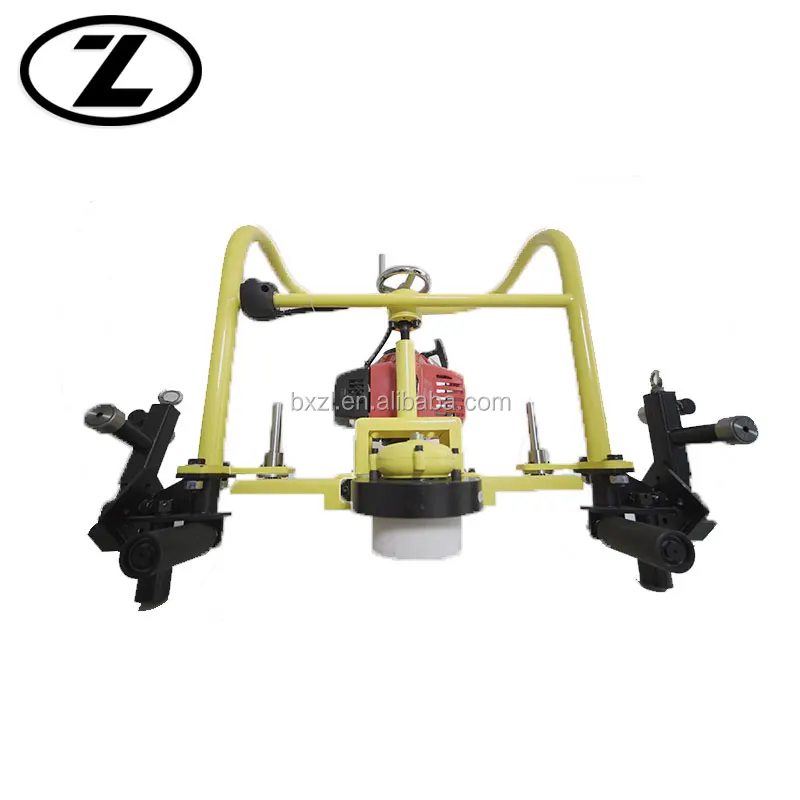

NM-2.4 Multi-function Lithium Electric Grinder

Product Description

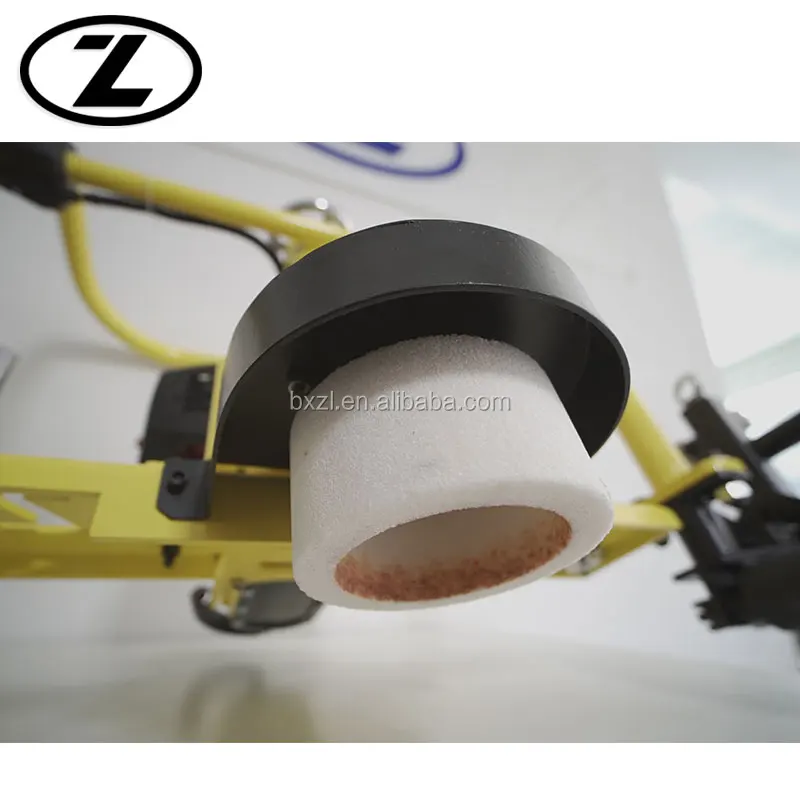

Structure: It is composed of gasoline engine, grinding device, imitation positioning device, walking device, precise feeding device and operation handrail.

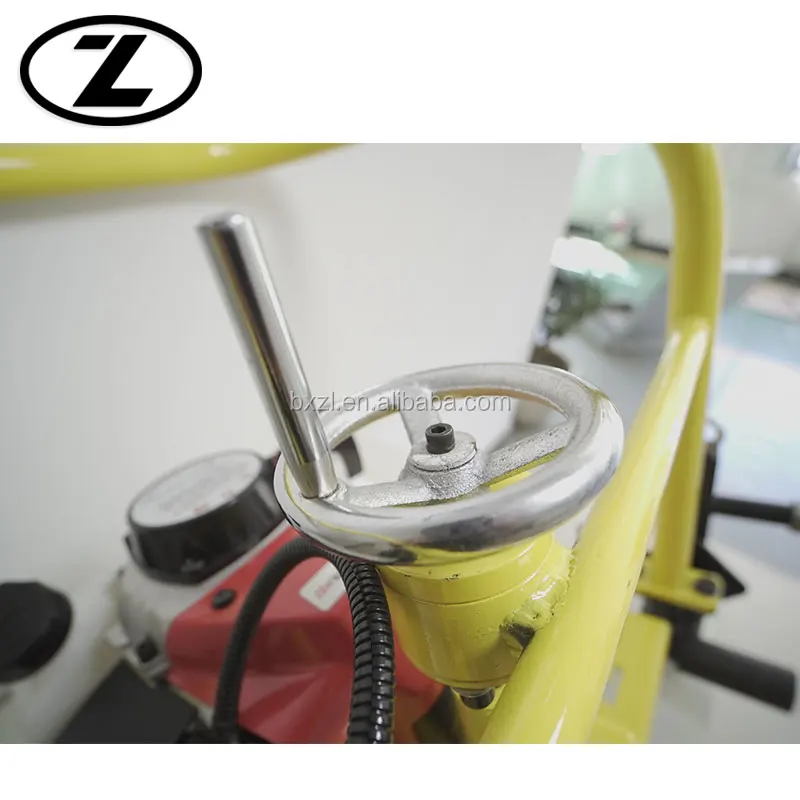

Working Principle: The grinding position is confirmed by the positioning device, the grinding accuracy and the grinding quantity are positioned by the feeding device. The power transmission spindle is transmitted by the engine through the centrifugal clutch, and the grinding wheel is transferred to the output shaft by 1:0.9 through the multi-wedge belt and multi-wedge pulley, so that the grinding wheel can be grinded.

Features:
With a certain self-weight, labor-saving, good grinding effect, all-round grinding.

Serial number	Project	NM-2.4
1	Linear velocity of cup grinding wheel	≤80m/s
2	Cup wheel diameter	100mm
3	Grinding wheel spindle speed	≥3600r/min
4	Dimensions	84×64×62cm
5	Weight	≤35kg
6	Gasoline Model	G5LS
7	Gasoline Power	2.0kW
8	Gasoline tank volume	1.1L
9	Feed accuracy	<0.15mm
10	Total feed	> 40mm
