Portable Internal Combustion Tamping pick ND-7.0

Supplier: Benxi Public Power Railway Equipment Manufacturing Co., Ltd.
Region: Liaoning, China
Contact: Mr Rongzhi Li
Price: $1030.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Color:	Yellow/Black;	Surface:	Color Painting;
Material:	stainless steel;	Type:	Railway track tamping machine,Railway Maintenance Machine;
Packaging Detail:	Carton or fumigation-free plywood packing;	Supply Ability:	100 Piece/Pieces per Month;
Place of Origin:	Liaoning China;	Quality Control:	Inspection;
Port:	Dalian;	Brand Name:	BXZL;
Application:	Rail Maintenance;	keyword:	rail tamping tool;
Certificate:	ISO9001:2008;	Name:	Portable Internal Combustion Tamping pick;
Weight:	18kg;	After-sales Service Provided:	Online Service;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

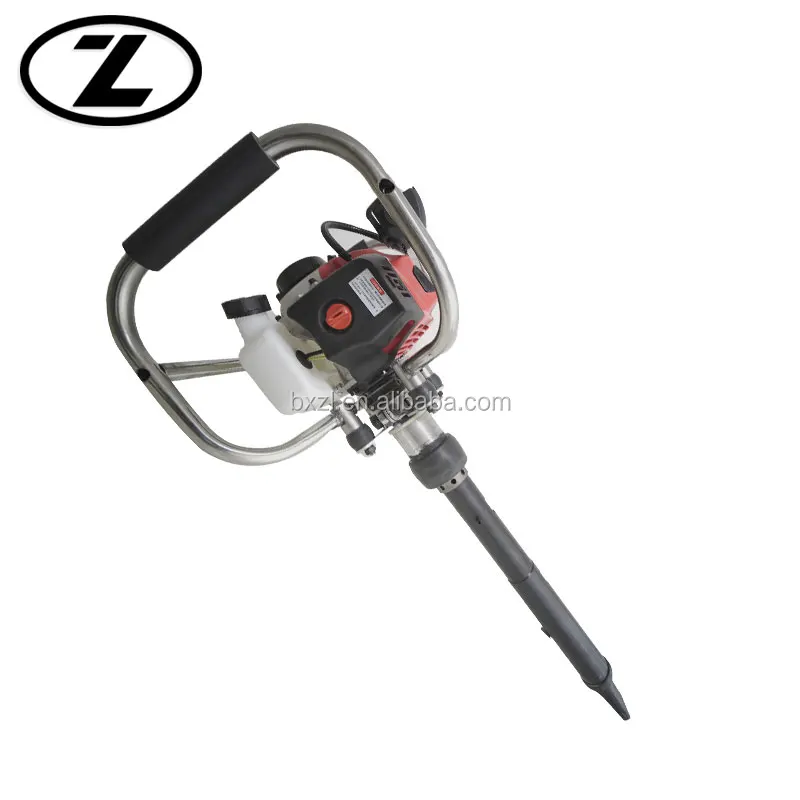

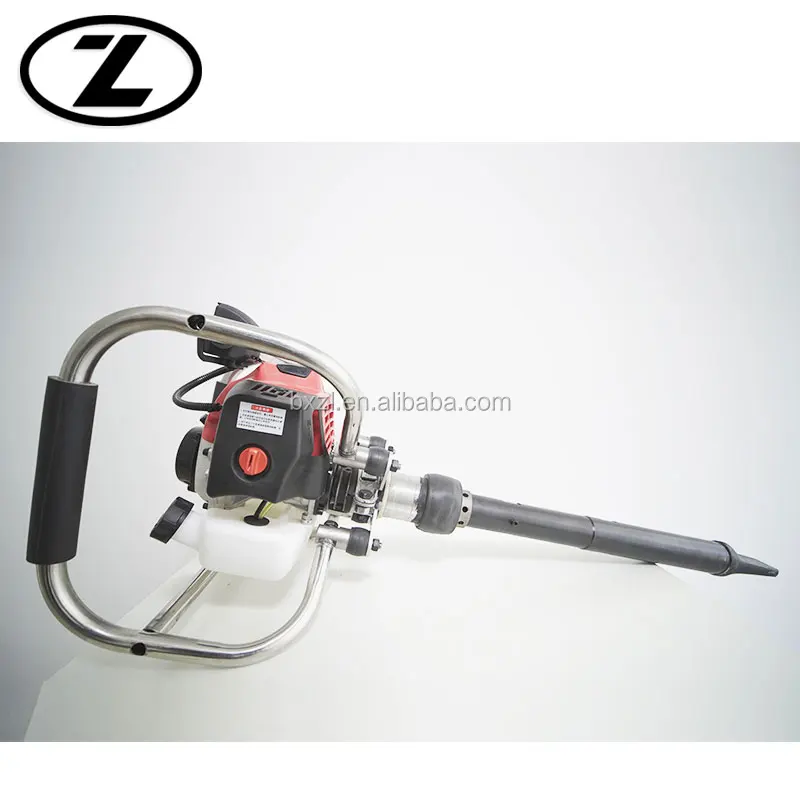

Portable Internal Combustion Tamping pick, ND-7.0

Product Description

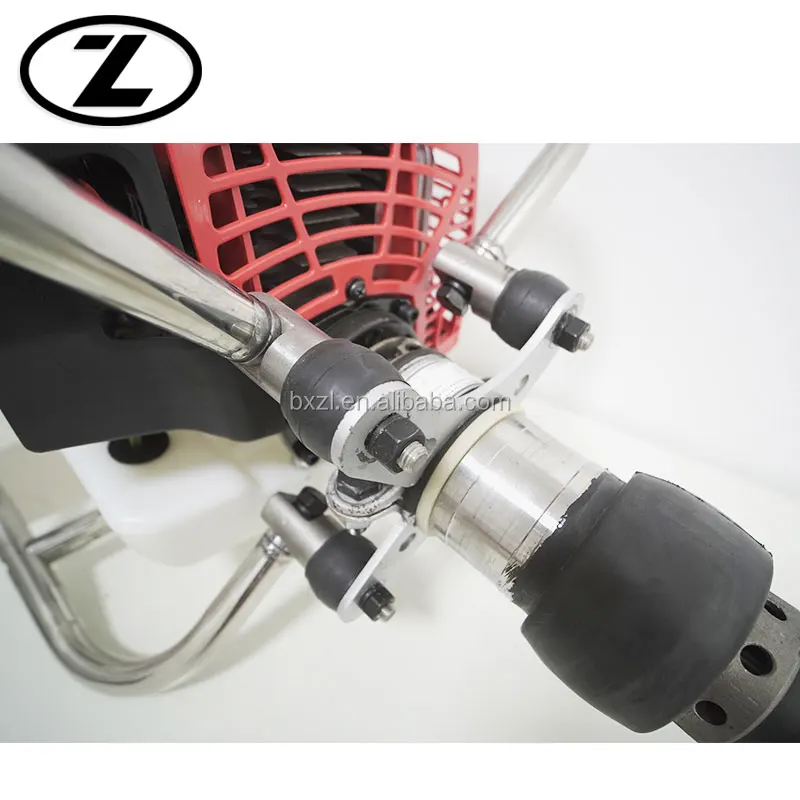

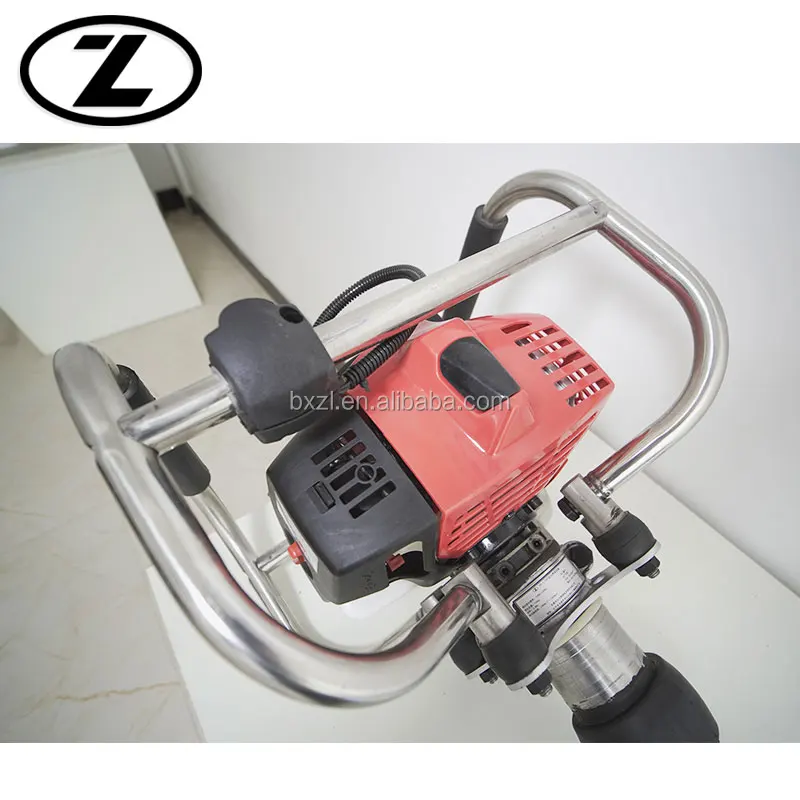

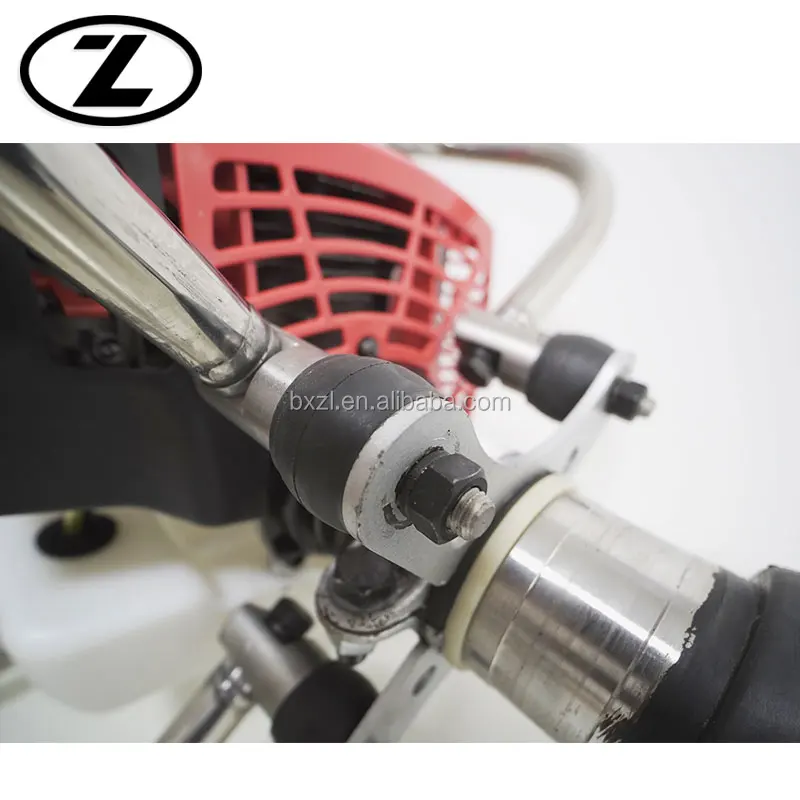

Structure: It consists of engine, clutch assembly, operation arm assembly, transmission shaft assembly, upper shock absorber, lower shock absorber and pick body assembly.

Working Principle: Small gasoline engine is used as power, and centrifugal clutch is used to output power. The eccentric shaft is rotated to generate exciting force, which acts on ballast to rearrange, compact and tamping.

Features:

Compared with ND-4.2, ND-5.0 increases weight and engine power, and has better tamping effect.

Serial number	Project	ND-7.0
1	Vibration acceleration	1000m/s²-1500m/s²
2	vibration frequency	110-140 HZ
3	Dimensions	115 x 35 x 40 cm
4	Weight	≤18 kg
5	Gasoline Model	G5LS
6	Gasoline Power	2.0kw
7	Gasoline tank volume	1.1 L
8	Work	2-stroke all-round, continuous
