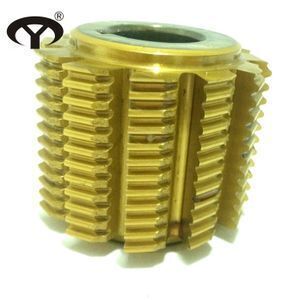

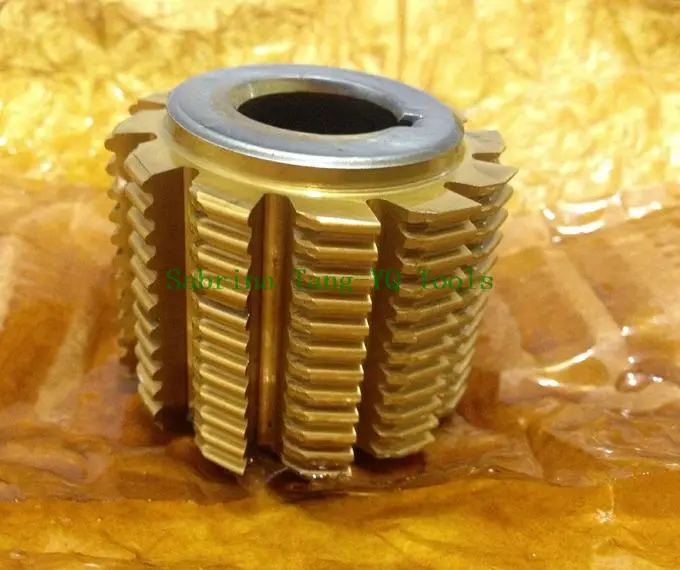

HSS 5M/8M/14M Timing Belt Pulley Hob with Single Start

Product details
Payment Terms:L/C,D/P,T/T,Western Union,MoneyGram,Paypal;No. of start:Single/Multi;
Place of Origin:Chongqing China;Color:Golden/Silvery;
Model Number:Standard size;Supply Ability:5000 Piece/Pieces per Month;
Packaging Detail:Package of HTD 5M/8M/14M timing pulley hob cutter: oiled paper+carton+wooden case or as requirement;Material:HSS,M2/M35;
Tooth Profile:HTD/STD/STS/AT/DT/GT;Usage:Gear Hob;
Delivery Detail:within 25 days;Module:5M~20M;
Coating:TIN/TIALN;Port:Shenzhen;
Machine Type:Hobbing Machine;Brand Name:YQ;

HSS 5M/8M/14M Timing Belt Pulley Hob with Single Start



 Specification table of timing pulley hob:





Timing pulley profile

Belt type

Common arrange

Size

S.T.D

MXL(2.032)

10-23T 24-R

32×25×13

XL(5.08)

10-R

55×50×22

L(9.525)

10-R

55×50×22

H(12.7)

14-19T 20-R

70×60×27

XH(22.225)

18-R

85×85×32

XXH(31.75)

18-R

90×90×32

H.T.D

2M



50×40×22

3M

9-15T 16-25T 26-80T 81-R

50×40×22

5M

11-16T 17-31T 32-79T 80-200T

50×50×22

8M

18-27T 28-40T 41-89T 90-200T

70×65×27

14M

28-40T 41-89T 90-R

75×75×27

20M





S.T.S

2M





3M

16-25T 26-80T

50×40×22

5M

20-24T 25-40T

55×60×27

8M

20-24T 25-31T 32-48T 49-120T

70×65×27

14M

28-36T 37-51T 52-100T 101-200T

75×75×27

20M





A.T.(D.T)

A(T5)

10-14T 15-20T 21-R

55×45×22

T10

12-15T 16-20T 21-R

65×60×27

T20

15-20T 21-R

80×80×32

(D)T5

13-17T 18-25T 26-40T 41-R

55×45×22

T10

12-15T 21-R

65×60×27

T20

15-20T 21-R

80×80×32

G.T.

2GT

16-25T 26-80T



3GT

25-26T 26-50T



5GT

17-31T 32-79T



8GT

18-28T 29-89T



























































Hob cutter series :  gear hob , pre-shaving gear hob, pre-grind gear hob, involute spline hob, parallel side spline hob, ground sprocket hob , and timing pulley hob.



The production process of HSS HTD 5M/8M/14M/20M timing pulley hob cutter :























Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
