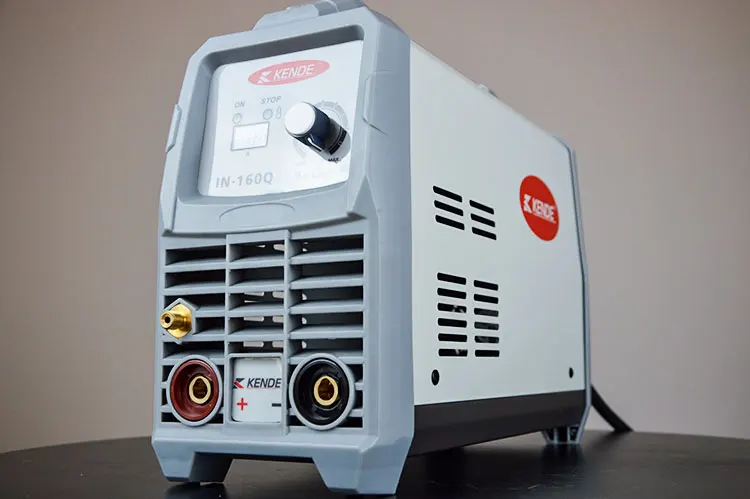

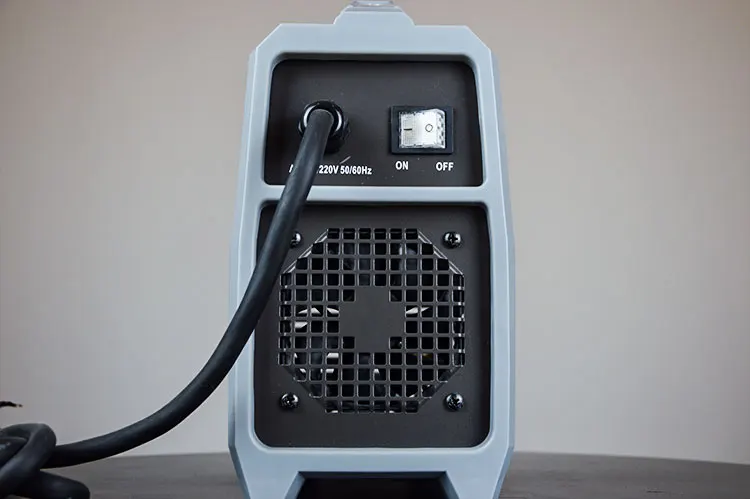

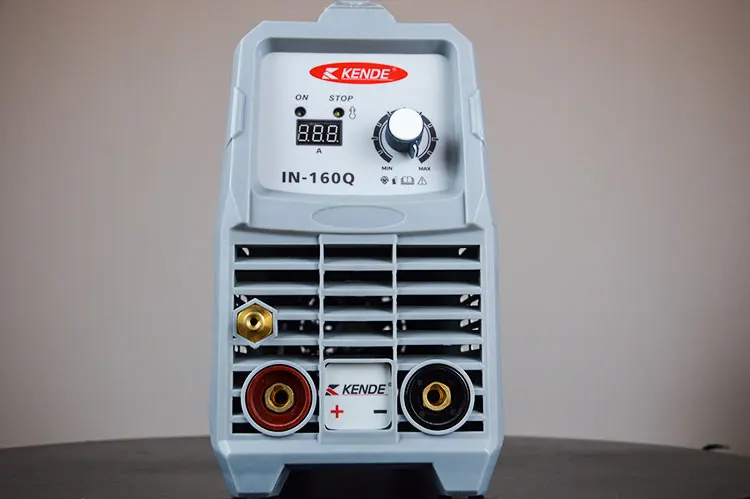

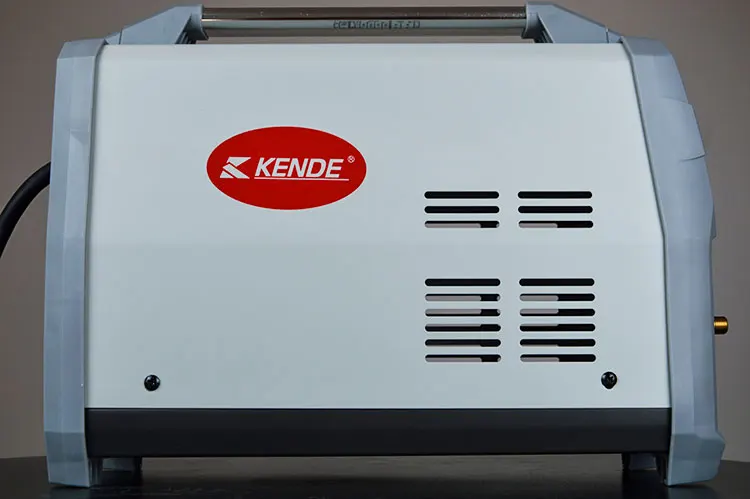

KENDE Portable Inverter ARC MMA STICK LIFT TIG Digital Welder Welding Machine IN 160Q

Product details
Port:NINGBO,SHANGHAI PORT;Brand Name:KENDE welding machine;
Place of Origin:Zhejiang China;Hot start:Easy Arc Initiation;
Anti stick:Anti-stick;Dimension (L x W x H):375*150*285;
Supply Ability:100000 Set/Sets per Month;Packaging Detail:Colorful box,BMC box,honeycomb box,wooden box.;
Rated Output Current:10-160A;Name:IN-160Q welding machine;
Weight:5.6;Model Number:IN 160Q welding machine;
COLOR:Customized ARC TIG Welding Machine;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Duty cycle:60% Duty Cycle Welding Machine;Phase:1P, 110/ 22OV welding machine;
PCB:Single PCB TIG MMA ARC Welder;ARC FORCE:Current Auto Increase;
Welding Process:TIG,Stick;For Material Type:Steel,Mild Steel,Stainless Steel,Cast Iron;
Package Preview:;Inverter Technology:IGBT Inverter ARC TIG MMA Welder;

Technical Characteristics:

  •     Use powerful IGBT switches and advanced inverter control technology.
  •     Use PWM control technology and Constant Current(CC) output control,welding current can be exactly controlled.The          products     belong to a high technology inverter welding machine.
  •     TIG welding process method.Special design of the circuit and structure of these welding power sources,
  •     Excellent arc characteristics,good welding performance and little spatter.
  •     Strong ability of the anti-flucruating of power supply voltage.
  •     High weld quality.Lower heat input,small deformation after welding.
  •     Minimizing,lightness,it can be moved easily,and energy savings uo to 30%.
  •     With auto protection functions of over current and over-heat.
  •     The welding material of the thin,medium and heavy plate can be welded.
  •     Be able to weld all kinds of metal,for example,carbon steel,stainless steel,alloy steel,etc.

With complete accessories:

    TIG torch,electrode holder,earth clamp,welding cable,brush/hammer,protective mask.



KENDE Portable Inverter ARC MMA STICK LIFT TIG Digital Welder Welding Machine is with below data,



Model

Rated

supply

voltage(V)

Supply

frequency(Hz)

Rated

input

capacity(KVA)

Welding

current

range(A)

Rated

duty cycle

Usable Electode(mm)Degrees of  protectionClass of insulation
IN-160Q110/24050/60      5 20-16060%1.6-4.0IP 21SH



KENDE Portable Inverter ARC MMA STICK LIFT TIG Digital Welder Welding Machine Features:

  • MMA/LIFT TIG
  • Input voltage 1ph AC220V±10%
  • Digital control plate
  • High duty cycle
  • Compact and light

Company Information

In order to let you know more about our KENDE, please find and check the attached our more
pictures as well as below:

-Zhejiang Kende was established in 2001,
-Covers 80,000 square meters,
-Production and office building are 120,000 square meters,
-Total 900 employees, including 15 senior engineers, 43 technical staff, 20 salesperson dealing with internationl and domestic
business,
-24 Production Assembly Lines,
-1,500,000pcs products capability per year,
-Sale Amount USD 52 million in 2018,
-One of China’s largest welding equipment manufacturers.

Feed back

KENDE Portable Inverter ARC MMA STICK LIFT TIG Digital Welder Welding Machine is manufacturered by ourselve, such as welding machine cover, silk imprinted and painting and main transformer,
this is why our welding machine quality is good as as well the price is competitive.

And the quality of our products are always got very good reputtion,

Packaging & Shipping

KENDE Portable Inverter ARC MMA STICK LIFT TIG Digital Welder Welding Machine is

based on customized packaging is with colorful box, BMC box, honeycomb and wooden box,

and there are many container per day will be loaded as below pictures.

Certifications

KEND brand is a famous manufacturer for the inverter welding machine, such as MMA welding machine, ARC welder, Aluminium welding machine, TIG AC DC 200P, WSME 200D Inverter MIG welding machine, Inverter TIG welding machine, Inverter plasma cutter welding machine, air compressor built-inside plasma cutter, and MZ surmerged ARC welding machine, inverter battery charger and heater.

Most of our products are got CCC, CE, EMC, SAA and UL, RoHS certificate.

Exhibition

KENDE group always attend to Canton fair twice in April and October per years, and our booth number is keep the same place, 8.1 I34-35 and 8.1 J10-11,Welcome to visit our kend welding machine booth.

and we present various welding machine, such Inverter MMA welding machine,
MIG welding machine, TIG welding machine and plasma cutter welding machine and Submerged arc welding machine, inverter battery charger, and heater

also attend to fair at each local market, this is a good way to support our agent to expand our good reputation about our KENDE brand welding machine.
