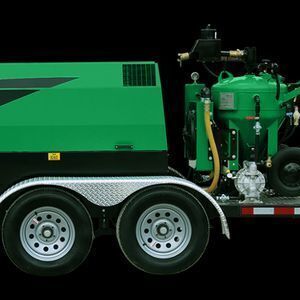

Mobile vehicle-mounted dustless blasting machine for rust removal

Supplier: Qingdao Rovan Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Alice Wang
Price: $3200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Delivery Detail:	Shipped in 0 days after payment;	leaking test:	yes;
Place of Origin:	Shandong China;	After-sales Service Provided:	Video technical support,Engineers available to service machinery overseas;
free spare parts:	yes;	Cleaning Type:	Clean-In-Place (CIP);
Use:	Descaling / Stripping;	Power(W):	Customised;
Packaging Detail:	wooden case,cardboards,poly foam;	trade assurance:	alibaba trade assurance;
service time:	7*24h;	Cleaning Process:	sand/water/glass beads;
Certification:	CE,ISO9001;	Condition:	New;
warranty:	5 years;	Payment Terms:	T/T;
trial run before shipment:	yes;	Dimension(LWH):	13979141016mm;
Material:	Metal / Coil;	Brand Name:	ROVAN-mobile blasting;
wholesale discout:	yes;	Package Preview:	;
pressure test:	yes;	Machine Type:	Sandblaster;
Warranty:	5 years;	operating guide:	yes;
Fuel:	Electric;

DB150

The DB150 holds up to 19 kg of water and 27 kg of abrasive which allows up to ~15 minutes of continuous blast time.

This machine runs perfectly with a 60 CFM air compressor. This machine is ideal for businesses with 1–4 hours of blasting per week. It is completely portable through doorways and staircases.

DB150 Tank Includes:

♦ 1 Cubic foot capacity ♦ 10m blast hose
♦ About 15 minutes blast time per fill ♦ Nozzle head shut off valve
♦ Tank dimensions: 1067×584×533 mm (H×W×D) ♦ Tungsten Carbide nozzle
♦ Weight: about 72kgs ♦ Fill funnel with scree
♦ Requirement for air compressor: ♦ Lifetime warranty on blast pot

4-10bar, 60 CFM, 30-150 PSI

Size after packaging:

900*800*1400mm=1.008CBM, gross weight: 172kg

DB500

The DB500 is perfect for everything from small jobs to larger industrial projects. It is the best choice for commercial use by employees. It holds up to 76 kg of water and 90 kg of abrasive, which allows up to ~1 hours of continuous blast time. The higher capacity means fewer refills for greater productivity. This machine runs perfectly with a 185-375 CFM air compressor.

DB500 Dustless Blasting Machine

• 5 Cubic Foot Capacity
• 60 Minute blast time per fill
• Tank Dimensions: 55"h x 36"w x 40" d
• Weight - 368 lbs
• Operating Pressure: 30-150 PSI

• Requirement for air compressor:

4-10 bar, 185-375 CFM, 30-150 PSI, 0.2-1.0 Mpa,
air consumption: 5.2 m³/min

Size after packaging:

1.1*1.1*1.6m=1.936CBM, net weight: 180kg, gross weight: 230 kg

DB800

The DB800 is perfect for everything from small jobs to larger industrial projects. It is the best choice for commercial use by employees. It holds up to 114 kg of water and 136 kg of abrasive, which allows up to ~90minutes of continuous blast time. The higher capacity means fewer refills for greater productivity. This machine runs perfectly with a 185+ CFM air compressor.

DB800 Blast Tank:

• 8 Cubic Foot Capacity
• 90 Minute blast time per fill
• Tank Dimensions: 64"h x 36"w x 40" d
• Weight - 427 lbs
• Operating Pressure: 30-150 PSI

• Requirement for air compressor:

7-10bar, 185 CFM, 30-150 PSI,
0.2-1.0 Mpa, air consumption: 10.6 m³/min

Includes:

• 15 m Blast Hose(32mm diameter)
• Deadman Activator Valve
• Boron carbide Nozzle(10mm)
• Fill Funnel with Screen
• Lifetime Warranty on Blast Pot

Size after packaging:

1.0*0.95*1.75m=1.6625CBM, net weight: 194kg, gross weight: 250 kg

working principle

Pressure-type sandblasting system is the water, abrasive storage in the sand tank, compressed air through the air regulator and the total control of the ball into the sand tank, so that the formation of pressure inside the closed sand tank. Open the control of the gun switch, water, abrasive, compressed air through the bottom of the flange after mixing into the sand pipe, and then sprayed from the nozzle high-speed, fired processing surface.

Adjust the amount of sand control valve can change the size of sand.
After the abrasive is used up, close the control of the gun switch, turn off the gas control valve, open the sand tank on the exhaust ball valve, the tank of compressed air exhausted, from the new water, plus abrasive recycling.

main advantages

1. Wet sandblasting machine, cleaning efficiency, large volume.
2. Applicable to a variety of materials and grain size of the abrasive
3. Liquid sandblasting high efficiency, less abrasive consumption, can improve the surface finish of the workpiece, improve the surface strength, and fundamentally changed the environmental pollution
4.The surface of the parts is not contaminated and the abrasive will not react chemically with the part material;

5.Simple operation, easy maintenance; less wearing parts, low failure rate.

technical parameters

model	capacity (cubic foot)	lasting time (min)	tank dimension(HWD)	weight(kg)	operating pressure
DB150	1	15	1067584533	72	30-150PSI
DB225	2	30	1397660863	120	30-150PSI
DB500	5	60	13979141016	167	30-150PSI
DB800	8	90	16269141016	194	30-150PSI
DB1500	15	120-150	198112451245	380	30-150PSI
DB3000	30	240-360	248912451245	544	30-150PSI

machine images

machine effect
